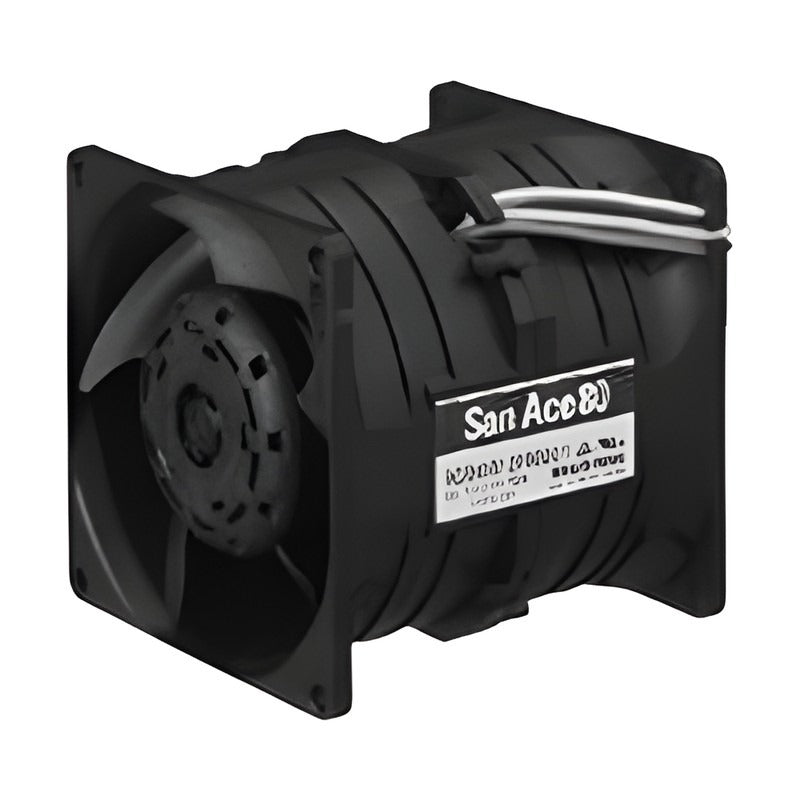

Sanyo Denki San Ace 80 9CRH Counter Rotating Fan 80x80x80 mm

Sanyo Denki San Ace 80 9CRH Counter Rotating Fan 80x80x80 mm

The San Ace 80 9CRH type is a 80x80x80 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Up to 5.7 m3/min max. airflow and 1950 Pa max. static pressure
  • Rated voltage 12 / 48 VDC (2 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

Specifications

Size 80x80x80 mm
Series / type San Ace 80 9CRH type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 48 VDC
Mass 430 g
Max. airflow 5.7 m3/min (201 CFM)
Max. static pressure 1950 Pa (7.80 inH2O)
SPL 82 dB(A)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 237-238
9CRH0812P8G001 Voltage: 12 VDC (10.8 to 12.6 V) | Speed (inlet/outlet): 15400 / 15200 min-1 | Current / input: 10 A / 120 W
9CRH0848P8G001 Voltage: 48 VDC (40.8 to 60.0 V) | Speed (inlet/outlet): 15400 / 15200 min-1 | Current / input: 2.5 A / 120 W
DC Counter Rotating FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 9CRH Counter Rotating Fan 80x80x80 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (2)

9CRH0812P8G001, 9CRH0848P8G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRH0812P8G001Voltage: 12 VDC (10.8 to 12.6 V) | Speed (inlet/outlet): 15400 / 15200 min-1 | Current / input: 10 A / 120 W
9CRH0848P8G001Voltage: 48 VDC (40.8 to 60.0 V) | Speed (inlet/outlet): 15400 / 15200 min-1 | Current / input: 2.5 A / 120 W
