Sanyo Denki San Ace 80 9CRHA Counter Rotating Fan 80x80x80 mm

Sanyo Denki San Ace 80 9CRHA Counter Rotating Fan 80x80x80 mm

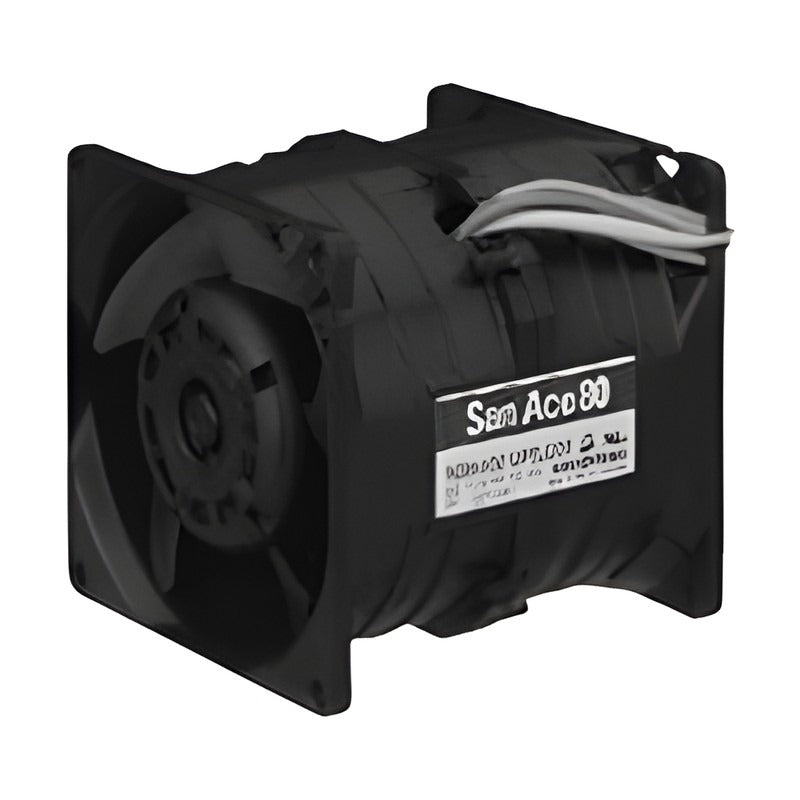

The San Ace 80 9CRHA type is a 80x80x80 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Up to 5.65 m3/min max. airflow and 2700 Pa max. static pressure
  • Rated voltage 12 / 48 VDC (2 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

Specifications

Size 80x80x80 mm
Series / type San Ace 80 9CRHA type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 48 VDC
Mass 430 g
Max. airflow 5.65 m3/min (199 CFM)
Max. static pressure 2700 Pa (10.8 inH2O)
SPL 85 dB(A)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 235-236
9CRHA0812P8J001 Voltage: 12 VDC (10.8 to 12.6 V) | Speed (inlet/outlet): 18500 / 19300 min-1 | Current / input: 12.0 A / 144 W
9CRHA0848P8J001 Voltage: 48 VDC (40.8 to 60.0 V) | Speed (inlet/outlet): 18500 / 19300 min-1 | Current / input: 2.8 A / 135 W
DC Counter Rotating FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 9CRHA Counter Rotating Fan 80x80x80 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (2)

9CRHA0812P8J001, 9CRHA0848P8J001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRHA0812P8J001Voltage: 12 VDC (10.8 to 12.6 V) | Speed (inlet/outlet): 18500 / 19300 min-1 | Current / input: 12.0 A / 144 W
9CRHA0848P8J001Voltage: 48 VDC (40.8 to 60.0 V) | Speed (inlet/outlet): 18500 / 19300 min-1 | Current / input: 2.8 A / 135 W
