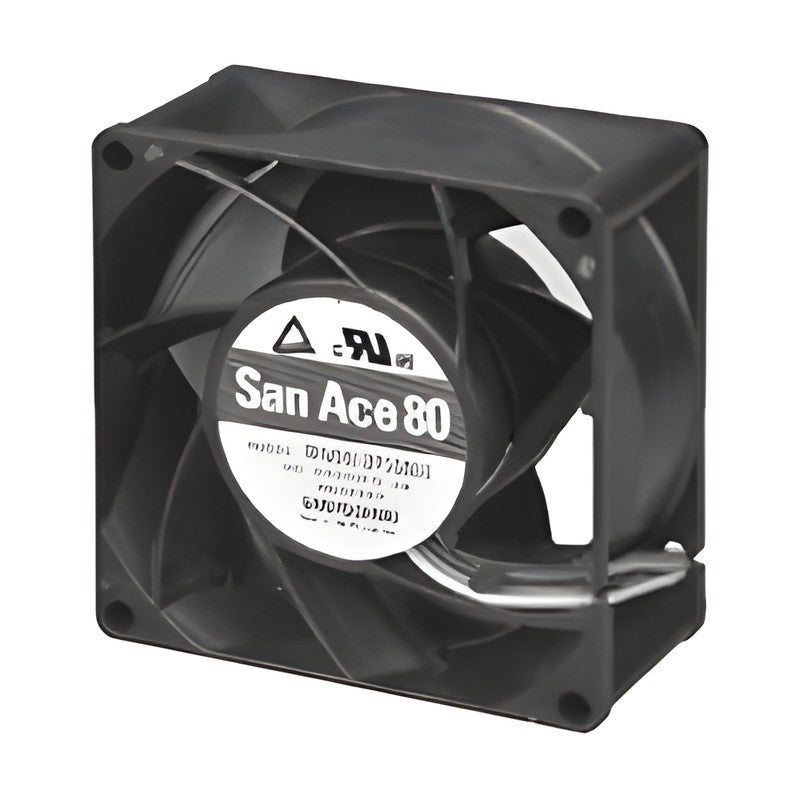

Sanyo Denki San Ace 80 9HV DC Fan 80x80x38 mm

Sanyo Denki San Ace 80 9HV DC Fan 80x80x38 mm

The San Ace 80 9HV type is an 80x80x38 mm DC axial fan rated at 12, 24, 48 VDC, delivering up to 3.7 m3/min airflow and 1000 Pa static pressure.

Key features

  • 80x80x38 mm DC axial fan, rated voltage 12, 24, 48 VDC
  • Rated speed 12000 to 14900 min-1; max. airflow 2.9 to 3.7 m3/min
  • PWM speed control (25 kHz) with pulse sensor on PWM models; sensor and rib options per model index
  • Locked rotor burnout protection and reverse polarity protection
  • Plastic frame (UL 94V-0) and impeller (UL 94V-0); mass 230 g
  • Options: finger guards 109-049E/109-049H, resin guard 109-1002G, resin filter kits 109-1002F13 to F40

Specifications

Frame size 80x80x38 mm
Fan type DC axial fan, 9HV type
Rated voltage 12, 24, 48 VDC
Operating temperature -10 to +70 °C / -20 to +70 °C
Expected life (L10) 40000/60°C
Mass 230 g
Material Frame plastic (UL 94V-0), impeller plastic (UL 94V-0)
Motor protection Locked rotor burnout, reverse polarity
Dielectric strength 500 VAC 50/60 Hz, 1 min
Source Sanyo Denki San Ace General Catalog C1152B001, p. 118-120, Model Index p. 645-663
9HV0812P1G601 Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0812P1H601 Voltage: 12 VDC | Speed: 13500 min-1 | Airflow: 3.35 m3/min | Static pressure: 870 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0812P1S601 Voltage: 12 VDC | Speed: 12000 min-1 | Airflow: 2.9 m3/min | Static pressure: 780 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0824P1G003 Voltage: 24 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0848P1G001 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0812G1002 Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: Yes
9HV0812G1001 Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: Yes
9HV0812P1G6011 Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0812G10021 Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: No
9HV0812G10011 Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: No
9HV0812P1H6011 Voltage: 12 VDC | Speed: 13500 min-1 | Airflow: 3.35 m3/min | Static pressure: 870 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0812P1S6011 Voltage: 12 VDC | Speed: 12000 min-1 | Airflow: 2.9 m3/min | Static pressure: 780 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0824G1D001 Voltage: 24 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Lock sensor | Ribs: Yes
9HV0824P1G0011 Voltage: 24 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0848G1002 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: Yes
9HV0848G1001 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: Yes
9HV0848G1D001 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Lock sensor | Ribs: Yes
9HV0848P1G0011 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0848G10021 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: No
9HV0848G10011 Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: No
DC Axial FansSanyo Denki
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 9HV DC Fan 80x80x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (20)

9HV0812P1G601, 9HV0812P1H601, 9HV0812P1S601, 9HV0824P1G003, 9HV0848P1G001, 9HV0812G1002, 9HV0812G1001, 9HV0812P1G6011, 9HV0812G10021, 9HV0812G10011 + 10 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HV0812P1G601Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0812P1H601Voltage: 12 VDC | Speed: 13500 min-1 | Airflow: 3.35 m3/min | Static pressure: 870 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0812P1S601Voltage: 12 VDC | Speed: 12000 min-1 | Airflow: 2.9 m3/min | Static pressure: 780 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0824P1G003Voltage: 24 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0848P1G001Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0812G1002Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: Yes
9HV0812G1001Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: Yes
9HV0812P1G6011Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0812G10021Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: No
9HV0812G10011Voltage: 12 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: No
9HV0812P1H6011Voltage: 12 VDC | Speed: 13500 min-1 | Airflow: 3.35 m3/min | Static pressure: 870 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0812P1S6011Voltage: 12 VDC | Speed: 12000 min-1 | Airflow: 2.9 m3/min | Static pressure: 780 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0824G1D001Voltage: 24 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Lock sensor | Ribs: Yes
9HV0824P1G0011Voltage: 24 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0848G1002Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: Yes
9HV0848G1001Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: Yes
9HV0848G1D001Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Lock sensor | Ribs: Yes
9HV0848P1G0011Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: PWM + pulse sensor | Ribs: No
9HV0848G10021Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: No sensor | Ribs: No
9HV0848G10011Voltage: 48 VDC | Speed: 14900 min-1 | Airflow: 3.7 m3/min | Static pressure: 1000 Pa | Sensor: Pulse sensor | Ribs: No
