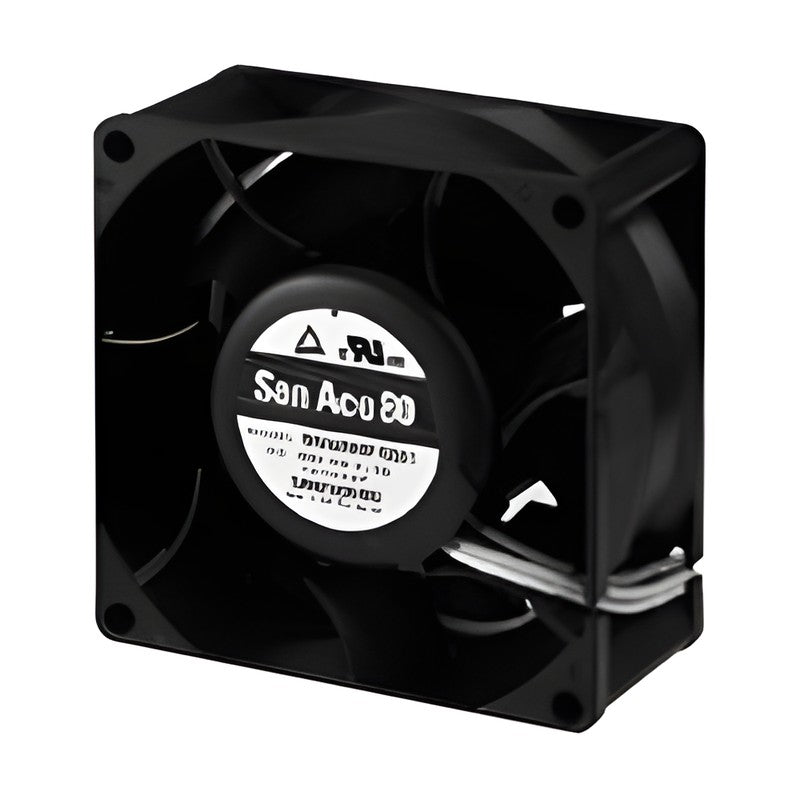

Sanyo Denki San Ace 80 9HVA DC Fan 80x80x38 mm

The San Ace 80 9HVA type is an 80x80x38 mm DC axial fan rated at 48 VDC, delivering up to 3.75 m3/min airflow and 1250 Pa static pressure.

Key features

80x80x38 mm DC axial fan, rated voltage 48 VDC
Rated speed 16100 to 16100 min-1; max. airflow 3.75 to 3.75 m3/min
PWM speed control (25 kHz) with pulse sensor on PWM models; sensor and rib options per model index
Locked rotor burnout protection and reverse polarity protection
Plastic frame (UL 94V-0) and impeller (UL 94V-0); mass 220 g
Options: finger guards 109-049E/109-049H, resin guard 109-1002G, resin filter kits 109-1002F13 to F40

Specifications

Frame size	80x80x38 mm
Fan type	DC axial fan, 9HVA type
Rated voltage	48 VDC
Operating temperature	-20 to +70 °C
Expected life (L10)	40000/60°C
Mass	220 g
Material	Frame plastic (UL 94V-0), impeller plastic (UL 94V-0)
Motor protection	Locked rotor burnout, reverse polarity
Dielectric strength	500 VAC 50/60 Hz, 1 min
Speed	16100 min-1
Airflow	3.75 m3/min
Source	Sanyo Denki San Ace General Catalog C1152B001, p. 116-117, Model Index p. 645-663

9HVA0848P1G601		Ribs: Yes
9HVA0848P1G6011		Ribs: No

DC Axial FansSanyo Denki

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 9HVA DC Fan 80x80x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (2)

9HVA0848P1G601, 9HVA0848P1G6011
