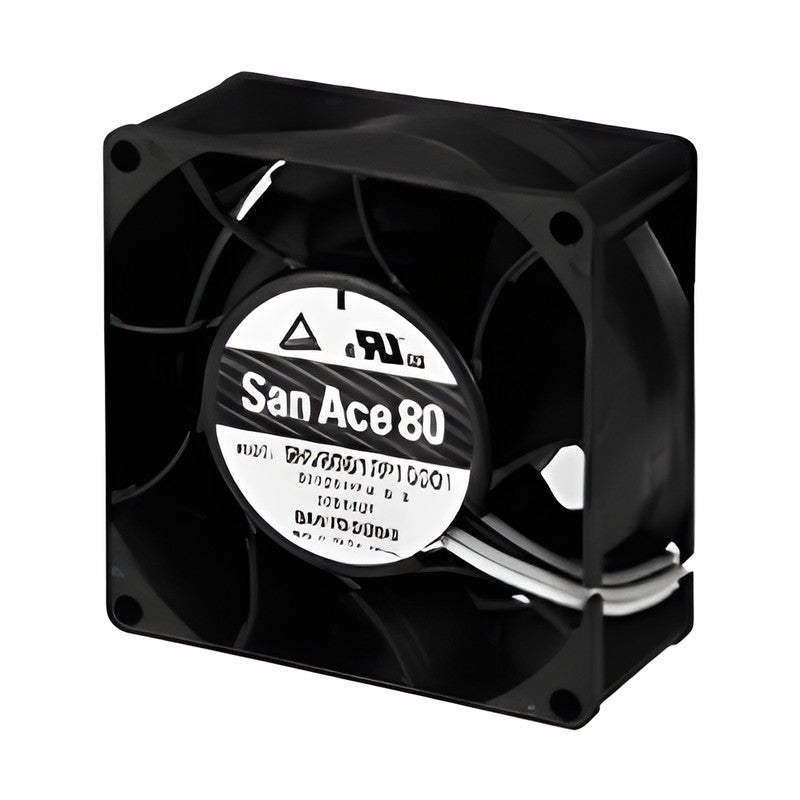

Sanyo Denki San Ace 80 9HVB DC Fan 80x80x38 mm

Sanyo Denki San Ace 80 9HVB DC Fan 80x80x38 mm

The San Ace 80 9HVB type is an 80x80x38 mm DC axial fan rated at 12 VDC, delivering up to 4 m3/min airflow and 1600 Pa static pressure.

Key features

  • 80x80x38 mm DC axial fan, rated voltage 12 VDC
  • Rated speed 16800 to 18300 min-1; max. airflow 3.7 to 4 m3/min
  • PWM speed control (25 kHz) with pulse sensor on PWM models; sensor and rib options per model index
  • Locked rotor burnout protection and reverse polarity protection
  • Plastic frame (UL 94V-0) and impeller (UL 94V-1); mass 230 g
  • Options: finger guards 109-049E/109-049H, resin guard 109-1002G, resin filter kits 109-1002F13 to F40

Specifications

Frame size 80x80x38 mm
Fan type DC axial fan, 9HVB type
Rated voltage 12 VDC
Operating temperature -20 to +70 °C
Expected life (L10) 40000/60°C
Mass 230 g
Material Frame plastic (UL 94V-0), impeller plastic (UL 94V-1)
Motor protection Locked rotor burnout, reverse polarity
Dielectric strength 500 VAC 50/60 Hz, 1 min
Sensor PWM + pulse sensor
Source Sanyo Denki San Ace General Catalog C1152B001, p. 114-115, Model Index p. 645-663
9HVB0812P1G001 Speed: 18300 min-1 | Airflow: 4.0 m3/min | Static pressure: 1600 Pa | Ribs: Yes
9HVB0812P1S001 Speed: 16800 min-1 | Airflow: 3.7 m3/min | Static pressure: 1400 Pa | Ribs: Yes
9HVB0812P1G0011 Speed: 18300 min-1 | Airflow: 4.0 m3/min | Static pressure: 1600 Pa | Ribs: No
9HVB0812P1S0011 Speed: 16800 min-1 | Airflow: 3.7 m3/min | Static pressure: 1400 Pa | Ribs: No
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80 9HVB DC Fan 80x80x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9HVB0812P1G001, 9HVB0812P1S001, 9HVB0812P1G0011, 9HVB0812P1S0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HVB0812P1G001Speed: 18300 min-1 | Airflow: 4.0 m3/min | Static pressure: 1600 Pa | Ribs: Yes
9HVB0812P1S001Speed: 16800 min-1 | Airflow: 3.7 m3/min | Static pressure: 1400 Pa | Ribs: Yes
9HVB0812P1G0011Speed: 18300 min-1 | Airflow: 4.0 m3/min | Static pressure: 1600 Pa | Ribs: No
9HVB0812P1S0011Speed: 16800 min-1 | Airflow: 3.7 m3/min | Static pressure: 1400 Pa | Ribs: No
