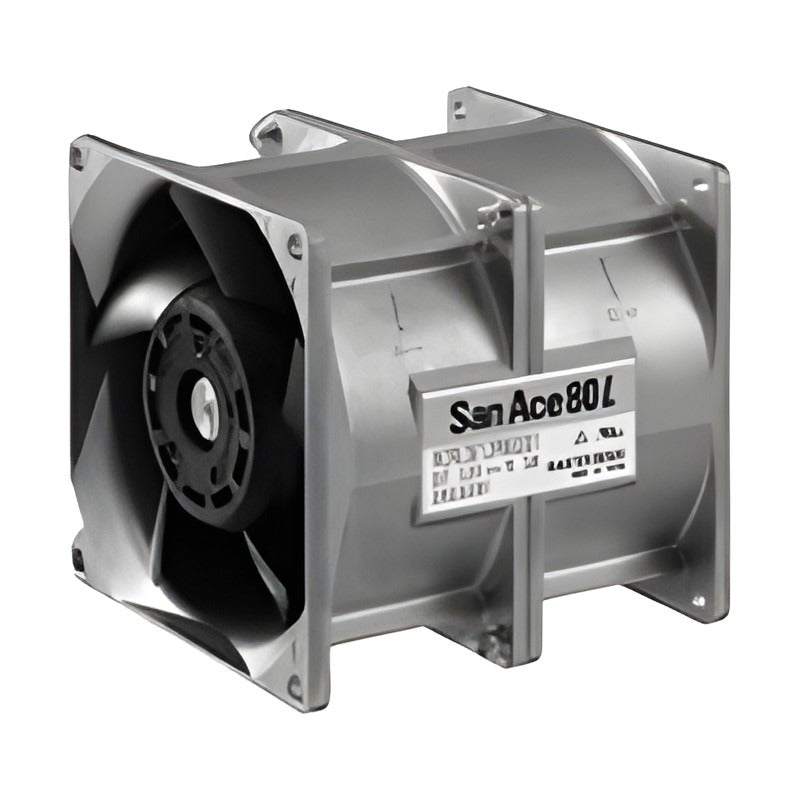

Sanyo Denki San Ace 80L 9CRL Counter Rotating Fan 80x80x80 mm

Long life 80 mm counter rotating DC fan with PWM control, 4.5 m3/min airflow and 1150 Pa static pressure.

Key features

Long life design, L10 expected life up to 130,000 h at 60 C
Rated voltage 12 VDC, frame size 80x80x80 mm
Rated speed 12000/11300 min-1 (in/out)
Locked rotor burnout protection and reverse polarity protection
PWM speed control input (25 kHz) with pulse sensor output

Specifications

Frame size	80x80x80 mm
Fan type	Counter rotating fan, long life
Material	Aluminum frame, UL 94V-1 plastic impeller
Operating temperature	-20 to +70 C (non-condensing)
Storage temperature	-30 to +70 C (non-condensing)
Motor protection	Locked rotor burnout, reverse polarity
Mass	490 g
Expected life	130,000 h at 60 C
Feature	Pulse sensor, PWM
Operating voltage	10.8 to 13.2 V
Source	Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 331-332

9CRL0812P8G001

Voltage: 12 VDC | Speed: 12000/11300 min-1 (in/out) | Airflow: 4.5 m3/min | Static pressure: 1150 Pa

DC Counter Rotating FansSanyo Denki

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80L 9CRL Counter Rotating Fan 80x80x80 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (1)

9CRL0812P8G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
