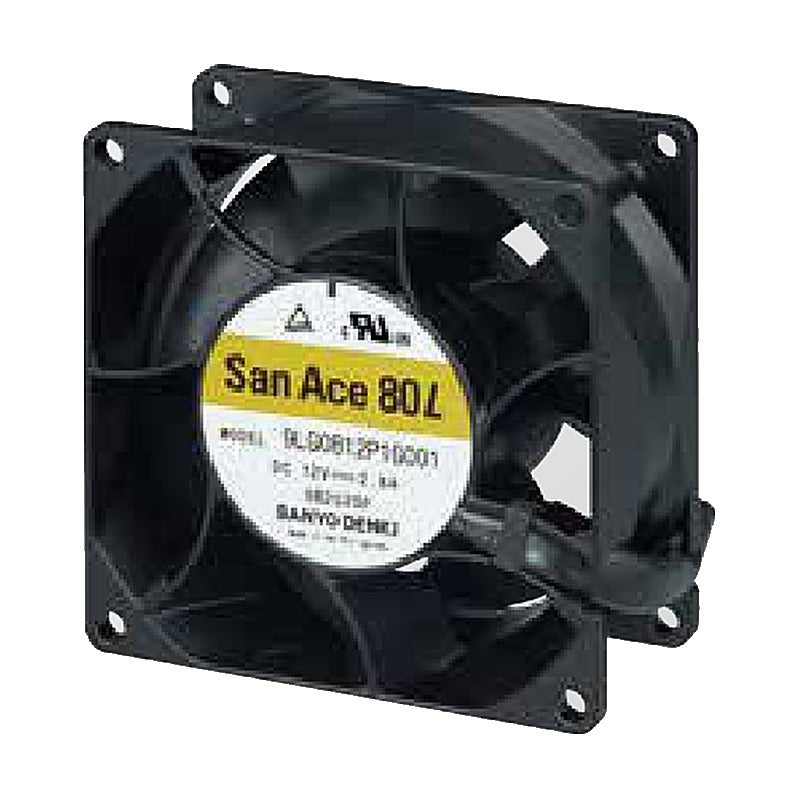

Sanyo Denki San Ace 80L 9LG Long Life DC Fan 80x80x38 mm

Sanyo Denki San Ace 80L 9LG Long Life DC Fan 80x80x38 mm

High static pressure 80 mm long life DC fan with PWM control, reaching 1260 Pa and 3.42 m3/min.

Key features

  • Long life design, L10 expected life up to 100,000 h at 60 C
  • Rated voltage 12/24/48 VDC, frame size 80x80x38 mm
  • Rated speed range 12700-15200 min-1
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control input (25 kHz) with pulse sensor output

Specifications

Frame size 80x80x38 mm
Fan type Axial fan, long life
Material Aluminum (black coating) frame, UL 94V-1 plastic impeller
Operating temperature -20 to +70 C (non-condensing)
Storage temperature -30 to +70 C (non-condensing)
Motor protection Locked rotor burnout, reverse polarity
Mass 240 g
Expected life 100,000 h at 60 C
Feature Pulse sensor, PWM
Source Sanyo Denki San Ace 80L 9LG leaflet C1151B001 '25.6, p. 1-4
9LG0812P1G001 Voltage: 12 VDC | Speed: 15200 min-1 | Airflow: 3.42 m3/min | Static pressure: 1260 Pa | Rated current: 2.8 A | SPL: 71 dB(A)
9LG0812P1H001 Voltage: 12 VDC | Speed: 12700 min-1 | Airflow: 2.86 m3/min | Static pressure: 880 Pa | Rated current: 1.8 A | SPL: 68 dB(A)
9LG0824P1G001 Voltage: 24 VDC | Speed: 15200 min-1 | Airflow: 3.42 m3/min | Static pressure: 1260 Pa | Rated current: 1.4 A | SPL: 71 dB(A)
9LG0824P1H001 Voltage: 24 VDC | Speed: 12700 min-1 | Airflow: 2.86 m3/min | Static pressure: 880 Pa | Rated current: 0.90 A | SPL: 68 dB(A)
9LG0848P1G001 Voltage: 48 VDC | Speed: 15200 min-1 | Airflow: 3.42 m3/min | Static pressure: 1260 Pa | Rated current: 0.70 A | SPL: 71 dB(A)
9LG0848P1H001 Voltage: 48 VDC | Speed: 12700 min-1 | Airflow: 2.86 m3/min | Static pressure: 880 Pa | Rated current: 0.45 A | SPL: 68 dB(A)
DC Axial FansSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80L 9LG Long Life DC Fan 80x80x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (6)

9LG0812P1G001, 9LG0812P1H001, 9LG0824P1G001, 9LG0824P1H001, 9LG0848P1G001, 9LG0848P1H001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9LG0812P1G001Voltage: 12 VDC | Speed: 15200 min-1 | Airflow: 3.42 m3/min | Static pressure: 1260 Pa | Rated current: 2.8 A | SPL: 71 dB(A)
9LG0812P1H001Voltage: 12 VDC | Speed: 12700 min-1 | Airflow: 2.86 m3/min | Static pressure: 880 Pa | Rated current: 1.8 A | SPL: 68 dB(A)
9LG0824P1G001Voltage: 24 VDC | Speed: 15200 min-1 | Airflow: 3.42 m3/min | Static pressure: 1260 Pa | Rated current: 1.4 A | SPL: 71 dB(A)
9LG0824P1H001Voltage: 24 VDC | Speed: 12700 min-1 | Airflow: 2.86 m3/min | Static pressure: 880 Pa | Rated current: 0.90 A | SPL: 68 dB(A)
9LG0848P1G001Voltage: 48 VDC | Speed: 15200 min-1 | Airflow: 3.42 m3/min | Static pressure: 1260 Pa | Rated current: 0.70 A | SPL: 71 dB(A)
9LG0848P1H001Voltage: 48 VDC | Speed: 12700 min-1 | Airflow: 2.86 m3/min | Static pressure: 880 Pa | Rated current: 0.45 A | SPL: 68 dB(A)
