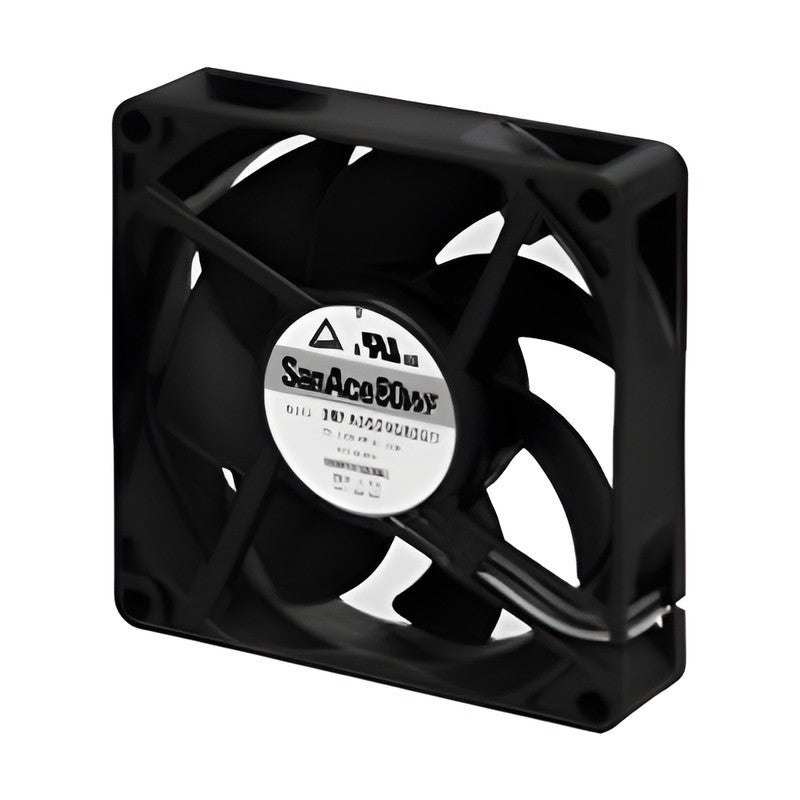

Sanyo Denki San Ace 80WF 9WFA Oil Proof Fan (80x80x20 mm)

Sanyo Denki San Ace 80WF 9WFA Oil Proof Fan (80x80x20 mm)

San Ace 80WF 9WFA oil proof DC fan, 80x80x20 mm, for cooling equipment operating in oil-mist environments such as machine tools.

Key features

  • Usable in environments where cutting oil creates oil mist (evaluate with the oil to be used)
  • Rated voltage 24 VDC; 1 model(s) in the catalogue specification table
  • Max. airflow up to 1.44 m3/min, max. static pressure up to 105 Pa
  • Motor protection: locked rotor burnout protection, reverse polarity protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 80x80x20 mm
Fan type DC axial fan, oil proof
Voltage 24 VDC
Static pressure 105 Pa
SPL 48 dB(A)
Operating voltage range 15 to 27.6 VDC
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Mass 105 g
Material Frame: Plastic (UL 94V-0), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection, Reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 462-463; Model Index p. 660
9WFA0824G6001 Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: Pulse sensor, ribs
9WFA0824G6002 Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: No sensor, ribs (option)
9WFA0824G6D001 Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: Lock sensor, ribs (option)
9WFA0824P6G001 Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: PWM, pulse sensor, ribs (option)
DC Axial FansSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 80WF 9WFA Oil Proof Fan (80x80x20 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (4)

9WFA0824G6001, 9WFA0824G6002, 9WFA0824G6D001, 9WFA0824P6G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9WFA0824G6001Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: Pulse sensor, ribs
9WFA0824G6002Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: No sensor, ribs (option)
9WFA0824G6D001Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: Lock sensor, ribs (option)
9WFA0824P6G001Speed: 6000 min-1 | Airflow: 1.44 m3/min | Feature: PWM, pulse sensor, ribs (option)
