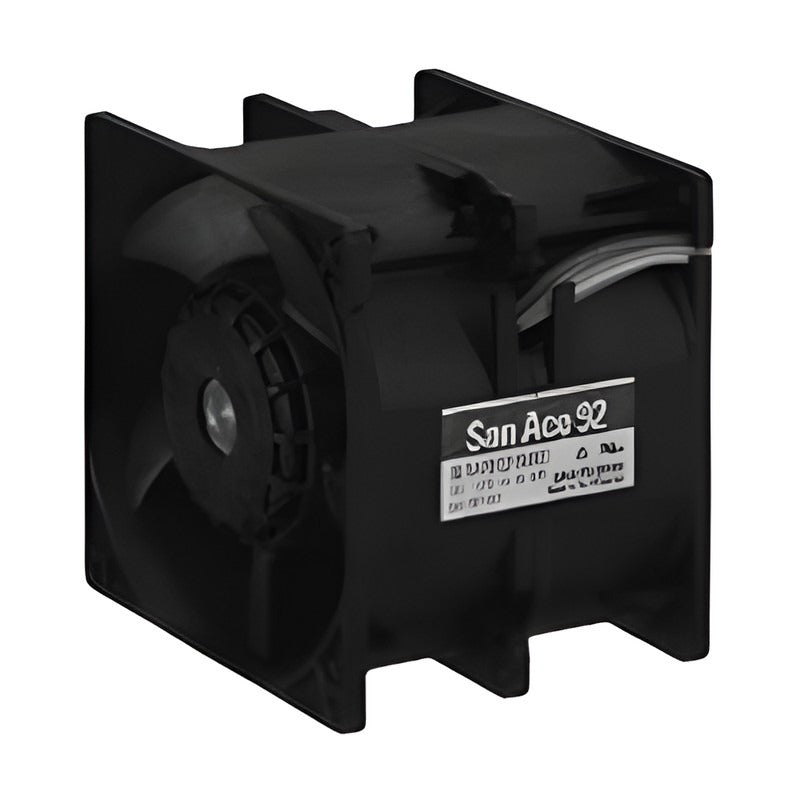

Sanyo Denki San Ace 92 9CRA Counter Rotating Fan 92x92x76 mm

Sanyo Denki San Ace 92 9CRA Counter Rotating Fan 92x92x76 mm

The San Ace 92 9CRA type is a 92x92x76 mm DC counter rotating fan that pairs two contra-rotating impellers for high airflow and high static pressure.

Key features

  • Up to 5.8 m3/min max. airflow and 1650 Pa max. static pressure
  • Rated voltage 12 / 48 VDC (2 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 92x92x76 mm
Series / type San Ace 92 9CRA type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 48 VDC
Mass 510 g
Max. airflow 5.8 m3/min (205 CFM)
Max. static pressure 1650 Pa (6.63 inH2O)
SPL 81 dB(A)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 244-245
9CRA0912P0G001 Voltage: 12 VDC (10.2 to 13.2 V) | Speed (inlet/outlet): 13300 / 12200 min-1 | Current / input: 9.0 A / 108.0 W
9CRA0948P0G601 Voltage: 48 VDC (36 to 60 V) | Speed (inlet/outlet): 13300 / 12200 min-1 | Current / input: 2.2 A / 105.6 W
109X8712PT0S016 Legacy code (deleted / not in current catalogue) | Type: CPU cooler (heat sink + DC fan) | Size: 78.7x88.9 mm | Voltage: 12 VDC | Speed: 6300 min-1
109X9112PT0H016 Legacy code (deleted / not in current catalogue) | Type: CPU cooler (heat sink + DC fan) | Size: dia. 90 mm | Voltage: 12 VDC | Speed: 3900 min-1
109X9212PT0H016 Legacy code (deleted / not in current catalogue) | Type: CPU cooler (heat sink + DC fan) | Size: dia. 90 mm | Voltage: 12 VDC | Speed: 3650 min-1
DC Counter Rotating FansSanyo Denki
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 9CRA Counter Rotating Fan 92x92x76 mm

Brand Sanyo Denki·DC Counter Rotating Fans

Available part numbers (5)

9CRA0912P0G001, 9CRA0948P0G601, 109X8712PT0S016, 109X9112PT0H016, 109X9212PT0H016

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CRA0912P0G001Voltage: 12 VDC (10.2 to 13.2 V) | Speed (inlet/outlet): 13300 / 12200 min-1 | Current / input: 9.0 A / 108.0 W
9CRA0948P0G601Voltage: 48 VDC (36 to 60 V) | Speed (inlet/outlet): 13300 / 12200 min-1 | Current / input: 2.2 A / 105.6 W
109X8712PT0S016Legacy code (deleted / not in current catalogue) | Type: CPU cooler (heat sink + DC fan) | Size: 78.7x88.9 mm | Voltage: 12 VDC | Speed: 6300 min-1
109X9112PT0H016Legacy code (deleted / not in current catalogue) | Type: CPU cooler (heat sink + DC fan) | Size: dia. 90 mm | Voltage: 12 VDC | Speed: 3900 min-1
109X9212PT0H016Legacy code (deleted / not in current catalogue) | Type: CPU cooler (heat sink + DC fan) | Size: dia. 90 mm | Voltage: 12 VDC | Speed: 3650 min-1
