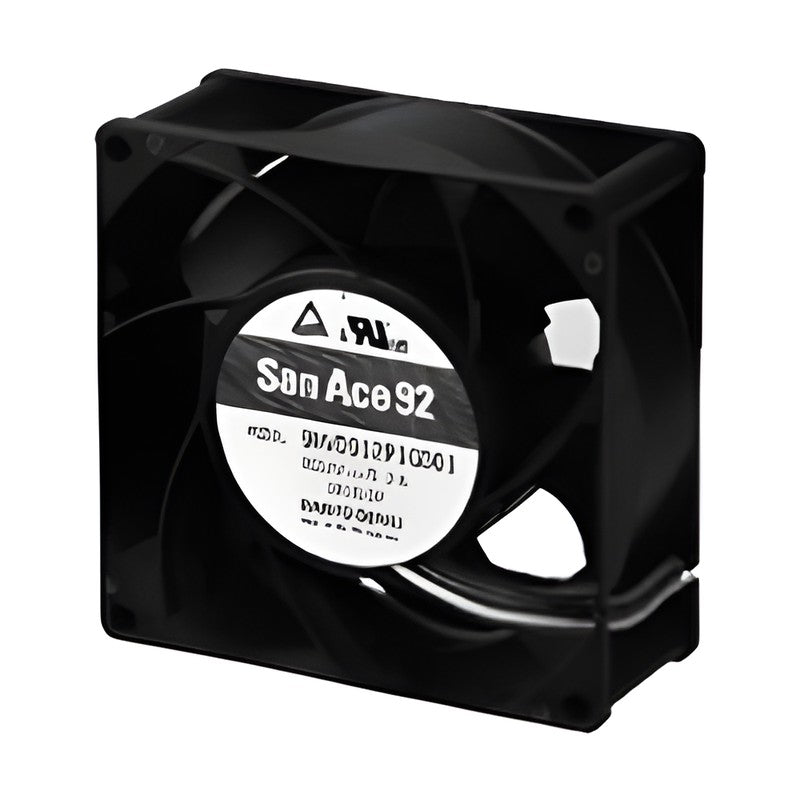

Sanyo Denki San Ace 92 9HV DC Fan 92x92x38 mm

Sanyo Denki San Ace 92 9HV DC Fan 92x92x38 mm

The San Ace 92 9HV type is a 92x92x38 mm DC axial fan rated at 12, 24, 48 VDC, delivering up to 5.1 m3/min airflow and 1100 Pa static pressure.

Key features

  • 92x92x38 mm DC axial fan, rated voltage 12, 24, 48 VDC
  • Rated speed 14900 to 14900 min-1; max. airflow 5.1 to 5.1 m3/min
  • PWM speed control (25 kHz) with pulse sensor on PWM models; sensor and rib options per model index
  • Locked rotor burnout protection and reverse polarity protection
  • Plastic frame (UL 94V-0) and impeller (UL 94V-1); mass 250 g
  • Options: finger guards 109-099E/109-099H, resin guard 109-1001G, resin filter kits 109-1001F13 to F40

Specifications

Frame size 92x92x38 mm
Fan type DC axial fan, 9HV type
Rated voltage 12, 24, 48 VDC
Operating temperature -20 to +70 °C
Expected life (L10) 40000/60°C
Mass 250 g
Material Frame plastic (UL 94V-0), impeller plastic (UL 94V-1)
Motor protection Locked rotor burnout, reverse polarity
Dielectric strength 500 VAC 50/60 Hz, 1 min
Speed 14900 min-1
Airflow 5.1 m3/min
Source Sanyo Denki San Ace General Catalog C1152B001, p. 146-148, Model Index p. 645-663
9HV0912P1G001 Voltage: 12 VDC | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0924P1G001 Voltage: 24 VDC | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0948P1G001 Voltage: 48 VDC | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0912P1G0011 Voltage: 12 VDC | Sensor: PWM + pulse sensor | Ribs: No
9HV0924G1D001 Voltage: 24 VDC | Sensor: Lock sensor | Ribs: Yes
9HV0924P1G0011 Voltage: 24 VDC | Sensor: PWM + pulse sensor | Ribs: No
9HV0948P1G0011 Voltage: 48 VDC | Sensor: PWM + pulse sensor | Ribs: No
DC Axial FansSanyo Denki
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92 9HV DC Fan 92x92x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (7)

9HV0912P1G001, 9HV0924P1G001, 9HV0948P1G001, 9HV0912P1G0011, 9HV0924G1D001, 9HV0924P1G0011, 9HV0948P1G0011

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9HV0912P1G001Voltage: 12 VDC | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0924P1G001Voltage: 24 VDC | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0948P1G001Voltage: 48 VDC | Sensor: PWM + pulse sensor | Ribs: Yes
9HV0912P1G0011Voltage: 12 VDC | Sensor: PWM + pulse sensor | Ribs: No
9HV0924G1D001Voltage: 24 VDC | Sensor: Lock sensor | Ribs: Yes
9HV0924P1G0011Voltage: 24 VDC | Sensor: PWM + pulse sensor | Ribs: No
9HV0948P1G0011Voltage: 48 VDC | Sensor: PWM + pulse sensor | Ribs: No
