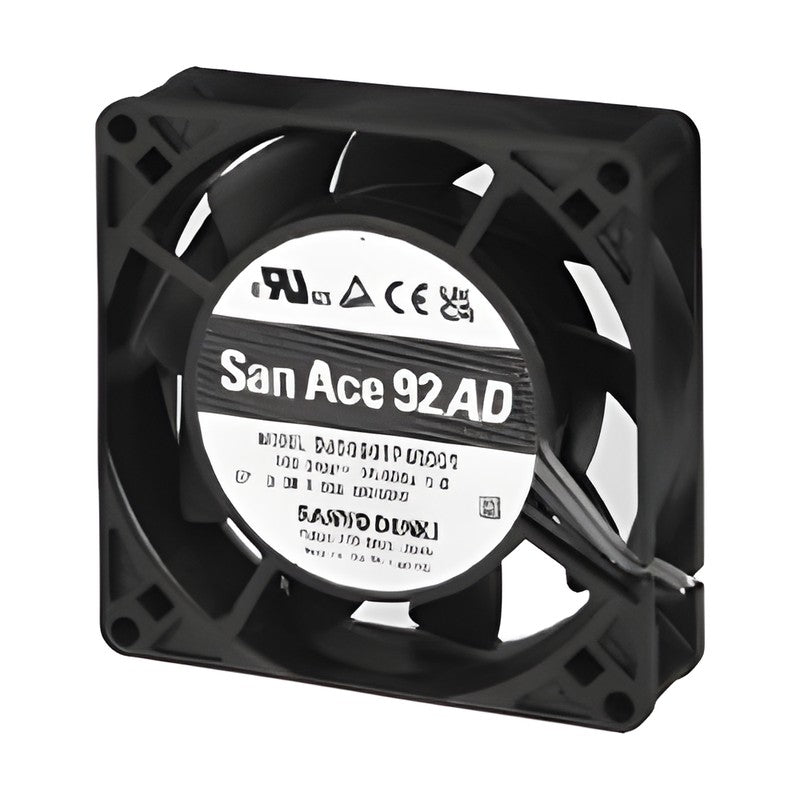

Sanyo Denki San Ace 92AD 9AD ACDC Fan (92x92x25 mm)

Sanyo Denki San Ace 92AD 9AD ACDC Fan (92x92x25 mm)

San Ace 92AD 9AD ACDC fan, 92x92x25 mm, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 9 model(s) in the catalogue specification table
  • Max. airflow up to 1.34 m3/min, max. static pressure up to 76 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 92x92x25 mm
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +70 °C
Expected life (L10) 60000 h at 60 °C
Mass 160 g
Material Frame: Plastic (UL 94V-0), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 494-497; Model Index p. 664-665
9AD0901G4002 Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: No sensor, ribs
9AD0901H4002 Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: No sensor, ribs
9AD0901M4002 Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: No sensor, ribs
9AD0901L4002 Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: No sensor, ribs
9AD0901G4H001 Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: Low-speed sensor, ribs
9AD0901H4H001 Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: Low-speed sensor, ribs
9AD0901M4H001 Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, ribs
9AD0901L4H001 Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: Low-speed sensor, ribs
9AD0901P4G001 Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: PWM, pulse sensor, ribs
9AD0901G40021 Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: No sensor, no ribs (option)
9AD0901G4H0011 Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901P4G0011 Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: PWM, pulse sensor, no ribs (option)
9AD0901H40021 Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: No sensor, no ribs (option)
9AD0901H4H0011 Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901L40021 Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: No sensor, no ribs (option)
9AD0901L4H0011 Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901M40021 Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: No sensor, no ribs (option)
9AD0901M4H0011 Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, no ribs (option)
ACDC FansSanyo Denki
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92AD 9AD ACDC Fan (92x92x25 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (18)

9AD0901G4002, 9AD0901H4002, 9AD0901M4002, 9AD0901L4002, 9AD0901G4H001, 9AD0901H4H001, 9AD0901M4H001, 9AD0901L4H001, 9AD0901P4G001, 9AD0901G40021 + 8 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9AD0901G4002Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: No sensor, ribs
9AD0901H4002Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: No sensor, ribs
9AD0901M4002Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: No sensor, ribs
9AD0901L4002Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: No sensor, ribs
9AD0901G4H001Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: Low-speed sensor, ribs
9AD0901H4H001Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: Low-speed sensor, ribs
9AD0901M4H001Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, ribs
9AD0901L4H001Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: Low-speed sensor, ribs
9AD0901P4G001Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: PWM, pulse sensor, ribs
9AD0901G40021Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: No sensor, no ribs (option)
9AD0901G4H0011Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901P4G0011Speed: 3850 min-1 | Airflow: 1.34 m3/min | Static pressure: 76 Pa | SPL: 43 dB(A) | Feature: PWM, pulse sensor, no ribs (option)
9AD0901H40021Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: No sensor, no ribs (option)
9AD0901H4H0011Speed: 3200 min-1 | Airflow: 1.10 m3/min | Static pressure: 52 Pa | SPL: 38 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901L40021Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: No sensor, no ribs (option)
9AD0901L4H0011Speed: 1900 min-1 | Airflow: 0.64 m3/min | Static pressure: 19 Pa | SPL: 24 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901M40021Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: No sensor, no ribs (option)
9AD0901M4H0011Speed: 2800 min-1 | Airflow: 0.97 m3/min | Static pressure: 40 Pa | SPL: 34 dB(A) | Feature: Low-speed sensor, no ribs (option)
