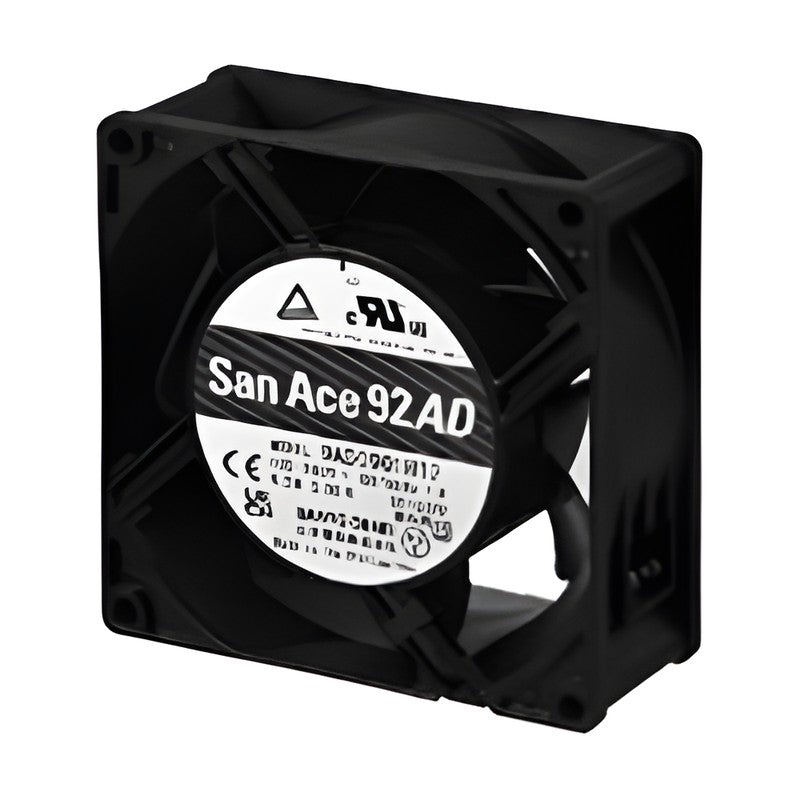

Sanyo Denki San Ace 92AD 9AD ACDC Fan (92x92x38 mm)

Sanyo Denki San Ace 92AD 9AD ACDC Fan (92x92x38 mm)

San Ace 92AD 9AD ACDC fan, 92x92x38 mm, running on AC input with an internal AC-DC converter for DC-fan performance.

Key features

  • AC input (internally converted to DC) with high efficiency of a DC fan
  • Rated voltage 100 to 240 VAC; 4 model(s) in the catalogue specification table
  • Max. airflow up to 1.5 m3/min, max. static pressure up to 90 Pa
  • Motor protection: locked rotor burnout protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 92x92x38 mm
Fan type ACDC axial fan (AC input)
Voltage 100 to 240 VAC
Frequency 50/60 Hz
Operating voltage range 90 to 264 VAC
Operating temperature -20 to +75 °C
Expected life (L10) 60000 h at 60 °C
Mass 250 g
Material Frame: Plastic (UL 94V-0), Impeller: Plastic (UL 94V-0)
Motor protection Locked rotor burnout protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 498-500; Model Index p. 664-665
9AD0901H12 Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: No sensor, ribs
9AD0901M12 Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: No sensor, ribs
9AD0901H1H Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, ribs
9AD0901M1H Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Low-speed sensor, ribs
9AD0901H121 Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: No sensor, no ribs (option)
9AD0901H1H1 Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901M121 Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: No sensor, no ribs (option)
9AD0901M1H1 Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Low-speed sensor, no ribs (option)
ST1-9AD0901H12 Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Set: fan, guard, cord, screws
ST1-9AD0901M12 Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Set: fan, guard, cord, screws
ST1-9AD0901H1H Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Set: fan, guard, cord, screws
ST1-9AD0901M1H Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Set: fan, guard, cord, screws
ACDC FansSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92AD 9AD ACDC Fan (92x92x38 mm)

Brand Sanyo Denki·ACDC Fans

Available part numbers (12)

9AD0901H12, 9AD0901M12, 9AD0901H1H, 9AD0901M1H, 9AD0901H121, 9AD0901H1H1, 9AD0901M121, 9AD0901M1H1, ST1-9AD0901H12, ST1-9AD0901M12 + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9AD0901H12Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: No sensor, ribs
9AD0901M12Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: No sensor, ribs
9AD0901H1HSpeed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, ribs
9AD0901M1HSpeed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Low-speed sensor, ribs
9AD0901H121Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: No sensor, no ribs (option)
9AD0901H1H1Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Low-speed sensor, no ribs (option)
9AD0901M121Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: No sensor, no ribs (option)
9AD0901M1H1Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Low-speed sensor, no ribs (option)
ST1-9AD0901H12Speed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Set: fan, guard, cord, screws
ST1-9AD0901M12Speed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Set: fan, guard, cord, screws
ST1-9AD0901H1HSpeed: 3850 min-1 | Airflow: 1.5 m3/min | Static pressure: 90 Pa | SPL: 40 dB(A) | Feature: Set: fan, guard, cord, screws
ST1-9AD0901M1HSpeed: 3100 min-1 | Airflow: 1.18 m3/min | Static pressure: 56 Pa | SPL: 33 dB(A) | Feature: Set: fan, guard, cord, screws
