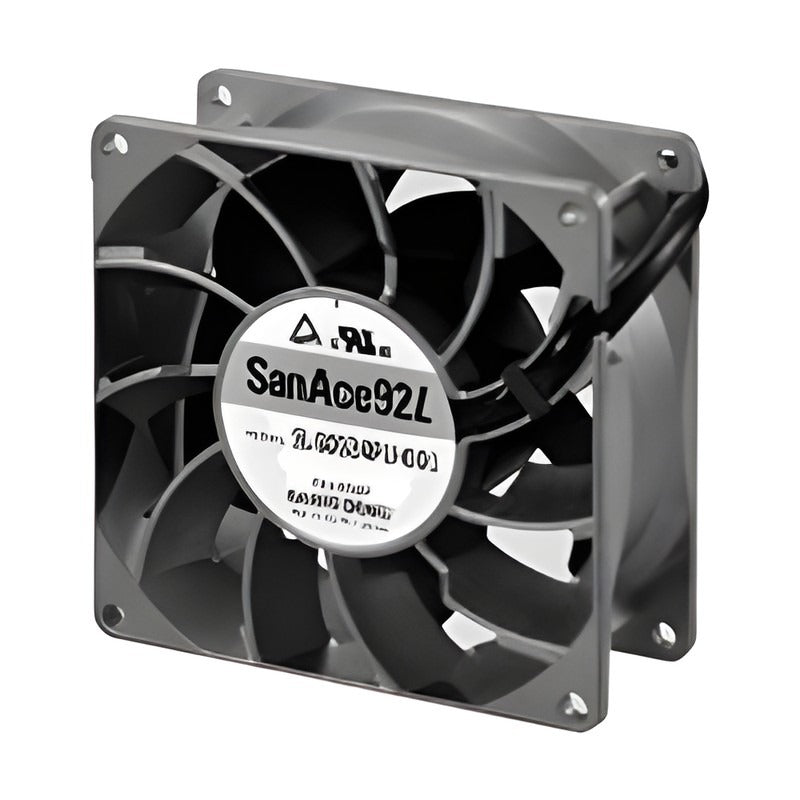

Sanyo Denki San Ace 92L 9LG Long Life DC Fan 92x92x38 mm

Sanyo Denki San Ace 92L 9LG Long Life DC Fan 92x92x38 mm

92 mm x 38 mm long life DC fan with PWM control for high airflow at 180,000 h expected life.

Key features

  • Long life design, L10 expected life up to 180,000 h at 60 C
  • Rated voltage 12/24 VDC, frame size 92x92x38 mm
  • Rated speed range 7000-9000 min-1
  • Locked rotor burnout protection and reverse polarity protection
  • PWM speed control input (25 kHz) with pulse sensor output
  • Without-sensor, pulse and lock sensor option models listed in the Model Index

Specifications

Frame size 92x92x38 mm
Fan type Axial fan, long life
Material Aluminum frame, UL 94V-1 plastic impeller
Operating temperature -20 to +70 C (non-condensing)
Storage temperature -30 to +70 C (non-condensing)
Motor protection Locked rotor burnout, reverse polarity
Mass 270 g
Expected life 180,000 h at 60 C
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 338-340
9LG0912P1H001 Voltage: 12 VDC | Speed: 9000 min-1 | Airflow: 3.7 m3/min | Static pressure: 430 Pa | Feature: Pulse sensor, PWM | Rated current: 2.0 A
9LG0912P1F001 Voltage: 12 VDC | Speed: 7000 min-1 | Airflow: 2.9 m3/min | Static pressure: 263 Pa | Feature: Pulse sensor, PWM | Rated current: 1.0 A
9LG0924P1H001 Voltage: 24 VDC | Speed: 9000 min-1 | Airflow: 3.7 m3/min | Static pressure: 430 Pa | Feature: Pulse sensor, PWM | Rated current: 0.9 A
9LG0924P1F001 Voltage: 24 VDC | Speed: 7000 min-1 | Airflow: 2.9 m3/min | Static pressure: 263 Pa | Feature: Pulse sensor, PWM | Rated current: 0.5 A
9LG0912H1D001 Voltage: 12 VDC | Speed: 9000 min-1 | Airflow: 3.7 m3/min | Static pressure: 430 Pa | Feature: Lock sensor (option model) | Rated current: 2.0 A
DC Axial FansSanyo Denki
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92L 9LG Long Life DC Fan 92x92x38 mm

Brand Sanyo Denki·DC Axial Fans

Available part numbers (5)

9LG0912P1H001, 9LG0912P1F001, 9LG0924P1H001, 9LG0924P1F001, 9LG0912H1D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9LG0912P1H001Voltage: 12 VDC | Speed: 9000 min-1 | Airflow: 3.7 m3/min | Static pressure: 430 Pa | Feature: Pulse sensor, PWM | Rated current: 2.0 A
9LG0912P1F001Voltage: 12 VDC | Speed: 7000 min-1 | Airflow: 2.9 m3/min | Static pressure: 263 Pa | Feature: Pulse sensor, PWM | Rated current: 1.0 A
9LG0924P1H001Voltage: 24 VDC | Speed: 9000 min-1 | Airflow: 3.7 m3/min | Static pressure: 430 Pa | Feature: Pulse sensor, PWM | Rated current: 0.9 A
9LG0924P1F001Voltage: 24 VDC | Speed: 7000 min-1 | Airflow: 2.9 m3/min | Static pressure: 263 Pa | Feature: Pulse sensor, PWM | Rated current: 0.5 A
9LG0912H1D001Voltage: 12 VDC | Speed: 9000 min-1 | Airflow: 3.7 m3/min | Static pressure: 430 Pa | Feature: Lock sensor (option model) | Rated current: 2.0 A
