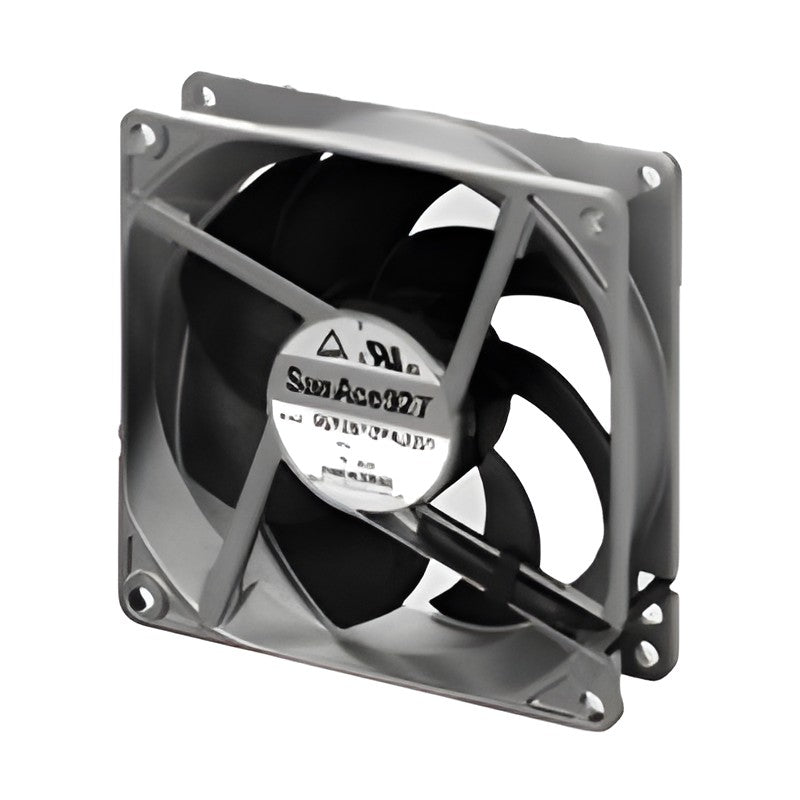

Sanyo Denki San Ace 92T 9GT Wide Temperature Range Fan (92x92x25 mm)

Sanyo Denki San Ace 92T 9GT Wide Temperature Range Fan (92x92x25 mm)

San Ace 92T 9GT wide temperature range DC fan, 92x92x25 mm, rated for operation from -40 to +85 °C.

Key features

  • Wide operating temperature range of -40 to +85 °C; aluminum frame
  • Rated voltage 12, 24 VDC; 2 model(s) in the catalogue specification table
  • Max. airflow up to 2.2 m3/min, max. static pressure up to 105 Pa
  • PWM speed control with pulse sensor output available
  • Motor protection: locked rotor burnout protection, reverse polarity protection
  • Sensor / rib variants available as option models (catalogue Model Index)

Specifications

Frame size 92x92x25 mm
Fan type DC axial fan, -40 to +85 °C
Airflow 2.2 m3/min
Static pressure 105 Pa
SPL 44 dB(A)
Operating temperature -40 to +85 °C
Expected life (L10) 40000 h at 85 °C
Mass 150 g
Material Frame: Aluminum, Impeller: Plastic (UL 94V-1)
Motor protection Locked rotor burnout protection, Reverse polarity protection
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 480-481; Model Index p. 651
9GT0912P4J001 Voltage: 12 VDC | Speed: 5000 min-1 | Feature: PWM, pulse sensor
9GT0924P4J001 Voltage: 24 VDC | Speed: 5000 min-1 | Feature: PWM, pulse sensor
9GT0912J4002 Voltage: 12 VDC | Speed: 5000 min-1 | Feature: No sensor (option)
9GT0912J4001 Voltage: 12 VDC | Speed: 5000 min-1 | Feature: Pulse sensor (option)
9GT0912J4D001 Voltage: 12 VDC | Speed: 5000 min-1 | Feature: Lock sensor (option)
9GT0924J4002 Voltage: 24 VDC | Speed: 5000 min-1 | Feature: No sensor (option)
9GT0924J4001 Voltage: 24 VDC | Speed: 5000 min-1 | Feature: Pulse sensor (option)
9GT0924J4D001 Voltage: 24 VDC | Speed: 5000 min-1 | Feature: Lock sensor (option)
DC Axial FansSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace 92T 9GT Wide Temperature Range Fan (92x92x25 mm)

Brand Sanyo Denki·DC Axial Fans

Available part numbers (8)

9GT0912P4J001, 9GT0924P4J001, 9GT0912J4002, 9GT0912J4001, 9GT0912J4D001, 9GT0924J4002, 9GT0924J4001, 9GT0924J4D001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9GT0912P4J001Voltage: 12 VDC | Speed: 5000 min-1 | Feature: PWM, pulse sensor
9GT0924P4J001Voltage: 24 VDC | Speed: 5000 min-1 | Feature: PWM, pulse sensor
9GT0912J4002Voltage: 12 VDC | Speed: 5000 min-1 | Feature: No sensor (option)
9GT0912J4001Voltage: 12 VDC | Speed: 5000 min-1 | Feature: Pulse sensor (option)
9GT0912J4D001Voltage: 12 VDC | Speed: 5000 min-1 | Feature: Lock sensor (option)
9GT0924J4002Voltage: 24 VDC | Speed: 5000 min-1 | Feature: No sensor (option)
9GT0924J4001Voltage: 24 VDC | Speed: 5000 min-1 | Feature: Pulse sensor (option)
9GT0924J4D001Voltage: 24 VDC | Speed: 5000 min-1 | Feature: Lock sensor (option)
