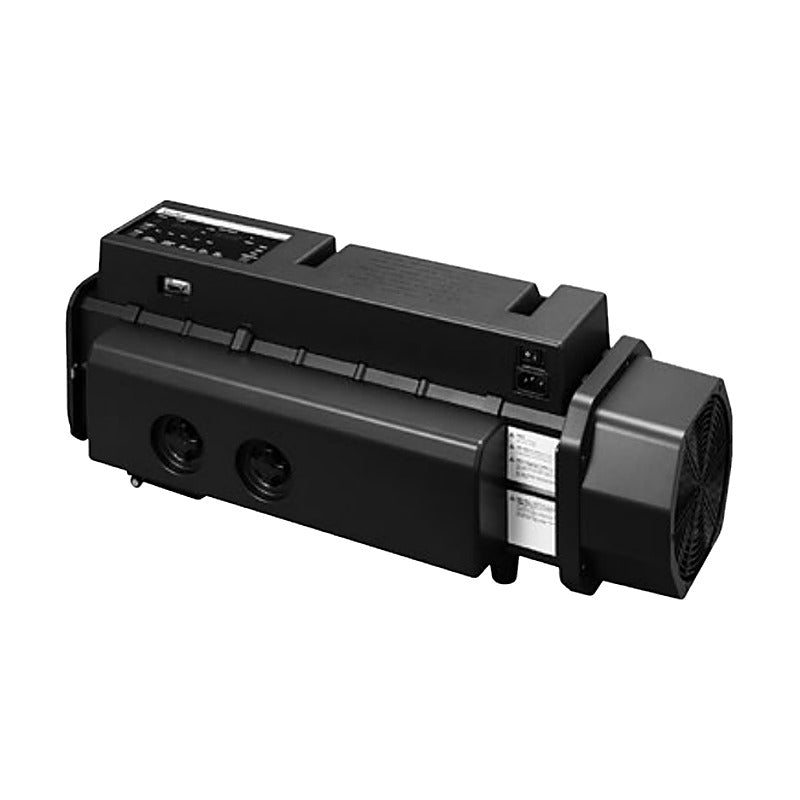

Sanyo Denki San Ace Airflow Tester 9AT2560

Sanyo Denki San Ace Airflow Tester 9AT2560

The San Ace Airflow Tester measures system impedance, operating airflow and P-Q performance of equipment to select the optimal cooling fan.

Key features

  • Measures system impedance, operating airflow and P-Q characteristics
  • Airflow accuracy +/-7% of max. measurable airflow per nozzle
  • Compact 600 x 250 x 250 mm, main unit approx. 6 kg
  • USB serial digital output with included data viewer software
  • Supplied with nozzle set, 5 mounting boards, connection duct and AC cable

Specifications

Static pressure accuracy +/-10 Pa (<200 Pa), +/-50 Pa (>=200 Pa)
Operating environment 0 to 40 C, 20 to 85% RH (non-condensing)
Power supply 100 to 240 VAC, 50/60 Hz, 260 VA max.
Interface Digital output, USB serial adapter
Dimensions 600 (W) x 250 (H) x 250 (D) mm
Mass Main unit approx. 6 kg; duct approx. 1.5 kg
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 592-595
9AT2560S-0000 Units: m3/min, Pa | Range: 0.20-8.00 m3/min, 0-999 Pa | AC plug: No AC power cable | Package: Tester
9AT2560S-0001 Units: m3/min, Pa | Range: 0.20-8.00 m3/min, 0-999 Pa | AC plug: Japan / N. America, 100/120 VAC | Package: Tester
9AT2560S-0002 Units: m3/min, Pa | Range: 0.20-8.00 m3/min, 0-999 Pa | AC plug: Europe, 220 VAC | Package: Tester
9AT2560S-0003 Units: m3/min, Pa | Range: 0.20-8.00 m3/min, 0-999 Pa | AC plug: China, 220 VAC | Package: Tester
9AT2560A-0000 Units: CFM, inchH2O | Range: 7-282 CFM, 0-4.01 inchH2O | AC plug: No AC power cable | Package: Tester
9AT2560A-0001 Units: CFM, inchH2O | Range: 7-282 CFM, 0-4.01 inchH2O | AC plug: Japan / N. America, 100/120 VAC | Package: Tester
9AT2560A-0002 Units: CFM, inchH2O | Range: 7-282 CFM, 0-4.01 inchH2O | AC plug: Europe, 220 VAC | Package: Tester
9AT2560A-0003 Units: CFM, inchH2O | Range: 7-282 CFM, 0-4.01 inchH2O | AC plug: China, 220 VAC | Package: Tester
9AT2560C-0000 Units: CFM, Pa | Range: 7-282 CFM, 0-999 Pa | AC plug: No AC power cable | Package: Tester
9AT2560C-0001 Units: CFM, Pa | Range: 7-282 CFM, 0-999 Pa | AC plug: Japan / N. America, 100/120 VAC | Package: Tester
9AT2560C-0002 Units: CFM, Pa | Range: 7-282 CFM, 0-999 Pa | AC plug: Europe, 220 VAC | Package: Tester
9AT2560C-0003 Units: CFM, Pa | Range: 7-282 CFM, 0-999 Pa | AC plug: China, 220 VAC | Package: Tester
9AT2560S-0001CS Units: m3/min, Pa | Range: 0.20-8.00 m3/min, 0-999 Pa | AC plug: Japan / N. America, 100/120 VAC | Package: Tester + carrying case
