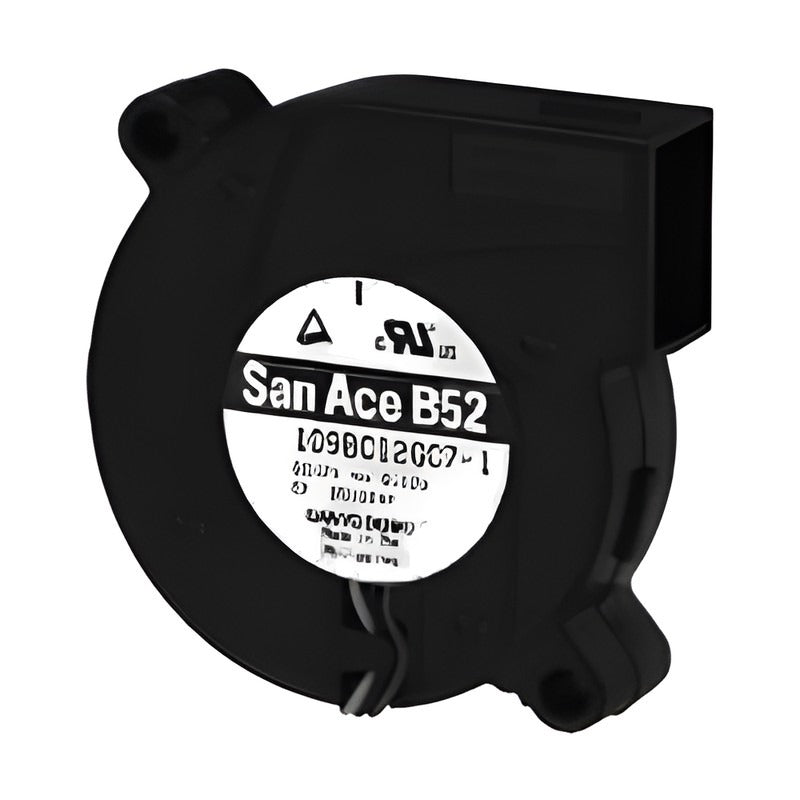

Sanyo Denki San Ace B52 9BC DC Blower 52x15 mm

Sanyo Denki San Ace B52 9BC DC Blower 52x15 mm

The San Ace B52 9BC type is a 52x15 mm DC blower designed for applications that need high static pressure.

Key features

  • Up to 0.125 m3/min max. airflow and 215 Pa max. static pressure
  • Rated voltage 12 / 24 VDC (7 catalogue models)
  • Pulse sensor output for speed monitoring
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 52x15 mm
Series / type San Ace B52 9BC type
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 24 VDC
Mass 33 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 262-263; Model Index p. 644
109BC12GC7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
109BC12HC7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Pulse sensor | SPL: 40 dB(A)
109BC12FC7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Pulse sensor | SPL: 38 dB(A)
109BC12MC7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 4600 min-1 | Airflow: 0.091 m3/min (3.2 CFM) | Static pressure: 100 Pa (0.4 inH2O) | Feature: Pulse sensor | SPL: 35 dB(A)
109BC24GC7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
109BC24HC7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Pulse sensor | SPL: 40 dB(A)
109BC24FC7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Pulse sensor | SPL: 38 dB(A)
109BC12FA7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Without sensor (option) | SPL: 38 dB(A)
109BC12FD7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Lock sensor (option) | SPL: 38 dB(A)
109BC12GA7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
109BC12GD7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
109BC12HA7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Without sensor (option) | SPL: 40 dB(A)
109BC12HD7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Lock sensor (option) | SPL: 40 dB(A)
109BC12MA7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 4600 min-1 | Airflow: 0.091 m3/min (3.2 CFM) | Static pressure: 100 Pa (0.4 inH2O) | Feature: Without sensor (option) | SPL: 35 dB(A)
109BC12MD7-1 Voltage: 12 VDC (6 to 13.8 V) | Speed: 4600 min-1 | Airflow: 0.091 m3/min (3.2 CFM) | Static pressure: 100 Pa (0.4 inH2O) | Feature: Lock sensor (option) | SPL: 35 dB(A)
109BC24FA7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Without sensor (option) | SPL: 38 dB(A)
109BC24FD7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Lock sensor (option) | SPL: 38 dB(A)
109BC24GA7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
109BC24GD7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
109BC24HA7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Without sensor (option) | SPL: 40 dB(A)
109BC24HD7-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Lock sensor (option) | SPL: 40 dB(A)
DC BlowersSanyo Denki
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B52 9BC DC Blower 52x15 mm

Brand Sanyo Denki·DC Blowers

Available part numbers (21)

109BC12GC7-1, 109BC12HC7-1, 109BC12FC7-1, 109BC12MC7-1, 109BC24GC7-1, 109BC24HC7-1, 109BC24FC7-1, 109BC12FA7-1, 109BC12FD7-1, 109BC12GA7-1 + 11 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109BC12GC7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
109BC12HC7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Pulse sensor | SPL: 40 dB(A)
109BC12FC7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Pulse sensor | SPL: 38 dB(A)
109BC12MC7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 4600 min-1 | Airflow: 0.091 m3/min (3.2 CFM) | Static pressure: 100 Pa (0.4 inH2O) | Feature: Pulse sensor | SPL: 35 dB(A)
109BC24GC7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
109BC24HC7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Pulse sensor | SPL: 40 dB(A)
109BC24FC7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Pulse sensor | SPL: 38 dB(A)
109BC12FA7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Without sensor (option) | SPL: 38 dB(A)
109BC12FD7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Lock sensor (option) | SPL: 38 dB(A)
109BC12GA7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
109BC12GD7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
109BC12HA7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Without sensor (option) | SPL: 40 dB(A)
109BC12HD7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Lock sensor (option) | SPL: 40 dB(A)
109BC12MA7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 4600 min-1 | Airflow: 0.091 m3/min (3.2 CFM) | Static pressure: 100 Pa (0.4 inH2O) | Feature: Without sensor (option) | SPL: 35 dB(A)
109BC12MD7-1Voltage: 12 VDC (6 to 13.8 V) | Speed: 4600 min-1 | Airflow: 0.091 m3/min (3.2 CFM) | Static pressure: 100 Pa (0.4 inH2O) | Feature: Lock sensor (option) | SPL: 35 dB(A)
109BC24FA7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Without sensor (option) | SPL: 38 dB(A)
109BC24FD7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 5100 min-1 | Airflow: 0.101 m3/min (3.6 CFM) | Static pressure: 130 Pa (0.52 inH2O) | Feature: Lock sensor (option) | SPL: 38 dB(A)
109BC24GA7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
109BC24GD7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 6200 min-1 | Airflow: 0.125 m3/min (4.4 CFM) | Static pressure: 215 Pa (0.86 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
109BC24HA7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Without sensor (option) | SPL: 40 dB(A)
109BC24HD7-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 5600 min-1 | Airflow: 0.112 m3/min (4.0 CFM) | Static pressure: 165 Pa (0.66 inH2O) | Feature: Lock sensor (option) | SPL: 40 dB(A)
