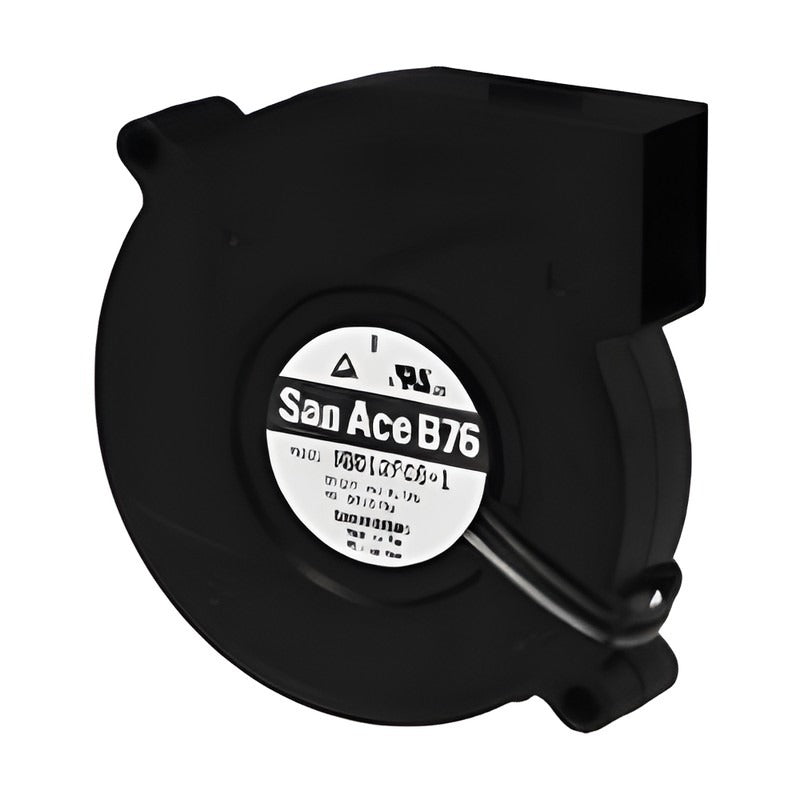

Sanyo Denki San Ace B76 9BD DC Blower 76x20 mm

Sanyo Denki San Ace B76 9BD DC Blower 76x20 mm

The San Ace B76 9BD type is a 76x20 mm DC blower designed for applications that need high static pressure.

Key features

  • Up to 0.29 m3/min max. airflow and 300 Pa max. static pressure
  • Rated voltage 12 / 24 VDC (6 catalogue models)
  • Pulse sensor output for speed monitoring
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 76x20 mm
Series / type San Ace B76 9BD type
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 24 VDC
Mass 58 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 264-265; Model Index p. 645, 646
9BD12SC6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
9BD12HC6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Pulse sensor | SPL: 41 dB(A)
9BD12FC6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Pulse sensor | SPL: 39 dB(A)
9BD24SC6-40 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
9BD24HC6-1 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Pulse sensor | SPL: 41 dB(A)
9BD24FC6-1 Voltage: 24 VDC (10 to 27.6 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Pulse sensor | SPL: 39 dB(A)
9BD12FA6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Without sensor (option) | SPL: 39 dB(A)
9BD12FD6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Lock sensor (option) | SPL: 39 dB(A)
9BD12HA6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Without sensor (option) | SPL: 41 dB(A)
9BD12HD6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Lock sensor (option) | SPL: 41 dB(A)
9BD12SA6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
9BD12SD6-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
9BD12P6S01 Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM control (option) | SPL: 43 dB(A)
9BD24FA6-1 Voltage: 24 VDC (10 to 27.6 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Without sensor (option) | SPL: 39 dB(A)
9BD24FD6-1 Voltage: 24 VDC (10 to 27.6 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Lock sensor (option) | SPL: 39 dB(A)
9BD24HA6-1 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Without sensor (option) | SPL: 41 dB(A)
9BD24HD6-1 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Lock sensor (option) | SPL: 41 dB(A)
9BD24SA6-40 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
9BD24SD6-40 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
9BD24P6S06 Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM control (option) | SPL: 43 dB(A)
DC BlowersSanyo Denki
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B76 9BD DC Blower 76x20 mm

Brand Sanyo Denki·DC Blowers

Available part numbers (20)

9BD12SC6-1, 9BD12HC6-1, 9BD12FC6-1, 9BD24SC6-40, 9BD24HC6-1, 9BD24FC6-1, 9BD12FA6-1, 9BD12FD6-1, 9BD12HA6-1, 9BD12HD6-1 + 10 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9BD12SC6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
9BD12HC6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Pulse sensor | SPL: 41 dB(A)
9BD12FC6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Pulse sensor | SPL: 39 dB(A)
9BD24SC6-40Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor | SPL: 43 dB(A)
9BD24HC6-1Voltage: 24 VDC (10 to 27.6 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Pulse sensor | SPL: 41 dB(A)
9BD24FC6-1Voltage: 24 VDC (10 to 27.6 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Pulse sensor | SPL: 39 dB(A)
9BD12FA6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Without sensor (option) | SPL: 39 dB(A)
9BD12FD6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Lock sensor (option) | SPL: 39 dB(A)
9BD12HA6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Without sensor (option) | SPL: 41 dB(A)
9BD12HD6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Lock sensor (option) | SPL: 41 dB(A)
9BD12SA6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
9BD12SD6-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
9BD12P6S01Voltage: 12 VDC (7 to 13.8 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM control (option) | SPL: 43 dB(A)
9BD24FA6-1Voltage: 24 VDC (10 to 27.6 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Without sensor (option) | SPL: 39 dB(A)
9BD24FD6-1Voltage: 24 VDC (10 to 27.6 V) | Speed: 3900 min-1 | Airflow: 0.25 m3/min (8.8 CFM) | Static pressure: 200 Pa (0.8 inH2O) | Feature: Lock sensor (option) | SPL: 39 dB(A)
9BD24HA6-1Voltage: 24 VDC (10 to 27.6 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Without sensor (option) | SPL: 41 dB(A)
9BD24HD6-1Voltage: 24 VDC (10 to 27.6 V) | Speed: 4200 min-1 | Airflow: 0.27 m3/min (9.5 CFM) | Static pressure: 230 Pa (0.92 inH2O) | Feature: Lock sensor (option) | SPL: 41 dB(A)
9BD24SA6-40Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Without sensor (option) | SPL: 43 dB(A)
9BD24SD6-40Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Lock sensor (option) | SPL: 43 dB(A)
9BD24P6S06Voltage: 24 VDC (10 to 27.6 V) | Speed: 4500 min-1 | Airflow: 0.29 m3/min (10.2 CFM) | Static pressure: 300 Pa (1.2 inH2O) | Feature: Pulse sensor, PWM control (option) | SPL: 43 dB(A)
