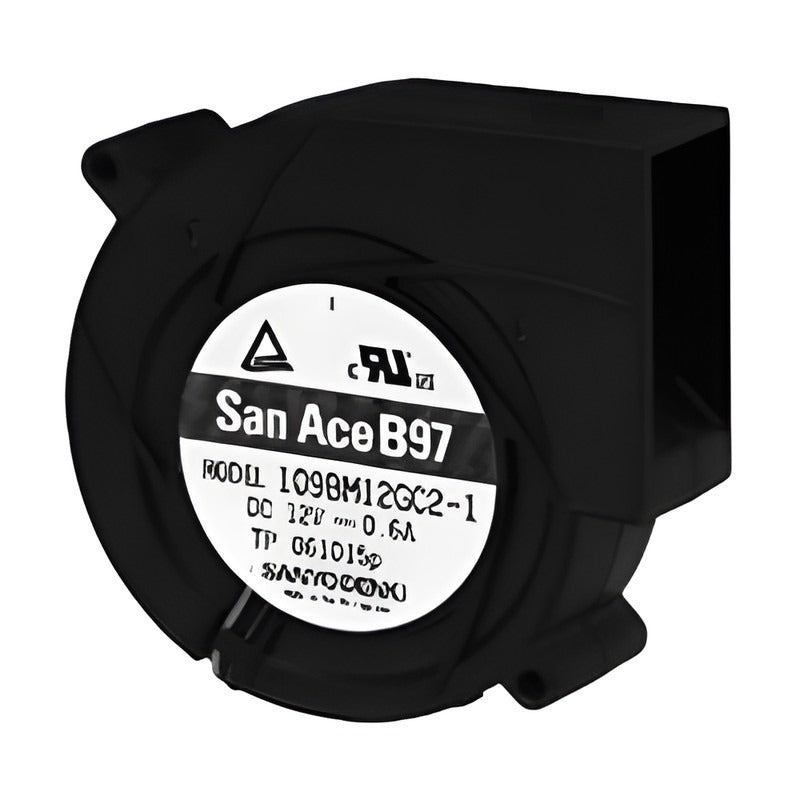

Sanyo Denki San Ace B97 9BM DC Blower 97x33 mm

Sanyo Denki San Ace B97 9BM DC Blower 97x33 mm

The San Ace B97 9BM type is a 97x33 mm DC blower designed for applications that need high static pressure.

Key features

  • Up to 0.82 m3/min max. airflow and 281 Pa max. static pressure
  • Rated voltage 12 / 24 VDC (6 catalogue models)
  • Pulse sensor output for speed monitoring
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 97x33 mm
Series / type San Ace B97 9BM type
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 24 VDC
Mass 175 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 276-277; Model Index p. 644
109BM12GC2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Pulse sensor | SPL: 51.5 dB(A)
109BM12HC2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Pulse sensor | SPL: 48.5 dB(A)
109BM12MC2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Pulse sensor | SPL: 43.5 dB(A)
109BM24GC2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Pulse sensor | SPL: 51.5 dB(A)
109BM24HC2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Pulse sensor | SPL: 48.5 dB(A)
109BM24MC2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Pulse sensor | SPL: 43.5 dB(A)
109BM12GA2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Without sensor (option) | SPL: 51.5 dB(A)
109BM12GD2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Lock sensor (option) | SPL: 51.5 dB(A)
109BM12HA2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Without sensor (option) | SPL: 48.5 dB(A)
109BM12HD2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Lock sensor (option) | SPL: 48.5 dB(A)
109BM12MA2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Without sensor (option) | SPL: 43.5 dB(A)
109BM12MD2-1 Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Lock sensor (option) | SPL: 43.5 dB(A)
109BM12P2M01 Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Pulse sensor, PWM control (option) | SPL: 43.5 dB(A)
109BM24GA2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Without sensor (option) | SPL: 51.5 dB(A)
109BM24GD2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Lock sensor (option) | SPL: 51.5 dB(A)
109BM24HA2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Without sensor (option) | SPL: 48.5 dB(A)
109BM24HD2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Lock sensor (option) | SPL: 48.5 dB(A)
109BM24MA2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Without sensor (option) | SPL: 43.5 dB(A)
109BM24MD2-1 Voltage: 24 VDC (12 to 27.6 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Lock sensor (option) | SPL: 43.5 dB(A)
9BAM12GC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 5800 min-1
9BAM12SC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 5300 min-1
9BAM12HC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 4700 min-1
9BAM12FC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 4300 min-1
9BAM24GC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 5800 min-1
9BAM24SC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 5300 min-1
9BAM24HC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 4700 min-1
9BAM24FC2 Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 4300 min-1
DC BlowersSanyo Denki
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B97 9BM DC Blower 97x33 mm

Brand Sanyo Denki·DC Blowers

Available part numbers (27)

109BM12GC2-1, 109BM12HC2-1, 109BM12MC2-1, 109BM24GC2-1, 109BM24HC2-1, 109BM24MC2-1, 109BM12GA2-1, 109BM12GD2-1, 109BM12HA2-1, 109BM12HD2-1 + 17 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109BM12GC2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Pulse sensor | SPL: 51.5 dB(A)
109BM12HC2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Pulse sensor | SPL: 48.5 dB(A)
109BM12MC2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Pulse sensor | SPL: 43.5 dB(A)
109BM24GC2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Pulse sensor | SPL: 51.5 dB(A)
109BM24HC2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Pulse sensor | SPL: 48.5 dB(A)
109BM24MC2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Pulse sensor | SPL: 43.5 dB(A)
109BM12GA2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Without sensor (option) | SPL: 51.5 dB(A)
109BM12GD2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Lock sensor (option) | SPL: 51.5 dB(A)
109BM12HA2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Without sensor (option) | SPL: 48.5 dB(A)
109BM12HD2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Lock sensor (option) | SPL: 48.5 dB(A)
109BM12MA2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Without sensor (option) | SPL: 43.5 dB(A)
109BM12MD2-1Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Lock sensor (option) | SPL: 43.5 dB(A)
109BM12P2M01Voltage: 12 VDC (7 to 13.8 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Pulse sensor, PWM control (option) | SPL: 43.5 dB(A)
109BM24GA2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Without sensor (option) | SPL: 51.5 dB(A)
109BM24GD2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 3800 min-1 | Airflow: 0.82 m3/min (28.9 CFM) | Static pressure: 281 Pa (1.129 inH2O) | Feature: Lock sensor (option) | SPL: 51.5 dB(A)
109BM24HA2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Without sensor (option) | SPL: 48.5 dB(A)
109BM24HD2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 3300 min-1 | Airflow: 0.71 m3/min (25.1 CFM) | Static pressure: 204 Pa (0.819 inH2O) | Feature: Lock sensor (option) | SPL: 48.5 dB(A)
109BM24MA2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Without sensor (option) | SPL: 43.5 dB(A)
109BM24MD2-1Voltage: 24 VDC (12 to 27.6 V) | Speed: 2700 min-1 | Airflow: 0.58 m3/min (20.5 CFM) | Static pressure: 119 Pa (0.478 inH2O) | Feature: Lock sensor (option) | SPL: 43.5 dB(A)
9BAM12GC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 5800 min-1
9BAM12SC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 5300 min-1
9BAM12HC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 4700 min-1
9BAM12FC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 12 VDC | Speed: 4300 min-1
9BAM24GC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 5800 min-1
9BAM24SC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 5300 min-1
9BAM24HC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 4700 min-1
9BAM24FC2Legacy code (deleted / not in current catalogue) | Size: 97x33 mm | Voltage: 24 VDC | Speed: 4300 min-1
