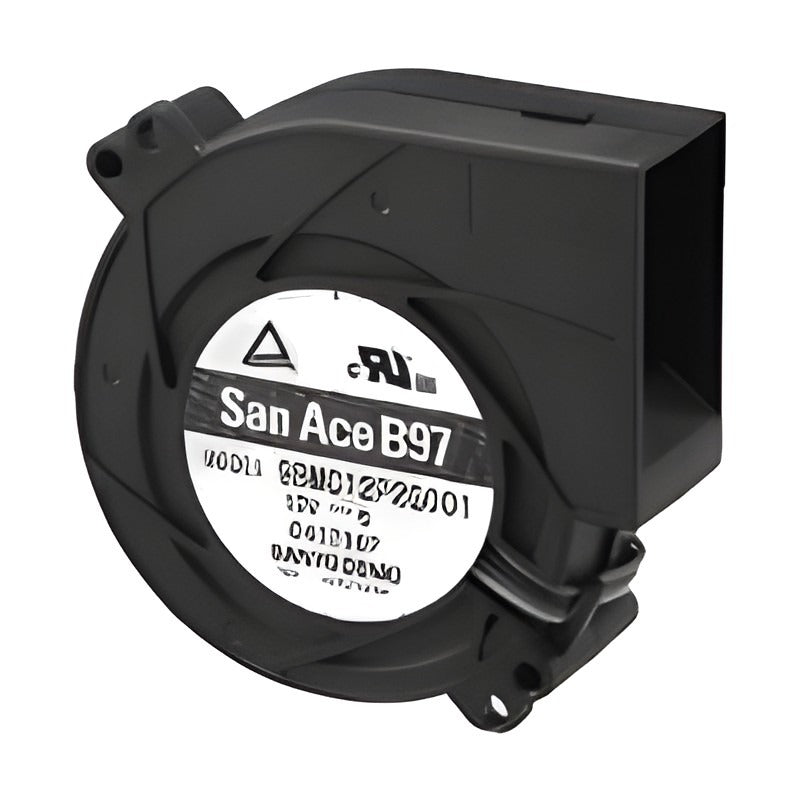

Sanyo Denki San Ace B97 9BMC DC Blower 97x33 mm

Sanyo Denki San Ace B97 9BMC DC Blower 97x33 mm

The San Ace B97 9BMC type is a 97x33 mm DC blower designed for applications that need high static pressure.

Key features

  • Up to 1.85 m3/min max. airflow and 1950 Pa max. static pressure
  • Rated voltage 12 / 24 VDC (2 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 97x33 mm
Series / type San Ace B97 9BMC type
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 / 24 VDC
Mass 200 g
Max. airflow 1.85 m3/min (65.3 CFM)
Max. static pressure 1950 Pa (7.83 inH2O)
SPL 69 dB(A)
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 268-269; Model Index p. 646
9BMC12P2G001 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 8200 min-1 | Feature: Pulse sensor, PWM control | Current / input: 6.2 A / 74.4 W
9BMC24P2G001 Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 8200 min-1 | Feature: Pulse sensor, PWM control | Current / input: 3.1 A / 74.4 W
9BMC12G2002 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 8200 min-1 | Feature: Without sensor (option) | Current / input: 6.2 A / 74.4 W
DC BlowersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace B97 9BMC DC Blower 97x33 mm

Brand Sanyo Denki·DC Blowers

Available part numbers (3)

9BMC12P2G001, 9BMC24P2G001, 9BMC12G2002

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9BMC12P2G001Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 8200 min-1 | Feature: Pulse sensor, PWM control | Current / input: 6.2 A / 74.4 W
9BMC24P2G001Voltage: 24 VDC (21.6 to 26.4 V) | Speed: 8200 min-1 | Feature: Pulse sensor, PWM control | Current / input: 3.1 A / 74.4 W
9BMC12G2002Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 8200 min-1 | Feature: Without sensor (option) | Current / input: 6.2 A / 74.4 W
