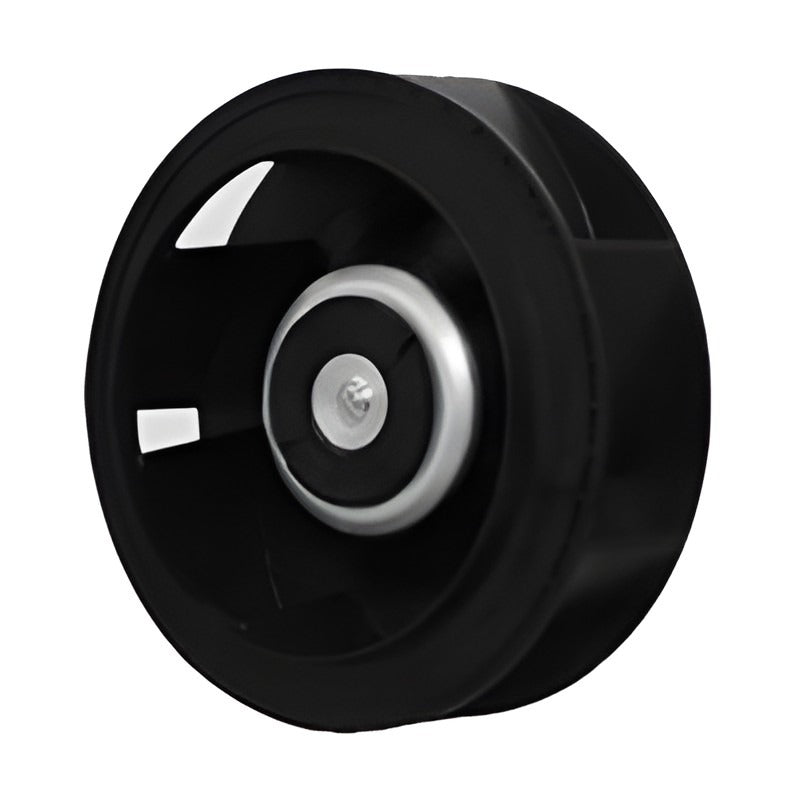

Sanyo Denki San Ace C175 9TGA DC Centrifugal Fan dia. 175x69 mm

Sanyo Denki San Ace C175 9TGA DC Centrifugal Fan dia. 175x69 mm

The San Ace C175 9TGA type is a dia. 175x69 mm DC centrifugal fan for high-airflow, high-pressure cooling of equipment.

Key features

  • Up to 17.6 m3/min max. airflow and 1100 Pa max. static pressure
  • Ratings apply with the optional inlet nozzle 109-1073 mounted
  • Rated voltage 24 / 48 VDC (2 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size dia. 175x69 mm
Series / type San Ace C175 9TGA type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 24 / 48 VDC
Mass 720 g
Rating condition With optional inlet nozzle 109-1073
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 295-297
9TGA24P0H001 Voltage: 24 VDC (16 to 36 V) | Speed: 4950 min-1 | Airflow: 15.3 m3/min (541 CFM) | Static pressure: 830 Pa (3.33 inH2O) | SPL: 77 dB(A) | Current / input: 4.8 A / 115 W
9TGA48P0G001 Voltage: 48 VDC (36 to 72 V) | Speed: 5700 min-1 | Airflow: 17.6 m3/min (622 CFM) | Static pressure: 1100 Pa (4.42 inH2O) | SPL: 80 dB(A) | Current / input: 3.5 A / 168 W
DC Centrifugal FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace C175 9TGA DC Centrifugal Fan dia. 175x69 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (2)

9TGA24P0H001, 9TGA48P0G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9TGA24P0H001Voltage: 24 VDC (16 to 36 V) | Speed: 4950 min-1 | Airflow: 15.3 m3/min (541 CFM) | Static pressure: 830 Pa (3.33 inH2O) | SPL: 77 dB(A) | Current / input: 4.8 A / 115 W
9TGA48P0G001Voltage: 48 VDC (36 to 72 V) | Speed: 5700 min-1 | Airflow: 17.6 m3/min (622 CFM) | Static pressure: 1100 Pa (4.42 inH2O) | SPL: 80 dB(A) | Current / input: 3.5 A / 168 W
