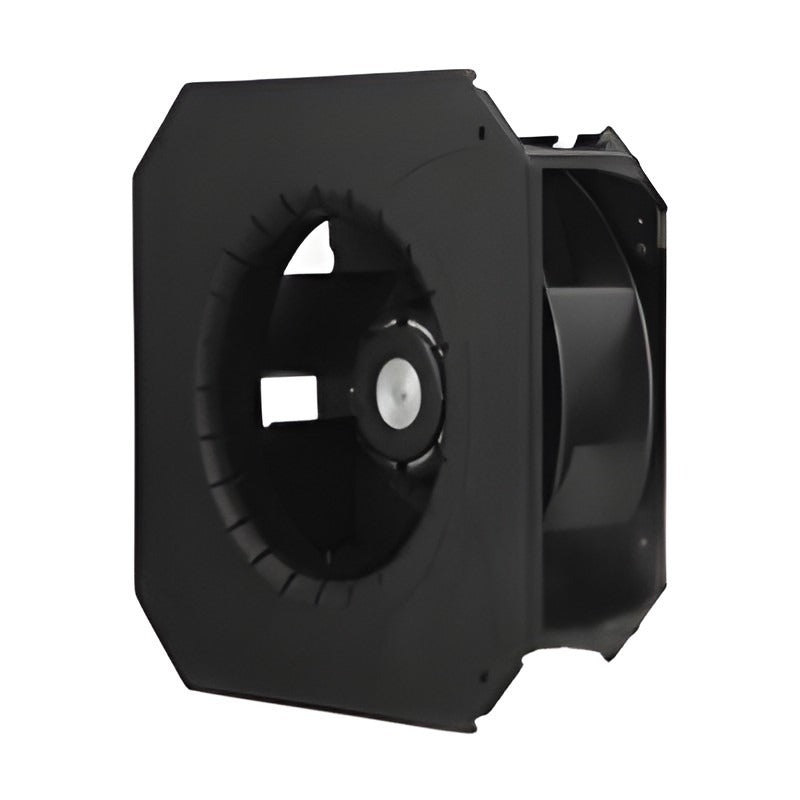

Sanyo Denki San Ace C221 9B1TP Bracket Centrifugal Fan 270x270x99 mm

Sanyo Denki San Ace C221 9B1TP Bracket Centrifugal Fan 270x270x99 mm

The San Ace C221 9B1TP type is a 270x270x99 mm DC centrifugal fan for high-airflow, high-pressure cooling of equipment.

Key features

  • Bracket-mounted version of the C221 9TP centrifugal fan (270x270 mm bracket)
  • Up to 21 m3/min max. airflow and 760 Pa max. static pressure
  • Rated voltage 24 / 48 VDC (3 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Motor case: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size 270x270x99 mm
Series / type San Ace C221 9B1TP type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Expected life (L10) 40000 h at 60 °C
Rated voltage 24 / 48 VDC
Mass 1700 g
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 307-309
9B1TP24P0H001 Voltage: 24 VDC (16 to 36 V) | Speed: 3050 min-1 | Airflow: 17.6 m3/min (622 CFM) | Static pressure: 530 Pa (2.13 inH2O) | Operating temp: -20 to +70 °C | SPL: 71 dB(A)
9B1TP48P0G001 Voltage: 48 VDC (36 to 72 V) | Speed: 3650 min-1 | Airflow: 21.0 m3/min (742 CFM) | Static pressure: 760 Pa (3.05 inH2O) | Operating temp: -20 to +60 °C | SPL: 74 dB(A)
9B1TP48P0H001 Voltage: 48 VDC (36 to 72 V) | Speed: 3050 min-1 | Airflow: 17.6 m3/min (622 CFM) | Static pressure: 530 Pa (2.13 inH2O) | Operating temp: -20 to +70 °C | SPL: 71 dB(A)
DC Centrifugal FansSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace C221 9B1TP Bracket Centrifugal Fan 270x270x99 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (3)

9B1TP24P0H001, 9B1TP48P0G001, 9B1TP48P0H001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9B1TP24P0H001Voltage: 24 VDC (16 to 36 V) | Speed: 3050 min-1 | Airflow: 17.6 m3/min (622 CFM) | Static pressure: 530 Pa (2.13 inH2O) | Operating temp: -20 to +70 °C | SPL: 71 dB(A)
9B1TP48P0G001Voltage: 48 VDC (36 to 72 V) | Speed: 3650 min-1 | Airflow: 21.0 m3/min (742 CFM) | Static pressure: 760 Pa (3.05 inH2O) | Operating temp: -20 to +60 °C | SPL: 74 dB(A)
9B1TP48P0H001Voltage: 48 VDC (36 to 72 V) | Speed: 3050 min-1 | Airflow: 17.6 m3/min (622 CFM) | Static pressure: 530 Pa (2.13 inH2O) | Operating temp: -20 to +70 °C | SPL: 71 dB(A)
