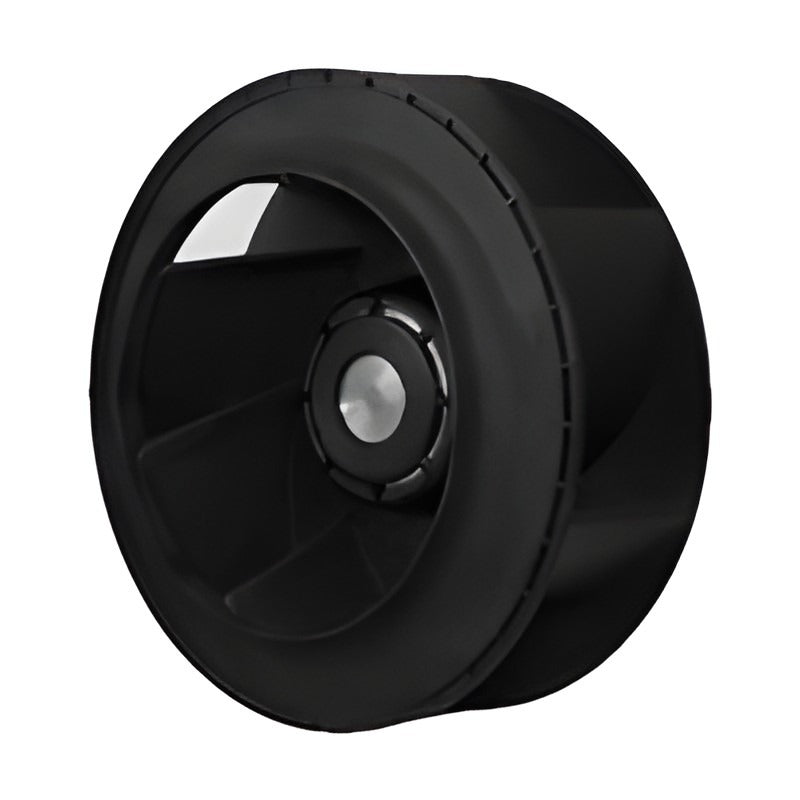

Sanyo Denki San Ace C225 9TS DC Centrifugal Fan dia. 225x99 mm

Sanyo Denki San Ace C225 9TS DC Centrifugal Fan dia. 225x99 mm

The San Ace C225 9TS type is a dia. 225x99 mm DC centrifugal fan for high-airflow, high-pressure cooling of equipment.

Key features

  • Up to 28.1 m3/min max. airflow and 861 Pa max. static pressure
  • Ratings apply with the optional inlet nozzle 109-1134 mounted
  • Rated voltage 48 VDC (2 catalogue models)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Motor case: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size dia. 225x99 mm
Series / type San Ace C225 9TS type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Expected life (L10) 40000 h at 60 °C
Rated voltage 48 VDC
Mass 1220 g
Rating condition With optional inlet nozzle 109-1134
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 304-306
9TS48P0G001 Speed: 3550 min-1 | Airflow: 28.1 m3/min (992 CFM) | Static pressure: 861 Pa (3.46 inH2O) | Operating temp: -20 to +60 °C | SPL: 74.5 dB(A) | Current / input: 3.65 A / 175.2 W
9TS48P0H001 Speed: 2900 min-1 | Airflow: 22.7 m3/min (802 CFM) | Static pressure: 590 Pa (2.37 inH2O) | Operating temp: -20 to +70 °C | SPL: 70.5 dB(A) | Current / input: 2.08 A / 99.8 W
DC Centrifugal FansSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace C225 9TS DC Centrifugal Fan dia. 225x99 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (2)

9TS48P0G001, 9TS48P0H001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9TS48P0G001Speed: 3550 min-1 | Airflow: 28.1 m3/min (992 CFM) | Static pressure: 861 Pa (3.46 inH2O) | Operating temp: -20 to +60 °C | SPL: 74.5 dB(A) | Current / input: 3.65 A / 175.2 W
9TS48P0H001Speed: 2900 min-1 | Airflow: 22.7 m3/min (802 CFM) | Static pressure: 590 Pa (2.37 inH2O) | Operating temp: -20 to +70 °C | SPL: 70.5 dB(A) | Current / input: 2.08 A / 99.8 W
