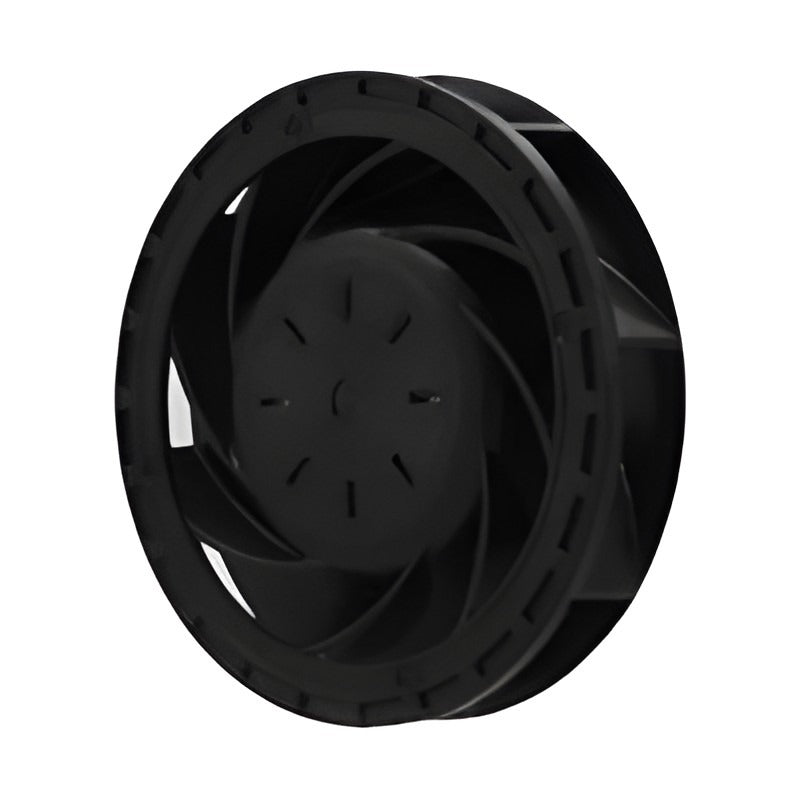

Sanyo Denki San Ace C70 9TD DC Centrifugal Fan dia. 70x20 mm

Sanyo Denki San Ace C70 9TD DC Centrifugal Fan dia. 70x20 mm

The San Ace C70 9TD type is a dia. 70x20 mm DC centrifugal fan for high-airflow, high-pressure cooling of equipment.

Key features

  • Up to 1.13 m3/min max. airflow and 560 Pa max. static pressure
  • Ratings apply with the optional inlet nozzle 109-1106 mounted
  • Rated voltage 12 VDC (1 catalogue model)
  • Pulse sensor with PWM speed control (25 kHz PWM frequency)
  • Motor protection: Locked rotor burnout protection, Reverse polarity protection
  • Material: Motor case: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)

Specifications

Size dia. 70x20 mm
Series / type San Ace C70 9TD type
Sensor / control Pulse sensor, PWM control
PWM frequency 25 kHz
Operating temperature -20 to +70 °C
Expected life (L10) 40000 h at 60 °C
Rated voltage 12 VDC
Mass 90 g
Rating condition With optional inlet nozzle 109-1106
Storage temperature -30 to +70 °C (non-condensing)
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 286-287
9TD12P6G001 Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 9200 min-1 | Airflow: 1.13 m3/min (39.9 CFM) | Static pressure: 560 Pa (2.24 inH2O) | SPL: 61 dB(A) | Current / input: 1.0 A / 12 W
DC Centrifugal FansSanyo Denki
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace C70 9TD DC Centrifugal Fan dia. 70x20 mm

Brand Sanyo Denki·DC Centrifugal Fans

Available part numbers (1)

9TD12P6G001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9TD12P6G001Voltage: 12 VDC (10.8 to 13.2 V) | Speed: 9200 min-1 | Airflow: 1.13 m3/min (39.9 CFM) | Static pressure: 560 Pa (2.24 inH2O) | SPL: 61 dB(A) | Current / input: 1.0 A / 12 W
