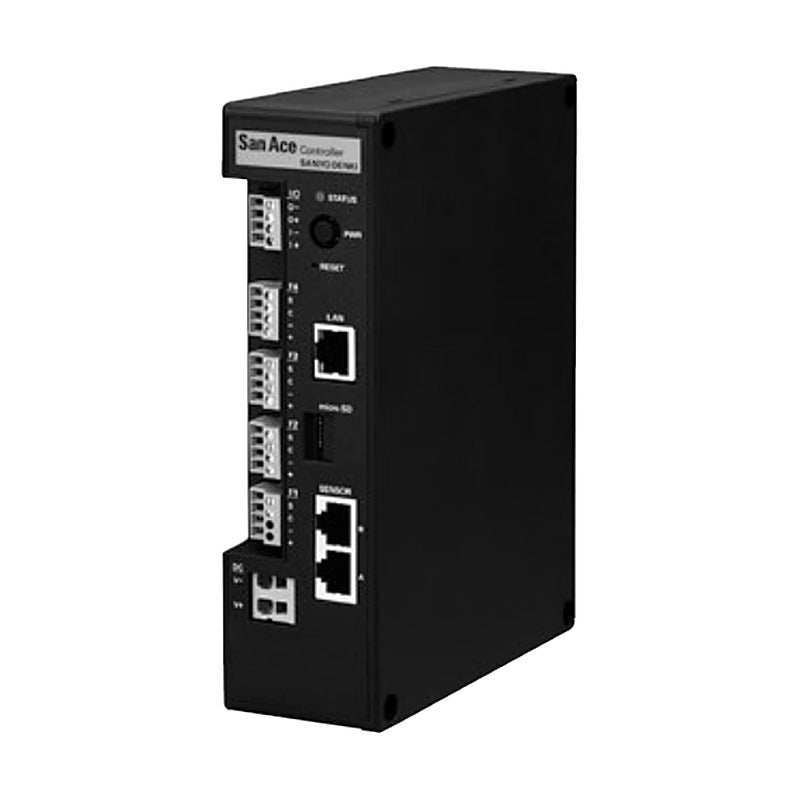

Sanyo Denki San Ace Controller 9CT1 (IoT Fan Controller)

Sanyo Denki San Ace Controller 9CT1 (IoT Fan Controller)

The San Ace Controller monitors and controls up to four PWM fans and four sensors, with wired or wireless LAN connectivity for remote monitoring and predictive maintenance.

Key features

  • Controls up to 4 fans with individual PWM speed settings (25 kHz)
  • Monitors fan speed, current, operating hours and sensor values remotely
  • Automatic fan speed control from temperature, humidity and air pressure sensors
  • Ethernet 10BASE-T/100BASE-TX; wireless LAN IEEE 802.11b/g/n on 9CT1-001/U001
  • Photocoupler-isolated external input and open-collector output
  • Compact 50 x 135 x 180 mm plastic casing, 450 g

Specifications

Control functions Manual / automatic
Control signal PWM, 25 kHz, VOH 3.3/5 V
Connectable fans Max. 4
Connectable sensors Max. 4 (temperature/humidity, air pressure, acceleration)
Power consumption 3.1 W
Operating temperature -20 to +70 C
Wired communication Ethernet 10BASE-T, 100BASE-TX
Size 50 (W) x 135 (D) x 180 (H) mm
Mass 450 g
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 584-587
9CT1-001 Rated voltage: 12/24/48 VDC | Wireless LAN: Yes | Max. output current: 20 A total | Certification: Standard
9CT1-002 Rated voltage: 12/24/48 VDC | Wireless LAN: No | Max. output current: 20 A total | Certification: Standard
9CT1-U001 Rated voltage: 12/24 VDC | Wireless LAN: Yes | Max. output current: 5 A (12 V) / 4 A (24 V) | Certification: cUL certified
Fan ControllersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace Controller 9CT1 (IoT Fan Controller)

Brand Sanyo Denki·Fan Controllers

Available part numbers (3)

9CT1-001, 9CT1-002, 9CT1-U001

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CT1-001Rated voltage: 12/24/48 VDC | Wireless LAN: Yes | Max. output current: 20 A total | Certification: Standard
9CT1-002Rated voltage: 12/24/48 VDC | Wireless LAN: No | Max. output current: 20 A total | Certification: Standard
9CT1-U001Rated voltage: 12/24 VDC | Wireless LAN: Yes | Max. output current: 5 A (12 V) / 4 A (24 V) | Certification: cUL certified
