• Sanyo Denki San Ace Controller Sensors and DIN Rail Adapter (9CT1)
1 1

Sanyo Denki San Ace Controller Sensors and DIN Rail Adapter (9CT1)

Sanyo Denki San Ace Controller Sensors and DIN Rail Adapter (9CT1)

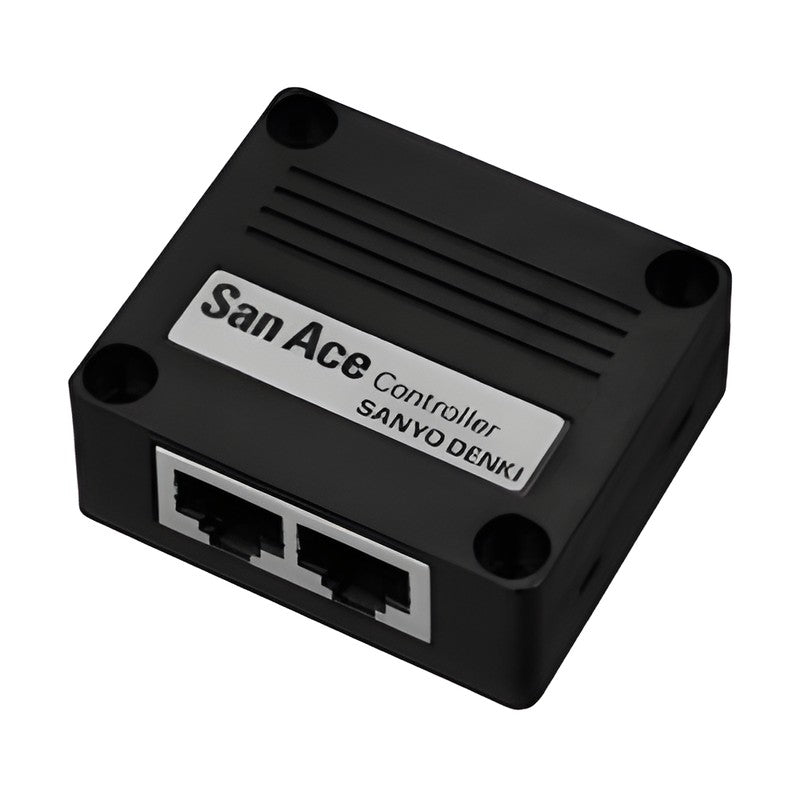

Dedicated sensors and DIN rail adapter for the San Ace Controller 9CT1.

Key features

  • Temperature/humidity sensor 9CT1-T: -20 to +70 C, 20 to 85% RH
  • Air pressure sensor 9CT1-P: 800 to 1100 hPa
  • Accelerometer 9CT1-A: 0 to 60 m/s2 total acceleration from three axes
  • Sensors: 53 x 46 x 22 mm plastic casing, 35 g, M3 screw mounting
  • DIN rail adapter 9CT1-D: stainless steel, 110 g, 2 screws included

Specifications

Compatible controller San Ace Controller 9CT1-001 / -002 / -U001
Sensor operating temperature -20 to +70 C
Sensor operating humidity 20 to 85% RH (non-condensing)
Sensor size 53 (W) x 46 (D) x 22 (H) mm
Sensor mass 35 g
Sensor mounting M3 screws, 0.44 N.m max.
Source Sanyo Denki San Ace General Catalog C1152B001 '25.10, p. 587
9CT1-T Item: Temperature / humidity sensor | Range: -20 to +70 C, 20 to 85% RH | Material: Plastic casing
9CT1-P Item: Air pressure sensor | Range: 800 to 1100 hPa | Material: Plastic casing
9CT1-A Item: Accelerometer | Range: 0 to 60 m/s2 | Material: Plastic casing
9CT1-D Item: DIN rail adapter | Range: - | Material: Stainless steel, 110 g
Fan AccessoriesSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki San Ace Controller Sensors and DIN Rail Adapter (9CT1)

Brand Sanyo Denki·Fan Accessories

Available part numbers (4)

9CT1-T, 9CT1-P, 9CT1-A, 9CT1-D

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
9CT1-TItem: Temperature / humidity sensor | Range: -20 to +70 C, 20 to 85% RH | Material: Plastic casing
9CT1-PItem: Air pressure sensor | Range: 800 to 1100 hPa | Material: Plastic casing
9CT1-AItem: Accelerometer | Range: 0 to 60 m/s2 | Material: Plastic casing
9CT1-DItem: DIN rail adapter | Range: - | Material: Stainless steel, 110 g
