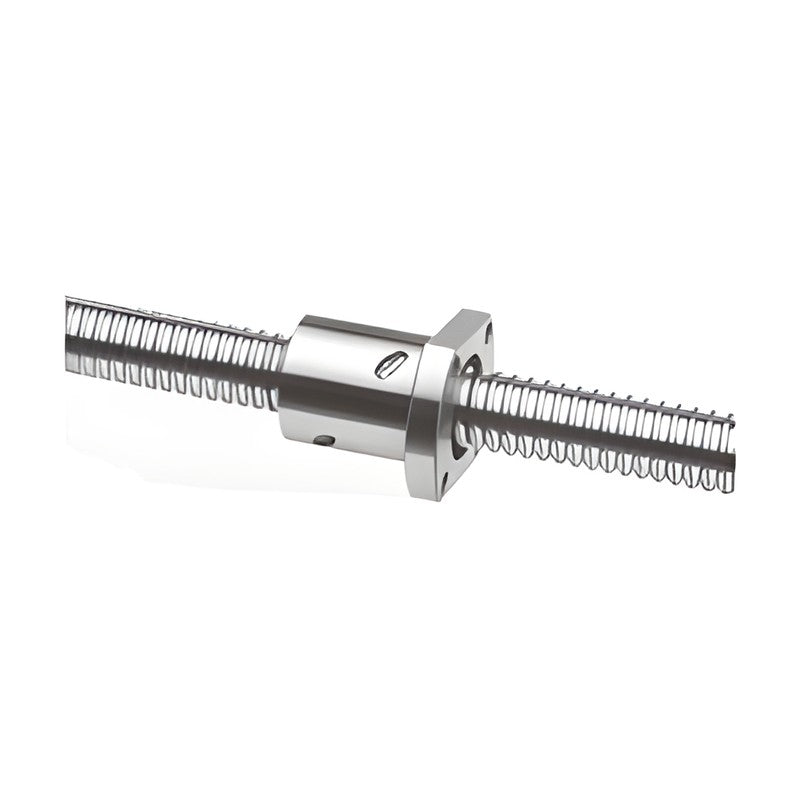

SBC Linear RM Rolled Ball Screw Shaft

SBC Linear RM Rolled Ball Screw Shaft

Rolled ball screw shafts for SBC nuts, sold cut to length; individual shafts are T7 grade.

Key features

  • Order as model number - shaft length - accuracy - surface treatment (e.g. RM2005-1500L-T7)
  • Individual screw shafts are only available in T7 grade

Specifications

Max. length 900-7000 mm by size
RM0601T Diameter: 6 mm | Lead: 1 mm | Max. length: 900 mm | Accuracy: T7
RM0801T Diameter: 8 mm | Lead: 1 mm | Max. length: 1200 mm | Accuracy: T7
RM0802T Diameter: 8 mm | Lead: 2 mm | Max. length: 1200 mm | Accuracy: T7
RM0802.5T Diameter: 8 mm | Lead: 2.5 mm | Max. length: 1200 mm | Accuracy: T7
RM1204T Diameter: 12 mm | Lead: 4 mm | Max. length: 1400 mm | Accuracy: T7
RM1205T Diameter: 12 mm | Lead: 5 mm | Max. length: 1400 mm | Accuracy: T7
RM1210T Diameter: 12 mm | Lead: 10 mm | Max. length: 1400 mm | Accuracy: T7
RM1520T Diameter: 15 mm | Lead: 20 mm | Max. length: 3000 mm | Accuracy: T7
RM1605 Diameter: 15.6 mm | Lead: 5 mm | Max. length: 3000 mm | Accuracy: P5, T7
RM1610 Diameter: 15.9 mm | Lead: 10 mm | Max. length: 3000 mm | Accuracy: T7
RM1616 Diameter: 15.9 mm | Lead: 16 mm | Max. length: 3000 mm | Accuracy: T7
RM2005 Diameter: 19.6 mm | Lead: 5 mm | Max. length: 4000 mm | Accuracy: P5, T7
RM2010T Diameter: 20 mm | Lead: 10 mm | Max. length: 3000 mm | Accuracy: T7
RM2010 Diameter: 19.9 mm | Lead: 10 mm | Max. length: 4000 mm | Accuracy: P3, P5, T7
RM2020 Diameter: 19.6 mm | Lead: 20 mm | Max. length: 4000 mm | Accuracy: P5, T7
RM2505 Diameter: 24.6 mm | Lead: 5 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM2510 Diameter: 24.6 mm | Lead: 10 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM2525 Diameter: 24.6 mm | Lead: 25 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM3205 Diameter: 31.6 mm | Lead: 5 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM3210 Diameter: 31.6 mm | Lead: 10 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM3220 Diameter: 32 mm | Lead: 20 mm | Max. length: 6000 mm | Accuracy: T7
RM3232 Diameter: 32 mm | Lead: 32 mm | Max. length: 6000 mm | Accuracy: T7
RM4005 Diameter: 39.6 mm | Lead: 5 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM4010 Diameter: 39.6 mm | Lead: 10 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM4020 Diameter: 39.6 mm | Lead: 20 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM4040 Diameter: 39.6 mm | Lead: 40 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM5010 Diameter: 49.5 mm | Lead: 10 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM5020 Diameter: 49.5 mm | Lead: 20 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM5050T Diameter: 50 mm | Lead: 50 mm | Max. length: 6000 mm | Accuracy: T7
RM6310 Diameter: 62.5 mm | Lead: 10 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM6320 Diameter: 62.5 mm | Lead: 20 mm | Max. length: 6000 mm | Accuracy: P5, T7
RM8010 Diameter: 79.5 mm | Lead: 10 mm | Max. length: 7000 mm | Accuracy: T7
Ball ScrewsSBC Linear
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC Linear RM Rolled Ball Screw Shaft

Brand SBC Linear·Ball Screws

Available part numbers (32)

RM0601T, RM0801T, RM0802T, RM0802.5T, RM1204T, RM1205T, RM1210T, RM1520T, RM1605, RM1610 + 22 more — see full table ↓
