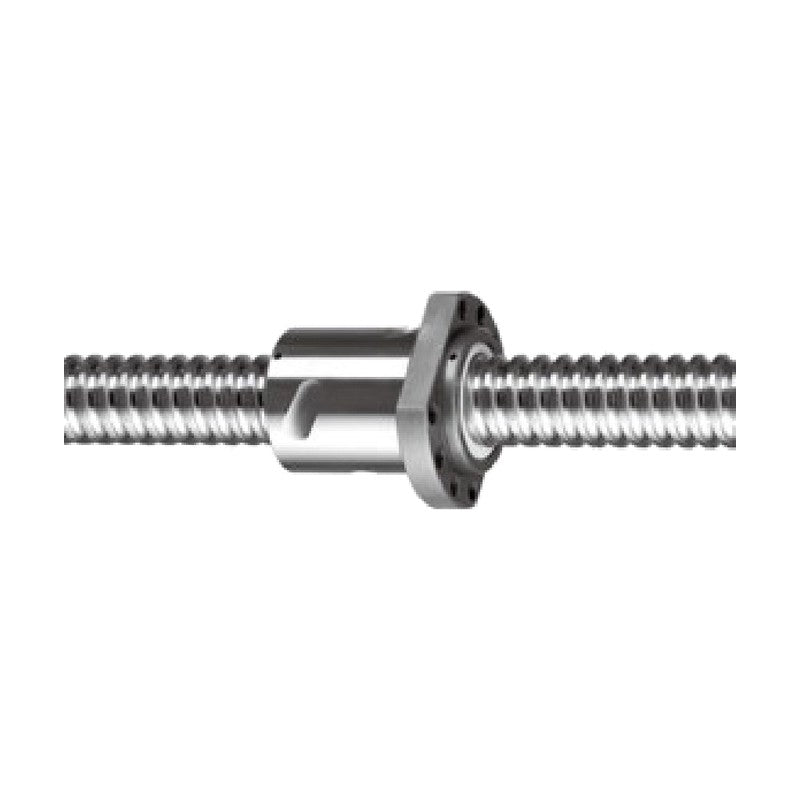

SBC Linear SDK DIN Precision Rolled Ball Screw Nut

DIN 69051-style flanged nuts for SBC precision rolled ball screws, 16-63 mm shaft diameter with 5 or 10 mm lead.

Key features

Follows DIN 69051-5; screw shaft rolled to high accuracy with thread-ground nut raceways
High-accuracy lead in P3, P5 and T7 grades
High rigidity, high accuracy and smooth motion; standard sizes held in stock

Specifications

Standard	DIN 69051-5
Axial backlash Sa	0.05-0.06 mm

SDK1605		Screw shaft dia.: 15.6 mm \| Lead: 5 mm \| Ball diameter: 3.5 mm \| Circuits: 3 \| Nut dia. D1 (g6): 28 mm \| Nut length: 48.5 mm \| Ca: 9.5 kN \| Coa: 10.9 kN \| Nut mass: 0.25 kg \| Max. length: 3000 mm
SDK2005		Screw shaft dia.: 19.6 mm \| Lead: 5 mm \| Ball diameter: 3.5 mm \| Circuits: 3 \| Nut dia. D1 (g6): 36 mm \| Nut length: 48.5 mm \| Ca: 11.5 kN \| Coa: 15.5 kN \| Nut mass: 0.35 kg \| Max. length: 4000 mm
SDK2010		Screw shaft dia.: 19.9 mm \| Lead: 10 mm \| Ball diameter: 3.969 mm \| Circuits: 3 \| Nut dia. D1 (g6): 36 mm \| Nut length: 69 mm \| Ca: 13.6 kN \| Coa: 19 kN \| Nut mass: 0.35 kg \| Max. length: 4000 mm
SDK2505		Screw shaft dia.: 24.6 mm \| Lead: 5 mm \| Ball diameter: 3.5 mm \| Circuits: 3 \| Nut dia. D1 (g6): 40 mm \| Nut length: 49 mm \| Ca: 13.1 kN \| Coa: 20.2 kN \| Nut mass: 0.37 kg \| Max. length: 5000 mm
SDK2510		Screw shaft dia.: 24.6 mm \| Lead: 10 mm \| Ball diameter: 3.5 mm \| Circuits: 3 \| Nut dia. D1 (g6): 40 mm \| Nut length: 80 mm \| Ca: 19 kN \| Coa: 38 kN \| Nut mass: 0.45 kg \| Max. length: 5000 mm
SDK3205		Screw shaft dia.: 31.6 mm \| Lead: 5 mm \| Ball diameter: 3.5 mm \| Circuits: 4 \| Nut dia. D1 (g6): 50 mm \| Nut length: 57 mm \| Ca: 19.3 kN \| Coa: 36.3 kN \| Nut mass: 0.7 kg \| Max. length: 6000 mm
SDK3210		Screw shaft dia.: 31.6 mm \| Lead: 10 mm \| Ball diameter: 5.556 mm \| Circuits: 3 \| Nut dia. D1 (g6): 50 mm \| Nut length: 73 mm \| Ca: 26.4 kN \| Coa: 39 kN \| Nut mass: 0.8 kg \| Max. length: 6000 mm
SDK4005		Screw shaft dia.: 39.6 mm \| Lead: 5 mm \| Ball diameter: 3.5 mm \| Circuits: 5 \| Nut dia. D1 (g6): 63 mm \| Nut length: 66 mm \| Ca: 26.3 kN \| Coa: 59.2 kN \| Nut mass: 1.2 kg \| Max. length: 6000 mm
SDK4010		Screw shaft dia.: 39.6 mm \| Lead: 10 mm \| Ball diameter: 7.144 mm \| Circuits: 4 \| Nut dia. D1 (g6): 63 mm \| Nut length: 88.5 mm \| Ca: 64.9 kN \| Coa: 109 kN \| Nut mass: 1.4 kg \| Max. length: 6000 mm
SDK5010		Screw shaft dia.: 49.5 mm \| Lead: 10 mm \| Ball diameter: 7.144 mm \| Circuits: 4 \| Nut dia. D1 (g6): 75 mm \| Nut length: 92 mm \| Ca: 66.4 kN \| Coa: 134.3 kN \| Nut mass: 2 kg \| Max. length: 6000 mm
SDK6310		Screw shaft dia.: 62.5 mm \| Lead: 10 mm \| Ball diameter: 7.144 mm \| Circuits: 5 \| Nut dia. D1 (g6): 90 mm \| Nut length: 103.5 mm \| Ca: 93.8 kN \| Coa: 229.7 kN \| Nut mass: 3 kg \| Max. length: 6000 mm
