SBC Linear SH Bellows for SBI Linear Guides

SBC Linear SH Bellows for SBI Linear Guides

Protective bellows covers for SBI linear guide rails, in A (standard) and DA (low) heights.

Key features

  • Rail end mounting holes are required when bellows are fitted
  • Select a side grease fitting when using bellows

Specifications

Ordering Model - collapsed length / extended length (e.g. SH25A-70/420)

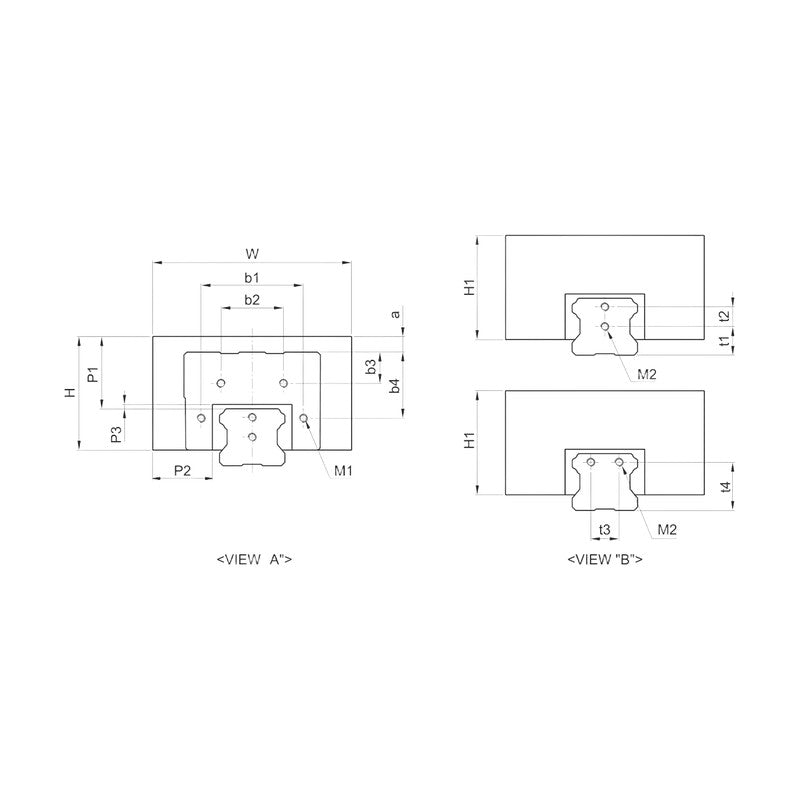

SH15A For rail: SBI15 | Width W: 50 mm | Height H: 25 mm | Extension ratio: 6
SH15DA For rail: SBI15 | Width W: 50 mm | Height H: 20 mm | Extension ratio: 4
SH20A For rail: SBI20 | Width W: 60 mm | Height H: 29 mm | Extension ratio: 6
SH20DA For rail: SBI20 | Width W: 60 mm | Height H: 24 mm | Extension ratio: 4
SH25A For rail: SBI25 | Width W: 70 mm | Height H: 35 mm | Extension ratio: 7
SH25DA For rail: SBI25 | Width W: 70 mm | Height H: 30 mm | Extension ratio: 5
SH30A For rail: SBI30 | Width W: 80 mm | Height H: 36 mm | Extension ratio: 7
SH30DA For rail: SBI30 | Width W: 80 mm | Height H: 33 mm | Extension ratio: 6
SH35DA For rail: SBI35 | Width W: 85 mm | Height H: 39 mm | Extension ratio: 7
SH45DA For rail: SBI45 | Width W: 100 mm | Height H: 48 mm | Extension ratio: 7
SH55DA For rail: SBI55 | Width W: 110 mm | Height H: 56 mm | Extension ratio: 8
SH65DA For rail: SBI65 | Width W: 130 mm | Height H: 69 mm | Extension ratio: 8
Linear Guide AccessoriesSBC Linear
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC Linear SH Bellows for SBI Linear Guides

Brand SBC Linear·Linear Guide Accessories

Available part numbers (12)

SH15A, SH15DA, SH20A, SH20DA, SH25A, SH25DA, SH30A, SH30DA, SH35DA, SH45DA + 2 more — see full table ↓

How to order

Send the SBC Linear part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH15AFor rail: SBI15 | Width W: 50 mm | Height H: 25 mm | Extension ratio: 6
SH15DAFor rail: SBI15 | Width W: 50 mm | Height H: 20 mm | Extension ratio: 4
SH20AFor rail: SBI20 | Width W: 60 mm | Height H: 29 mm | Extension ratio: 6
SH20DAFor rail: SBI20 | Width W: 60 mm | Height H: 24 mm | Extension ratio: 4
SH25AFor rail: SBI25 | Width W: 70 mm | Height H: 35 mm | Extension ratio: 7
SH25DAFor rail: SBI25 | Width W: 70 mm | Height H: 30 mm | Extension ratio: 5
SH30AFor rail: SBI30 | Width W: 80 mm | Height H: 36 mm | Extension ratio: 7
SH30DAFor rail: SBI30 | Width W: 80 mm | Height H: 33 mm | Extension ratio: 6
SH35DAFor rail: SBI35 | Width W: 85 mm | Height H: 39 mm | Extension ratio: 7
SH45DAFor rail: SBI45 | Width W: 100 mm | Height H: 48 mm | Extension ratio: 7
SH55DAFor rail: SBI55 | Width W: 110 mm | Height H: 56 mm | Extension ratio: 8
SH65DAFor rail: SBI65 | Width W: 130 mm | Height H: 69 mm | Extension ratio: 8
