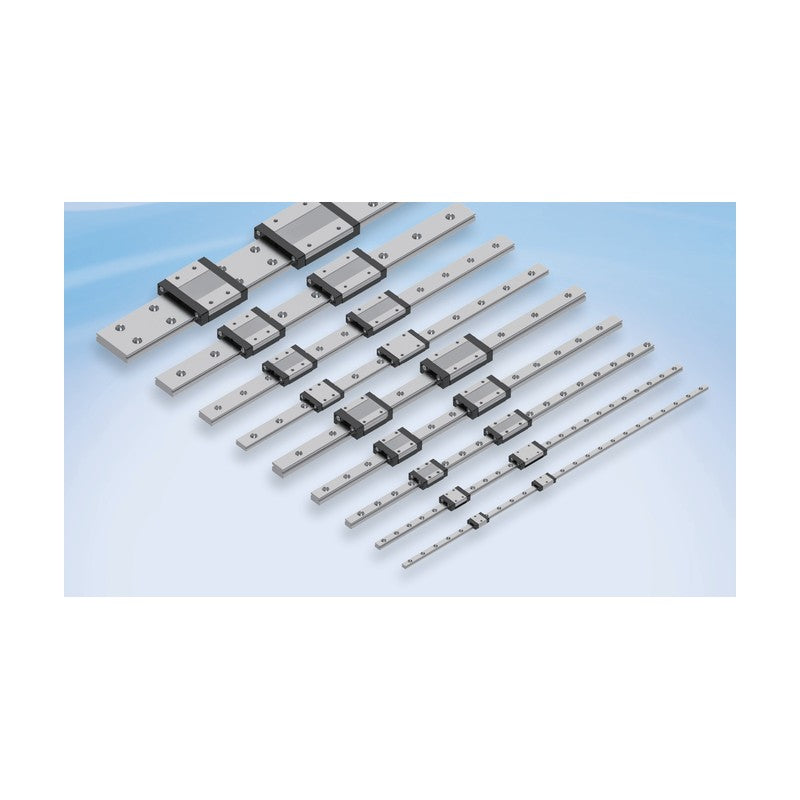

SBC Linear SMNR / SMWR Miniature Guide Rail

SBC Linear SMNR / SMWR Miniature Guide Rail

Separate guide rails for SMN and SMW miniature linear guides, supplied in standard or custom lengths.

Key features

  • Rail length L = (n-1) x P + 2 x E; end distance E should not exceed P/2
  • Size 5 rails are supplied in stainless steel only
  • Materials: bearing steel, stainless steel (M), chrome-coated (HC) or Hicoating (NC) steel

Specifications

Accuracy grades C, H, P
Standard length Size 5 and 7: 1000 mm (max. 2000 mm); size 9-15: 2000 mm
SMNR5 Rail width: 5 mm | Bolt pitch P: 15 mm | Standard end distance E: 5 mm | Weight: 0.15 kg/m
SMNR7 Rail width: 7 mm | Bolt pitch P: 15 mm | Standard end distance E: 5 mm | Weight: 0.22 kg/m
SMNR9 Rail width: 9 mm | Bolt pitch P: 20 mm | Standard end distance E: 7.5 mm | Weight: 0.38 kg/m
SMNR12 Rail width: 12 mm | Bolt pitch P: 25 mm | Standard end distance E: 10 mm | Weight: 0.65 kg/m
SMNR15 Rail width: 15 mm | Bolt pitch P: 40 mm | Standard end distance E: 15 mm | Weight: 1.06 kg/m
SMWR5 Rail width: 10 mm | Bolt pitch P: 20 mm | Standard end distance E: 5 mm | Weight: 0.34 kg/m
SMWR7 Rail width: 14 mm | Bolt pitch P: 30 mm | Standard end distance E: 10 mm | Weight: 0.51 kg/m
SMWR9 Rail width: 18 mm | Bolt pitch P: 30 mm | Standard end distance E: 10 mm | Weight: 0.91 kg/m
SMWR12 Rail width: 24 mm | Bolt pitch P: 40 mm | Standard end distance E: 15 mm | Weight: 1.49 kg/m
SMWR15 Rail width: 42 mm | Bolt pitch P: 40 mm | Standard end distance E: 15 mm | Weight: 2.86 kg/m
Linear Guide RailsSBC Linear
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SBC Linear SMNR / SMWR Miniature Guide Rail

Brand SBC Linear·Linear Guide Rails

Available part numbers (10)

SMNR5, SMNR7, SMNR9, SMNR12, SMNR15, SMWR5, SMWR7, SMWR9, SMWR12, SMWR15

How to order

Send the SBC Linear part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMNR5Rail width: 5 mm | Bolt pitch P: 15 mm | Standard end distance E: 5 mm | Weight: 0.15 kg/m
SMNR7Rail width: 7 mm | Bolt pitch P: 15 mm | Standard end distance E: 5 mm | Weight: 0.22 kg/m
SMNR9Rail width: 9 mm | Bolt pitch P: 20 mm | Standard end distance E: 7.5 mm | Weight: 0.38 kg/m
SMNR12Rail width: 12 mm | Bolt pitch P: 25 mm | Standard end distance E: 10 mm | Weight: 0.65 kg/m
SMNR15Rail width: 15 mm | Bolt pitch P: 40 mm | Standard end distance E: 15 mm | Weight: 1.06 kg/m
SMWR5Rail width: 10 mm | Bolt pitch P: 20 mm | Standard end distance E: 5 mm | Weight: 0.34 kg/m
SMWR7Rail width: 14 mm | Bolt pitch P: 30 mm | Standard end distance E: 10 mm | Weight: 0.51 kg/m
SMWR9Rail width: 18 mm | Bolt pitch P: 30 mm | Standard end distance E: 10 mm | Weight: 0.91 kg/m
SMWR12Rail width: 24 mm | Bolt pitch P: 40 mm | Standard end distance E: 15 mm | Weight: 1.49 kg/m
SMWR15Rail width: 42 mm | Bolt pitch P: 40 mm | Standard end distance E: 15 mm | Weight: 2.86 kg/m
