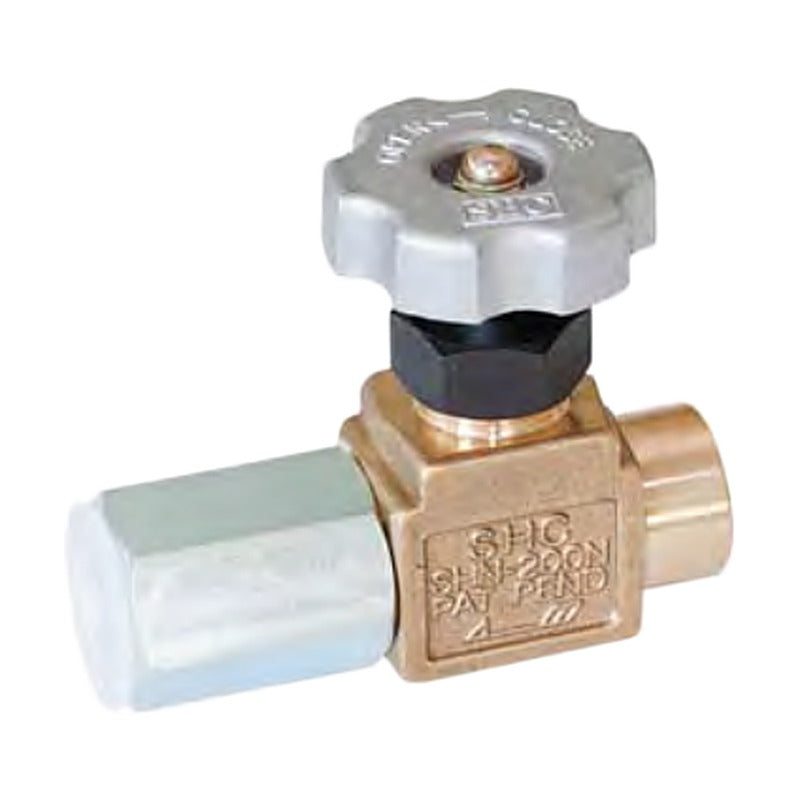

SHC Pressure Gauge Valves and Adapters (PT 1/4 to PT 1/2)

SHC Pressure Gauge Valves and Adapters (PT 1/4 to PT 1/2)

SHC pressure gauge valves (needle and push types) and adapters for isolating and connecting pressure gauges.

Key features

  • Brass, steel and STS304 bodies
  • Up to 340 bar
  • Needle and push-type valves
  • SGA gauge adapters

Specifications

Use Pressure gauge isolation
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Gauge Valve
Series SHN / GCT / GNT / GT / SUT / GN / GD / SGA / GV
Ordering By printed part number
Source SHC E-Catalog 2018 V1.0, p.60
SHN-200N Thread: PT 1/4 (02) / 3/8 (03) / 1/2 (04 | Max. pressure: 210 bar | Body: Brass
GCT-02 Thread: PT 1/4 (02) | Max. pressure: 210 bar | Body: Steel
GNT-02 Thread: PT 1/4 (02) | Max. pressure: 210 bar | Body: Steel
GT Thread: PT 3/8 (03) / 1/2 (04) | Max. pressure: 140 bar | Body: Steel
SUT Thread: PT 1/4 (02) / 3/8 (03) / 1/2 (04 | Max. pressure: 340 bar | Body: STS304
GN Thread: PT 1/4 (02) | Max. pressure: 10 bar | Body: Brass
GD-PT Thread: PT 1/4 (02) / 3/8 (03) | Max. pressure: 210 bar | Body: Brass
SGA Thread: PT 1/4 (02) / 3/8 (03) / 1/2 (04 | Max. pressure: 210 bar | Body: Brass
GV Thread: PT 1/4 (02) | Max. pressure: 250 bar | Body: Brass
Gauge ValveSHC
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC Pressure Gauge Valves and Adapters (PT 1/4 to PT 1/2)

Brand SHC·Gauge Valve

Available part numbers (9)

SHN-200N, GCT-02, GNT-02, GT, SUT, GN, GD-PT, SGA, GV

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SHN-200NThread: PT 1/4 (02) / 3/8 (03) / 1/2 (04 | Max. pressure: 210 bar | Body: Brass
GCT-02Thread: PT 1/4 (02) | Max. pressure: 210 bar | Body: Steel
GNT-02Thread: PT 1/4 (02) | Max. pressure: 210 bar | Body: Steel
GTThread: PT 3/8 (03) / 1/2 (04) | Max. pressure: 140 bar | Body: Steel
SUTThread: PT 1/4 (02) / 3/8 (03) / 1/2 (04 | Max. pressure: 340 bar | Body: STS304
GNThread: PT 1/4 (02) | Max. pressure: 10 bar | Body: Brass
GD-PTThread: PT 1/4 (02) / 3/8 (03) | Max. pressure: 210 bar | Body: Brass
SGAThread: PT 1/4 (02) / 3/8 (03) / 1/2 (04 | Max. pressure: 210 bar | Body: Brass
GVThread: PT 1/4 (02) | Max. pressure: 250 bar | Body: Brass
