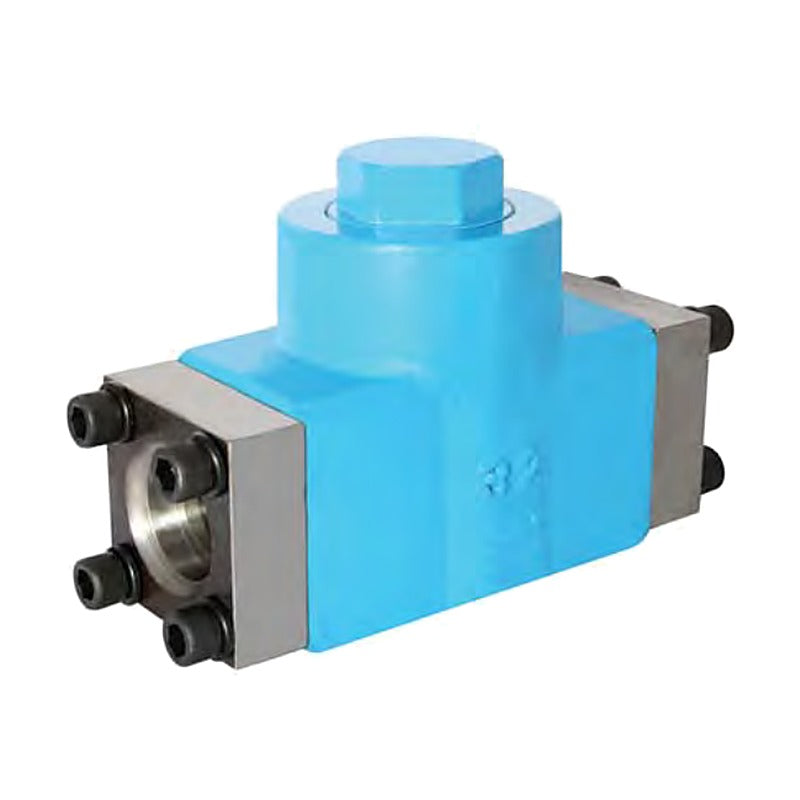

SHC SFC-4211 Check Valve (flange type, 10A to 80A)

SFC-4211 flange type check valves prevent reverse flow in hydraulic lines up to 210 bar with high flow capacity.

Key features

Ductile cast iron
Max. working pressure 210 bar
Cracking pressure 0.5 or 5 bar
KS B 1521 SSA flanges

Specifications

Body	Ductile cast iron
Max. working pressure	210 bar
Cracking pressure	0.5 / 5 bar
Brand	SHC
Manufacturer	Sejin Hydraulics Mfg. Co. (Korea)
Product type	Check Valve
Source	SHC E-Catalog 2018 V1.0, p.57

SFC-10A		Flange: 10A \| A: 124 mm \| H: 90 mm \| Lift: 6 mm
SFC-15A		Flange: SSA-15A \| A: 134 mm \| H: 90 mm \| Lift: 8 mm
SFC-20A		Flange: SSA-20A \| A: 144 mm \| H: 115 mm \| Lift: 10 mm
SFC-25A		Flange: SSA-25A \| A: 191 mm \| H: 132 mm \| Lift: 10 mm
SFC-32A		Flange: SSA-32A \| A: 206 mm \| H: 150 mm \| Lift: 10 mm
SFC-40A		Flange: SSA-40A \| A: 232 mm \| H: 166 mm \| Lift: 14 mm
SFC-50A		Flange: SSA-50A \| A: 147 mm \| H: 190 mm \| Lift: 17 mm
SFC-65A		Flange: SSA-65A \| A: 300 mm \| H: 217 mm \| Lift: 22 mm
SFC-80A		Flange: SSA-80A \| A: 340 mm \| H: 260 mm \| Lift: 27 mm

Check ValveSHC

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SFC-4211 Check Valve (flange type, 10A to 80A)

Brand SHC·Check Valve

Available part numbers (9)

SFC-10A, SFC-15A, SFC-20A, SFC-25A, SFC-32A, SFC-40A, SFC-50A, SFC-65A, SFC-80A
