SHC SSL Filter Housing (multi cartridge)

SHC SSL Filter Housing (multi cartridge)

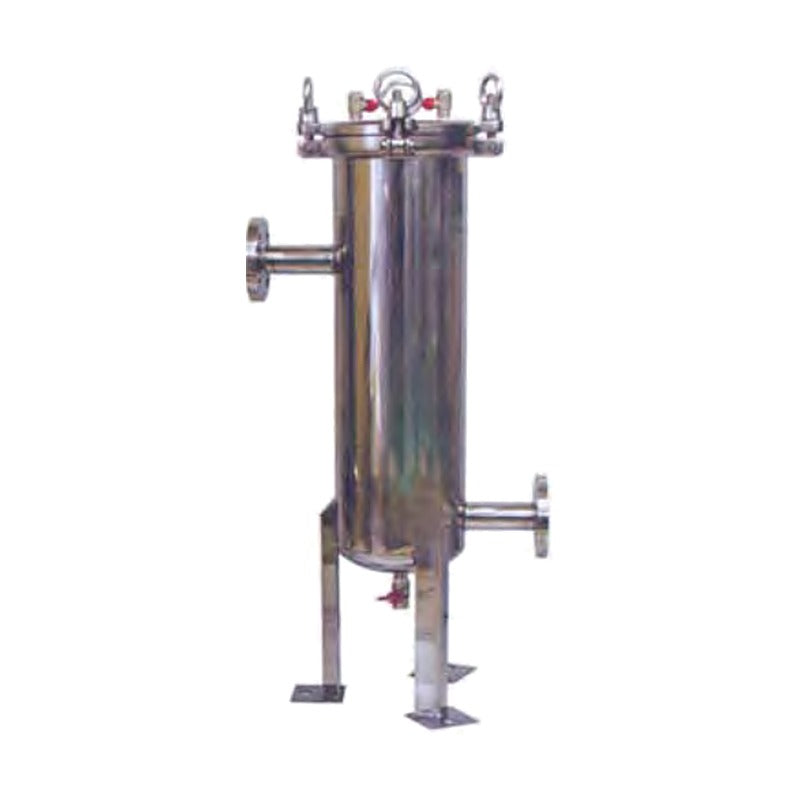

SSL multi-element filter housings in STS304 hold 3 to 19 cartridges for higher flow fine filtration.

Key features

  • STS304 standard, STS316 optional
  • Max. 10 bar
  • 3 to 19 cartridges
  • Cartridges sold separately

Specifications

Material STS304 (STS316 option)
Max. working pressure 10 bar
Cartridge Not included
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Filter Housing
Source SHC E-Catalog 2018 V1.0, p.53
SSL-3 Flange: 40A | Cartridges: 3 | Length: 500 mm | Flow: 8 m3/h
SSL-6 Flange: 50A | Cartridges: 6 | Length: 500 mm | Flow: 18 m3/h
SSL-10 Flange: 65A | Cartridges: 10 | Length: 750 mm | Flow: 27 m3/h
SSL-12 Flange: 80A | Cartridges: 12 | Length: 750 mm | Flow: 35 m3/h
SSL-15 Flange: 80A | Cartridges: 15 | Length: 750 mm | Flow: 45 m3/h
SSL-19 Flange: 80A | Cartridges: 19 | Length: 750 mm | Flow: 60 m3/h
Filter HousingSHC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC SSL Filter Housing (multi cartridge)

Brand SHC·Filter Housing

Available part numbers (6)

SSL-3, SSL-6, SSL-10, SSL-12, SSL-15, SSL-19
