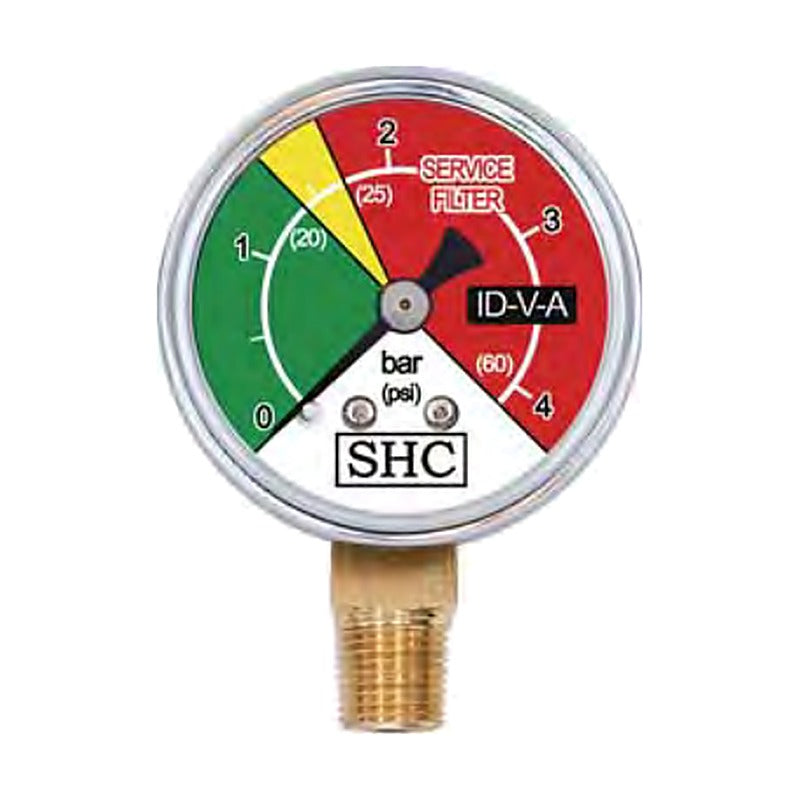

SHC Visual Filter Indicators (VID / ID / SVID / HVID)

SHC Visual Filter Indicators (VID / ID / SVID / HVID)

SHC visual clogging indicators for suction and return filters, including vacuum and pressure gauge types and SVID/HVID differential indicators.

Key features

  • Vacuum and pressure gauge indicators
  • Red/yellow/green zones
  • SVID for SM/SLF filters
  • HVID for HSV suction filters

Specifications

Use Filter clogging indication
Brand SHC
Manufacturer Sejin Hydraulics Mfg. Co. (Korea)
Product type Filter Indicator
Series VID / ID / SVID / HVID
Ordering By printed part number
Source SHC E-Catalog 2018 V1.0, p.67
VID-VP-D Type: Vacuum/pressure visual gauge (back | Port: PT 1/8 | Range: -1 to 1.5 bar
ID-VAC Type: Vacuum visual gauge (A-type bottom | Port: PT 1/8 | Range: 0 to -1 bar (-76 cmHg)
VID-16K Type: Pressure visual gauge (A-type or D | Port: PT 1/8 | Range: 0 to 16 bar
ID-V-A Type: Return filter visual gauge (bottom | Port: PT 1/8 | Range: 0 to 4 bar
ID-V-D Type: Return filter visual gauge (back p | Port: PT 1/8 | Range: 0 to 4 bar
SVID Type: Differential visual indicator for | Port: PF 1/2 | Range: Red at 1.5 bar / all red 3 bar
HVID Type: Visual indicator for HSV suction f | Port: PF 1/2 | Range: Red at 0.12 bar / all red 0.2 bar
Filter IndicatorSHC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SHC Visual Filter Indicators (VID / ID / SVID / HVID)

Brand SHC·Filter Indicator

Available part numbers (7)

VID-VP-D, ID-VAC, VID-16K, ID-V-A, ID-V-D, SVID, HVID

How to order

Send the SHC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VID-VP-DType: Vacuum/pressure visual gauge (back | Port: PT 1/8 | Range: -1 to 1.5 bar
ID-VACType: Vacuum visual gauge (A-type bottom | Port: PT 1/8 | Range: 0 to -1 bar (-76 cmHg)
VID-16KType: Pressure visual gauge (A-type or D | Port: PT 1/8 | Range: 0 to 16 bar
ID-V-AType: Return filter visual gauge (bottom | Port: PT 1/8 | Range: 0 to 4 bar
ID-V-DType: Return filter visual gauge (back p | Port: PT 1/8 | Range: 0 to 4 bar
SVIDType: Differential visual indicator for | Port: PF 1/2 | Range: Red at 1.5 bar / all red 3 bar
HVIDType: Visual indicator for HSV suction f | Port: PF 1/2 | Range: Red at 0.12 bar / all red 0.2 bar
