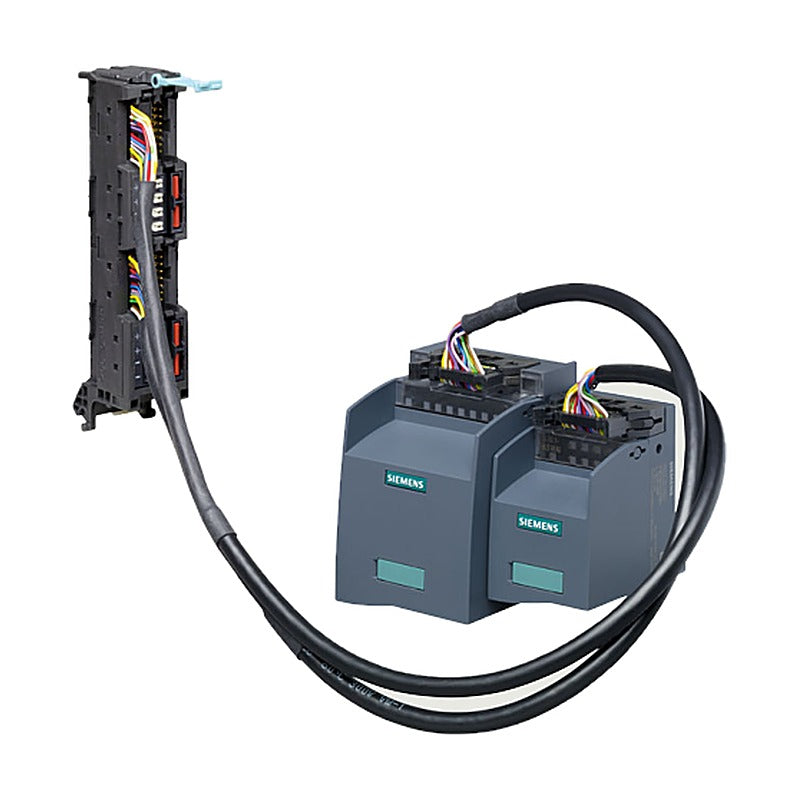

Siemens SIMATIC TOP connect Connection Modules TP1/TP2/TP3/TPA/TPR

Siemens SIMATIC TOP connect Connection Modules TP1/TP2/TP3/TPA/TPR

SIMATIC TOP connect connection modules (terminal, relay, optocoupler and analog) and accessories for S7-1500 / ET 200MP system cabling.

Key features

  • TP1/TP3 1-wire and 3-wire terminal modules for 16- or 50-pin cables
  • TPRo/TPRi relay and TPOo optocoupler interface modules
  • TP2 for 2 A outputs and TPA for analog modules
  • Push-in or screw-type terminals, with or without LEDs
  • Accessories: relays, SSRs, shield plates, covers, fuses, labels

Specifications

Brand Siemens
Product line SIMATIC TOP connect
Category PLC Accessories
System SIMATIC S7-1500 / ET 200MP
Variants listed 55
Source Siemens Catalog ST 70 · 2026, p. 1034
6ES7924-2AA20-0AC0 Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-2AA20-0AA0 Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-2AA20-0BC0 Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2AA20-0BA0 Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-2AK20-0BC0 Type: TP1 | Description: 1-wire, 50-pin, sourcing input | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2AK20-0BA0 Type: TP1 | Description: 1-wire, 50-pin, sourcing input | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-2AM20-0BC0 Type: TP1 | Description: 1-wire, 50-pin, mid-point signal | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2AM20-0BA0 Type: TP1 | Description: 1-wire, 50-pin, mid-point signal | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-2CA20-0AC0 Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-2CA20-0AA0 Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-2CA20-0BC0 Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2CA20-0BA0 Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-0BB20-0AC0 Type: TP2 | Description: Digital output modules 2 A | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-0BB20-0AA0 Type: TP2 | Description: Digital output modules 2 A | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-0CC20-0AC0 Type: TPA | Description: Analog modules, 16-pin | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-0CC20-0AA0 Type: TPA | Description: Analog modules, 16-pin | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-2CC20-0AC0 Type: TPA | Description: Analog modules, 50-pin | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-2CC20-0AA0 Type: TPA | Description: Analog modules, 50-pin | Terminals: Screw-type | LEDs / pack: Without LEDs
3RT2900-1SB20 Type: Accessory | Description: Labeling strip for connection modules | Terminals: - | LEDs / pack: PU 340 units
6ES7928-1AA20-4AA0 Type: Accessory | Description: Shield plate, connection module 8 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-1BA20-4AA0 Type: Accessory | Description: Shield plate, analog 32 bits | Terminals: - | LEDs / pack: 4 units
6ES7390-5AB00-0AA0 Type: Accessory | Description: Shield connection clamp 2x2-6 mm | Terminals: - | LEDs / pack: -
6ES7390-5BA00-0AA0 Type: Accessory | Description: Shield connection clamp 3-8 mm | Terminals: - | LEDs / pack: -
6ES7390-5CA00-0AA0 Type: Accessory | Description: Shield connection clamp 4-13 mm | Terminals: - | LEDs / pack: -
6ES7928-3AA20-4AA0 Type: Accessory | Description: Relay for TPRo, 24 V DC coil | Terminals: - | LEDs / pack: 4 units
6ES7928-3EA20-4AA0 Type: Accessory | Description: Relay for TPRi, 110 V AC coil | Terminals: - | LEDs / pack: 4 units
6ES7928-3BA20-4AA0 Type: Accessory | Description: Relay for TPRi, 230 V AC coil | Terminals: - | LEDs / pack: 4 units
6ES7928-3CA20-4AA0 Type: Accessory | Description: SSR for TPRo, 24 V DC / 230 V AC | Terminals: - | LEDs / pack: 4 units
6ES7928-3DA20-4AA0 Type: Accessory | Description: SSR for TPRo, 24 V DC / 60 V DC | Terminals: - | LEDs / pack: 4 units
6ES7928-5AA20-4AA0 Type: Accessory | Description: Housing cover TP1 8 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-5BA20-4AA0 Type: Accessory | Description: Housing cover TP2/TP3/TPA 8 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-5CA20-4AA0 Type: Accessory | Description: Housing cover TP3 32 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-5DA20-4AA0 Type: Accessory | Description: Housing cover TP1 32/TP3 sw./TPRo 8 | Terminals: - | LEDs / pack: 4 units
6ES7928-5EA20-4AA0 Type: Accessory | Description: Housing cover TPA32/TP3fuse/TPRi/TPOo | Terminals: - | LEDs / pack: 4 units
6ES7928-6AA20-0AA0 Type: Accessory | Description: Fuse 0.6 A | Terminals: - | LEDs / pack: 10 units
PLC AccessoriesSiemens
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SIMATIC TOP connect Connection Modules TP1/TP2/TP3/TPA/TPR

Brand Siemens·PLC Accessories

Available part numbers (35)

6ES7924-2AA20-0AC0, 6ES7924-2AA20-0AA0, 6ES7924-2AA20-0BC0, 6ES7924-2AA20-0BA0, 6ES7924-2AK20-0BC0, 6ES7924-2AK20-0BA0, 6ES7924-2AM20-0BC0, 6ES7924-2AM20-0BA0, 6ES7924-2CA20-0AC0, 6ES7924-2CA20-0AA0 + 25 more — see full table ↓

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6ES7924-2AA20-0AC0Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-2AA20-0AA0Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-2AA20-0BC0Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2AA20-0BA0Type: TP1 | Description: 1-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-2AK20-0BC0Type: TP1 | Description: 1-wire, 50-pin, sourcing input | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2AK20-0BA0Type: TP1 | Description: 1-wire, 50-pin, sourcing input | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-2AM20-0BC0Type: TP1 | Description: 1-wire, 50-pin, mid-point signal | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2AM20-0BA0Type: TP1 | Description: 1-wire, 50-pin, mid-point signal | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-2CA20-0AC0Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-2CA20-0AA0Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-2CA20-0BC0Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Push-in | LEDs / pack: With LEDs
6ES7924-2CA20-0BA0Type: TP3 | Description: 3-wire, 50-pin cable | Terminals: Screw-type | LEDs / pack: With LEDs
6ES7924-0BB20-0AC0Type: TP2 | Description: Digital output modules 2 A | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-0BB20-0AA0Type: TP2 | Description: Digital output modules 2 A | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-0CC20-0AC0Type: TPA | Description: Analog modules, 16-pin | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-0CC20-0AA0Type: TPA | Description: Analog modules, 16-pin | Terminals: Screw-type | LEDs / pack: Without LEDs
6ES7924-2CC20-0AC0Type: TPA | Description: Analog modules, 50-pin | Terminals: Push-in | LEDs / pack: Without LEDs
6ES7924-2CC20-0AA0Type: TPA | Description: Analog modules, 50-pin | Terminals: Screw-type | LEDs / pack: Without LEDs
3RT2900-1SB20Type: Accessory | Description: Labeling strip for connection modules | Terminals: - | LEDs / pack: PU 340 units
6ES7928-1AA20-4AA0Type: Accessory | Description: Shield plate, connection module 8 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-1BA20-4AA0Type: Accessory | Description: Shield plate, analog 32 bits | Terminals: - | LEDs / pack: 4 units
6ES7390-5AB00-0AA0Type: Accessory | Description: Shield connection clamp 2x2-6 mm | Terminals: - | LEDs / pack: -
6ES7390-5BA00-0AA0Type: Accessory | Description: Shield connection clamp 3-8 mm | Terminals: - | LEDs / pack: -
6ES7390-5CA00-0AA0Type: Accessory | Description: Shield connection clamp 4-13 mm | Terminals: - | LEDs / pack: -
6ES7928-3AA20-4AA0Type: Accessory | Description: Relay for TPRo, 24 V DC coil | Terminals: - | LEDs / pack: 4 units
6ES7928-3EA20-4AA0Type: Accessory | Description: Relay for TPRi, 110 V AC coil | Terminals: - | LEDs / pack: 4 units
6ES7928-3BA20-4AA0Type: Accessory | Description: Relay for TPRi, 230 V AC coil | Terminals: - | LEDs / pack: 4 units
6ES7928-3CA20-4AA0Type: Accessory | Description: SSR for TPRo, 24 V DC / 230 V AC | Terminals: - | LEDs / pack: 4 units
6ES7928-3DA20-4AA0Type: Accessory | Description: SSR for TPRo, 24 V DC / 60 V DC | Terminals: - | LEDs / pack: 4 units
6ES7928-5AA20-4AA0Type: Accessory | Description: Housing cover TP1 8 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-5BA20-4AA0Type: Accessory | Description: Housing cover TP2/TP3/TPA 8 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-5CA20-4AA0Type: Accessory | Description: Housing cover TP3 32 bits | Terminals: - | LEDs / pack: 4 units
6ES7928-5DA20-4AA0Type: Accessory | Description: Housing cover TP1 32/TP3 sw./TPRo 8 | Terminals: - | LEDs / pack: 4 units
6ES7928-5EA20-4AA0Type: Accessory | Description: Housing cover TPA32/TP3fuse/TPRi/TPOo | Terminals: - | LEDs / pack: 4 units
6ES7928-6AA20-0AA0Type: Accessory | Description: Fuse 0.6 A | Terminals: - | LEDs / pack: 10 units
