• Siemens PSN130S 30 V DC Power Supply and AS-i Data Decoupling Modules
1 1

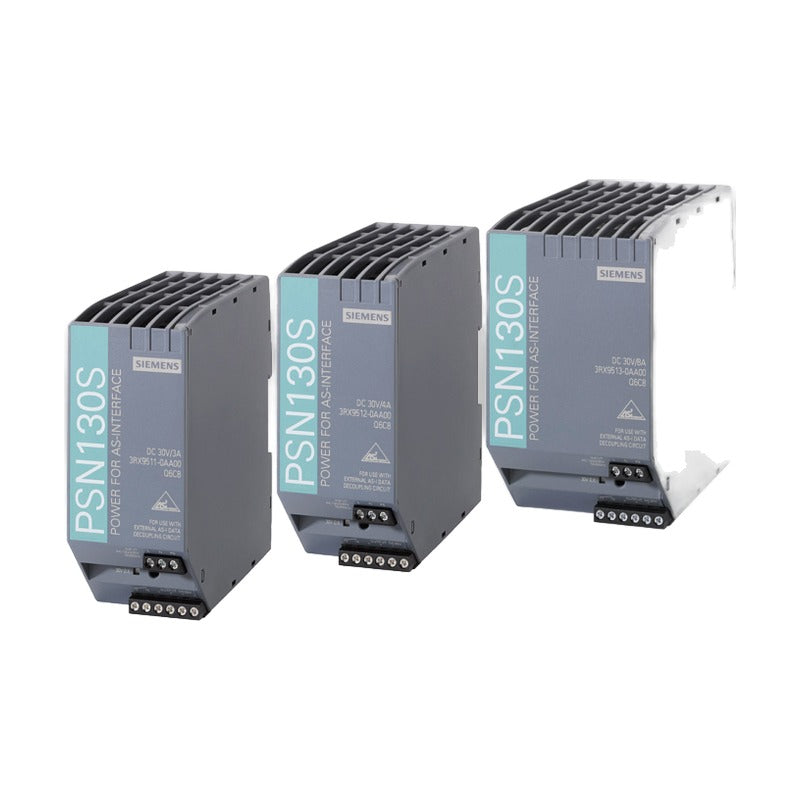

Siemens PSN130S 30 V DC Power Supply and AS-i Data Decoupling Modules

Siemens PSN130S 30 V DC Power Supply and AS-i Data Decoupling Modules

PSN130S 30 V DC power supply units for AS-i without data decoupling, plus S22.5 and DCM 1271 data decoupling modules.

Key features

  • PSN130S input 120/230 V AC, output 30 V DC, 3/4/8 A
  • Integrated overload detection with signaling contact
  • S22.5 data decoupling modules, single or double, 22.5 mm wide
  • Screw or spring-loaded terminal versions
  • DCM 1271 data decoupling module for SIMATIC S7-1200

Specifications

Brand Siemens
Product line Power supplies for AS-Interface
Voltage 30 V DC
Degree of protection IP20
Category DC Power Supplies
Source Siemens Catalog KT 10.1, p. 316-317
3RX9511-0AA00 Type: PSN130S power supply | Rating: 30 V DC / 3 A | Terminal: -
3RX9512-0AA00 Type: PSN130S power supply | Rating: 30 V DC / 4 A | Terminal: -
3RX9513-0AA00 Type: PSN130S power supply | Rating: 30 V DC / 8 A | Terminal: -
3RK1901-1DE12-1AA0 Type: S22.5 data decoupling, single | Rating: 1 x 4 A, 1x AS-i | Terminal: Screw
3RK1901-1DE22-1AA0 Type: S22.5 data decoupling, double | Rating: 2 x 4 A, 2x AS-i | Terminal: Screw
3RK1901-1DG12-1AA0 Type: S22.5 data decoupling, single | Rating: 1 x 4 A, 1x AS-i | Terminal: Spring-loaded
3RK1901-1DG22-1AA0 Type: S22.5 data decoupling, double | Rating: 2 x 4 A, 2x AS-i | Terminal: Spring-loaded
DC Power SuppliesSiemens
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens PSN130S 30 V DC Power Supply and AS-i Data Decoupling Modules

Brand Siemens·DC Power Supplies

Available part numbers (7)

3RX9511-0AA00, 3RX9512-0AA00, 3RX9513-0AA00, 3RK1901-1DE12-1AA0, 3RK1901-1DE22-1AA0, 3RK1901-1DG12-1AA0, 3RK1901-1DG22-1AA0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
3RX9511-0AA00Type: PSN130S power supply | Rating: 30 V DC / 3 A | Terminal: -
3RX9512-0AA00Type: PSN130S power supply | Rating: 30 V DC / 4 A | Terminal: -
3RX9513-0AA00Type: PSN130S power supply | Rating: 30 V DC / 8 A | Terminal: -
3RK1901-1DE12-1AA0Type: S22.5 data decoupling, single | Rating: 1 x 4 A, 1x AS-i | Terminal: Screw
3RK1901-1DE22-1AA0Type: S22.5 data decoupling, double | Rating: 2 x 4 A, 2x AS-i | Terminal: Screw
3RK1901-1DG12-1AA0Type: S22.5 data decoupling, single | Rating: 1 x 4 A, 1x AS-i | Terminal: Spring-loaded
3RK1901-1DG22-1AA0Type: S22.5 data decoupling, double | Rating: 2 x 4 A, 2x AS-i | Terminal: Spring-loaded
