Siemens SITOP PSU4200 24 V DC (1-phase 3-20 A, 3-phase 10-20 A)

Siemens SITOP PSU4200 24 V DC (1-phase 3-20 A, 3-phase 10-20 A)

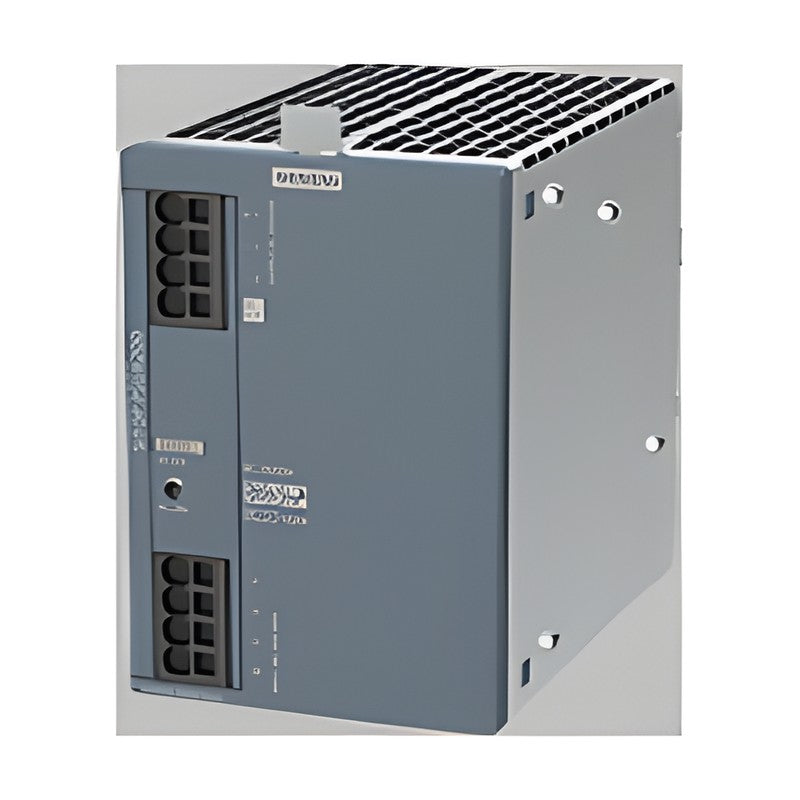

SITOP PSU4200 are basic-class stabilized 24 V DC power supplies with push-in connection, available as 1-phase and 3-phase units.

Key features

  • 1-phase 24 V DC/3 A, 5 A, 10 A, 20 A; 3-phase 24 V DC/10 A and 20 A
  • Power monitor for quick status detection
  • Tool-free push-in connection system with separate ground terminal
  • Metal enclosure 20 A, plastic enclosure below 20 A
  • Expandable with SITOP add-on and DC UPS modules

Specifications

Brand Siemens
Product line SITOP PSU4200
Performance class Basic
Output voltage 24 V DC
Connection Push-in
Source Siemens Catalog KT 10.1, p. 167-177
6EP3332-3SB00-0AX0 Phase: 1-phase | Input: 120/240 V AC | Output current: 3 A
6EP3333-3SB00-0AX0 Phase: 1-phase | Input: 120/240 V AC | Output current: 5 A
6EP3334-3SB00-0AX0 Phase: 1-phase | Input: 120/240 V AC | Output current: 10 A
6EP3336-3SB00-0AX0 Phase: 1-phase | Input: 120/240 V AC | Output current: 20 A
6EP3434-3SB00-0AX0 Phase: 3-phase | Input: 400/500 V AC | Output current: 10 A
6EP3436-3SB00-0AX0 Phase: 3-phase | Input: 400/500 V AC | Output current: 20 A
DC Power SuppliesSiemens
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Siemens SITOP PSU4200 24 V DC (1-phase 3-20 A, 3-phase 10-20 A)

Brand Siemens·DC Power Supplies

Available part numbers (6)

6EP3332-3SB00-0AX0, 6EP3333-3SB00-0AX0, 6EP3334-3SB00-0AX0, 6EP3336-3SB00-0AX0, 6EP3434-3SB00-0AX0, 6EP3436-3SB00-0AX0

How to order

Send the Siemens part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
6EP3332-3SB00-0AX0Phase: 1-phase | Input: 120/240 V AC | Output current: 3 A
6EP3333-3SB00-0AX0Phase: 1-phase | Input: 120/240 V AC | Output current: 5 A
6EP3334-3SB00-0AX0Phase: 1-phase | Input: 120/240 V AC | Output current: 10 A
6EP3336-3SB00-0AX0Phase: 1-phase | Input: 120/240 V AC | Output current: 20 A
6EP3434-3SB00-0AX0Phase: 3-phase | Input: 400/500 V AC | Output current: 10 A
6EP3436-3SB00-0AX0Phase: 3-phase | Input: 400/500 V AC | Output current: 20 A
