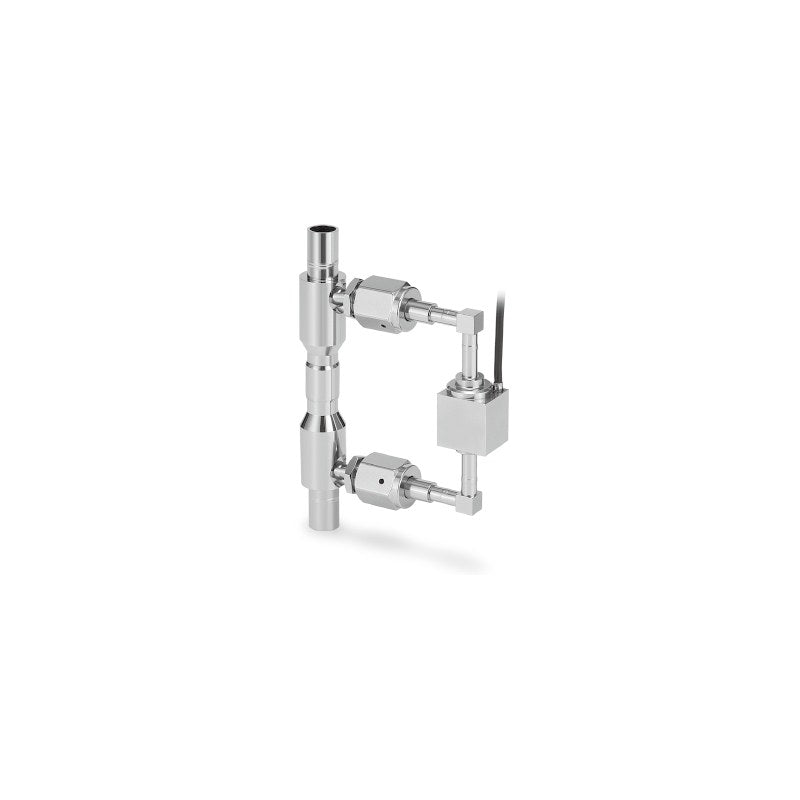

SMC AP74 High-Purity Flow Switch (2 to 100 L/min, 1/4 Face Seal)

SMC AP74 High-Purity Flow Switch (2 to 100 L/min, 1/4 Face Seal)

SMC AP74 series high-purity flow switch in which a magnet float actuates a reed switch (SPDT) when flow exceeds the set value, for process gas lines up to 24.1 MPa.

Key features

  • Magnet float operates an SPDT reed switch when flow exceeds the set value (N.C. or N.O. contact)
  • Six set flows from 2 to 100 L/min (nor) at N2 100 psig; accuracy +/-10% or 0.5 L/min
  • SUS316L double-melt body; working pressure vacuum to 3500 psig (24.1 MPa)
  • 1/4 face seal female/male or tube weld connections; install vertically with inlet down
  • Internal finish Ra 0.4 um standard, M (0.25 um) option

Specifications

Fluid Gases that do not corrode wetted parts
Body material SUS316L double melt, electropolished and passivated
Switch Reed switch SPDT, max. 30 VDC 3 W
Cable AWG24 PVC, 3 m
Leakage Inboard/outboard 2x10^-11 Pa m3/s
Working pressure Vacuum to 24.1 MPa
Pressure loss 0.0034 MPa
Ambient and fluid temperature -23 to 80 C
Mass 0.11 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP70.pdf), p. 794-795
AP74002SFV4FV4 Set flow: 2 L/min (nor) | Connection: 1/4 face seal female
AP74002SMV4MV4 Set flow: 2 L/min (nor) | Connection: 1/4 face seal male
AP74002STW4TW4 Set flow: 2 L/min (nor) | Connection: 1/4 tube weld
AP74005SFV4FV4 Set flow: 5 L/min (nor) | Connection: 1/4 face seal female
AP74005SMV4MV4 Set flow: 5 L/min (nor) | Connection: 1/4 face seal male
AP74005STW4TW4 Set flow: 5 L/min (nor) | Connection: 1/4 tube weld
AP74010SFV4FV4 Set flow: 10 L/min (nor) | Connection: 1/4 face seal female
AP74010SMV4MV4 Set flow: 10 L/min (nor) | Connection: 1/4 face seal male
AP74010STW4TW4 Set flow: 10 L/min (nor) | Connection: 1/4 tube weld
AP74025SFV4FV4 Set flow: 25 L/min (nor) | Connection: 1/4 face seal female
AP74025SMV4MV4 Set flow: 25 L/min (nor) | Connection: 1/4 face seal male
AP74025STW4TW4 Set flow: 25 L/min (nor) | Connection: 1/4 tube weld
AP74050SFV4FV4 Set flow: 50 L/min (nor) | Connection: 1/4 face seal female
AP74050SMV4MV4 Set flow: 50 L/min (nor) | Connection: 1/4 face seal male
AP74050STW4TW4 Set flow: 50 L/min (nor) | Connection: 1/4 tube weld
AP74100SFV4FV4 Set flow: 100 L/min (nor) | Connection: 1/4 face seal female
AP74100SMV4MV4 Set flow: 100 L/min (nor) | Connection: 1/4 face seal male
AP74100STW4TW4 Set flow: 100 L/min (nor) | Connection: 1/4 tube weld
