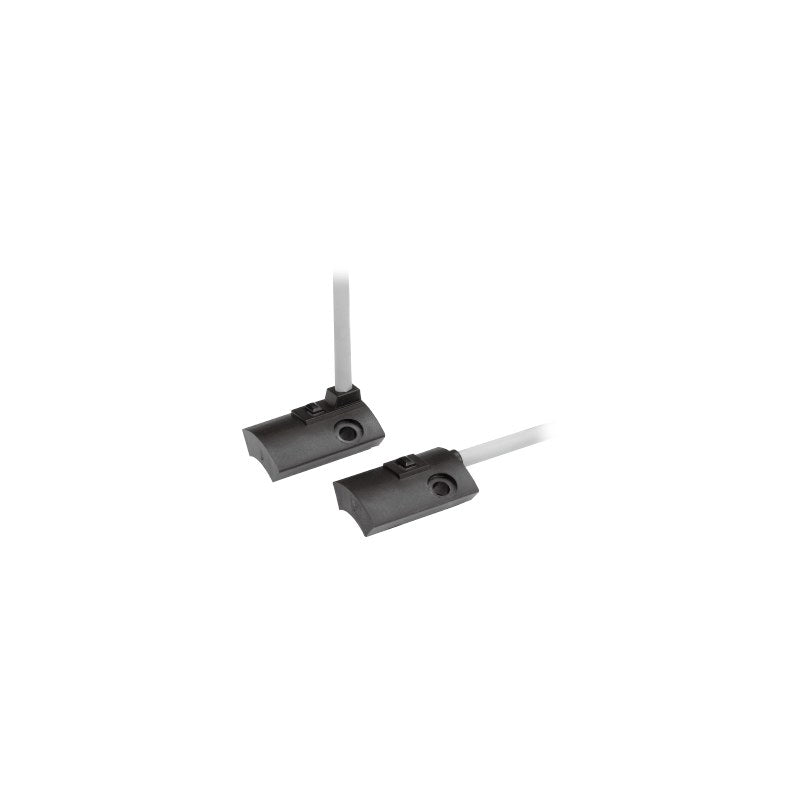

SMC D-90, D-97, D-90A, D-93A, D-R73(C) and D-R80(C) direct-mount reed auto switches for vane rotary actuators and rotary tables.

Key features

  • D-90/D-97 and D-90A/D-93A for CDRB2 (size 10 to 40) and MDSU 1/3; D-R73/D-R80 types for CDRB2, CDRB1 (50 to 100) and MDSU 7/20
  • D-90/D-97: vinyl parallel cord; D-90A/D-93A and D-R73/D-R80: oil-resistant cabtyre cord ø3.4, 0.2 mm2
  • Indicator lamp types (D-97, D-93A, D-R73) for relay / PLC; types without lamp (D-90, D-90A, D-R80) also for IC circuits
  • D-R suffix 1 = right-hand, 2 = left-hand; C = connector type using connector lead D-LC05 / D-LC30 / D-LC50
  • Lead wire length: none 0.5 m, L 3 m, Z 5 m; contact protection boxes CD-P11 / CD-P12 available for inductive loads
  • CE marking

Specifications

Switch type Reed (contact), direct mounting
Internal voltage drop (with lamp) 2.4V or less
Internal resistance (without lamp) 1 ohm or less (incl. 3 m lead wire)
Indicator Red LED lights when ON (lamp types)
Lead wire length 0.5 m (std), L: 3 m, Z: 5 m
Connector lead (C types) D-LC05 0.5 m, D-LC30 3 m, D-LC50 5 m
Standards CE marking
Source SMC Korea Best Pneumatics auto switches for rotary actuators/air chucks (SMCKR_D-_for_rotary_chuck_.pdf), p. 798, 841-844
D-90 Series: D-90 | Indicator: None | Load: AC/DC 5, 12, 24V (max. 50 mA) | Lead wire exit / side: In-line | Connection: Grommet, parallel cord
D-97 Series: D-97 | Indicator: Red LED | Load: DC24V (5 to 40 mA) | Lead wire exit / side: In-line | Connection: Grommet, parallel cord
D-90A Series: D-90A | Indicator: None | Load: AC/DC 5 to 24V 50 mA, 100V 20 mA | Lead wire exit / side: In-line | Connection: Grommet, cabtyre cord
D-93A Series: D-93A | Indicator: Red LED | Load: DC24V 5-40 mA, AC100V 5-20 mA | Lead wire exit / side: In-line | Connection: Grommet, cabtyre cord
D-R731 Series: D-R73 | Indicator: Red LED | Load: DC24V 5-40 mA, AC100V 5-20 mA | Lead wire exit / side: Horizontal, right side | Connection: Grommet, cabtyre cord
D-R801 Series: D-R80 | Indicator: None | Load: AC/DC 24V 50 mA, 48V 40 mA, 100V 20 mA | Lead wire exit / side: Horizontal, right side | Connection: Grommet, cabtyre cord
D-R731C Series: D-R73C | Indicator: Red LED | Load: DC24V (5 to 40 mA) | Lead wire exit / side: Horizontal, right side | Connection: Connector
D-R801C Series: D-R80C | Indicator: None | Load: AC/DC 24V or less (max. 50 mA) | Lead wire exit / side: Horizontal, right side | Connection: Connector
D-R732 Series: D-R73 | Indicator: Red LED | Load: DC24V 5-40 mA, AC100V 5-20 mA | Lead wire exit / side: Horizontal, left side | Connection: Grommet, cabtyre cord
D-R802 Series: D-R80 | Indicator: None | Load: AC/DC 24V 50 mA, 48V 40 mA, 100V 20 mA | Lead wire exit / side: Horizontal, left side | Connection: Grommet, cabtyre cord
D-R732C Series: D-R73C | Indicator: Red LED | Load: DC24V (5 to 40 mA) | Lead wire exit / side: Horizontal, left side | Connection: Connector
D-R802C Series: D-R80C | Indicator: None | Load: AC/DC 24V or less (max. 50 mA) | Lead wire exit / side: Horizontal, left side | Connection: Connector
