SMC D-M9-551/918 Solid State Auto Switch (UL/CSA Certified)

SMC D-M9 solid state auto switch in UL/CSA certified versions (-551) and UL/CSA certified with secondary-battery material restrictions (-918).

Key features

UL/CSA certification identified by suffix -551; -918 adds material restrictions for secondary (lithium-ion) battery production lines

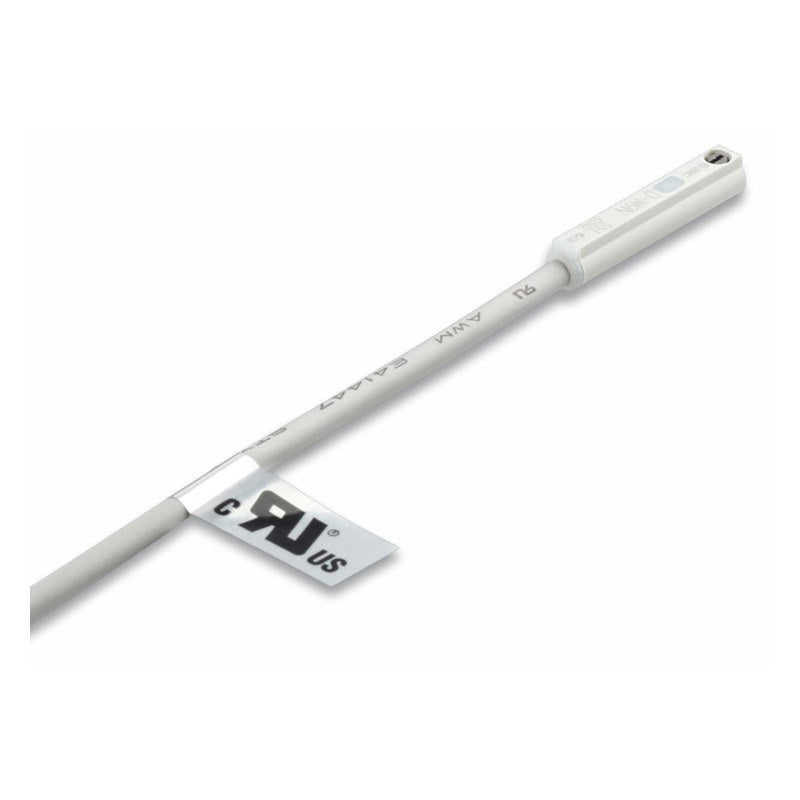

Identification marking printed on the switch body and an identification label on the lead wire
2-wire, 3-wire NPN and 3-wire PNP outputs; in-line or perpendicular (V) lead wire exit; 1-color indicator
Lead wire / connector symbol: none 0.5 m, L 3 m, SAPC M8 3-pin 0.5 m, SDPC M12 4-pin 0.5 m (inserted before the certification suffix)
Dimensions and specifications are common with the general-purpose D-M9 type
Supplied as a switch alone; cannot be ordered or shipped together with an actuator model number

Specifications

Switch type	Solid state, direct mounting
Base switch	D-M9 (common dimensions and specifications)
Indicator	1-color
Lead wire / connector	None: 0.5 m, L: 3 m, SAPC: M8 3-pin, SDPC: M12 4-pin
Standards	CE, UKCA, UL/CSA, RoHS
Supply form	Auto switch only (not mounted on actuator)
Source	SMC Korea catalog D-M9-551/918 ('24-K797) (SMCKR_D-M9_.pdf), p. 1-2

D-M9N-551		Output: 3-wire DC NPN \| Lead wire exit: In-line (axial) \| Certification: UL/CSA
D-M9NV-551		Output: 3-wire DC NPN \| Lead wire exit: Perpendicular \| Certification: UL/CSA
D-M9P-551		Output: 3-wire DC PNP \| Lead wire exit: In-line (axial) \| Certification: UL/CSA
D-M9PV-551		Output: 3-wire DC PNP \| Lead wire exit: Perpendicular \| Certification: UL/CSA
D-M9B-551		Output: 2-wire DC \| Lead wire exit: In-line (axial) \| Certification: UL/CSA
D-M9BV-551		Output: 2-wire DC \| Lead wire exit: Perpendicular \| Certification: UL/CSA
D-M9N-918		Output: 3-wire DC NPN \| Lead wire exit: In-line (axial) \| Certification: UL/CSA + secondary battery
D-M9NV-918		Output: 3-wire DC NPN \| Lead wire exit: Perpendicular \| Certification: UL/CSA + secondary battery
D-M9P-918		Output: 3-wire DC PNP \| Lead wire exit: In-line (axial) \| Certification: UL/CSA + secondary battery
D-M9PV-918		Output: 3-wire DC PNP \| Lead wire exit: Perpendicular \| Certification: UL/CSA + secondary battery
D-M9B-918		Output: 2-wire DC \| Lead wire exit: In-line (axial) \| Certification: UL/CSA + secondary battery
D-M9BV-918		Output: 2-wire DC \| Lead wire exit: Perpendicular \| Certification: UL/CSA + secondary battery

Auto SwitchesSMC

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC D-M9-551/918 Solid State Auto Switch (UL/CSA Certified)

Brand SMC·Auto Switches

Available part numbers (12)

D-M9N-551, D-M9NV-551, D-M9P-551, D-M9PV-551, D-M9B-551, D-M9BV-551, D-M9N-918, D-M9NV-918, D-M9P-918, D-M9PV-918 + 2 more — see full table ↓
