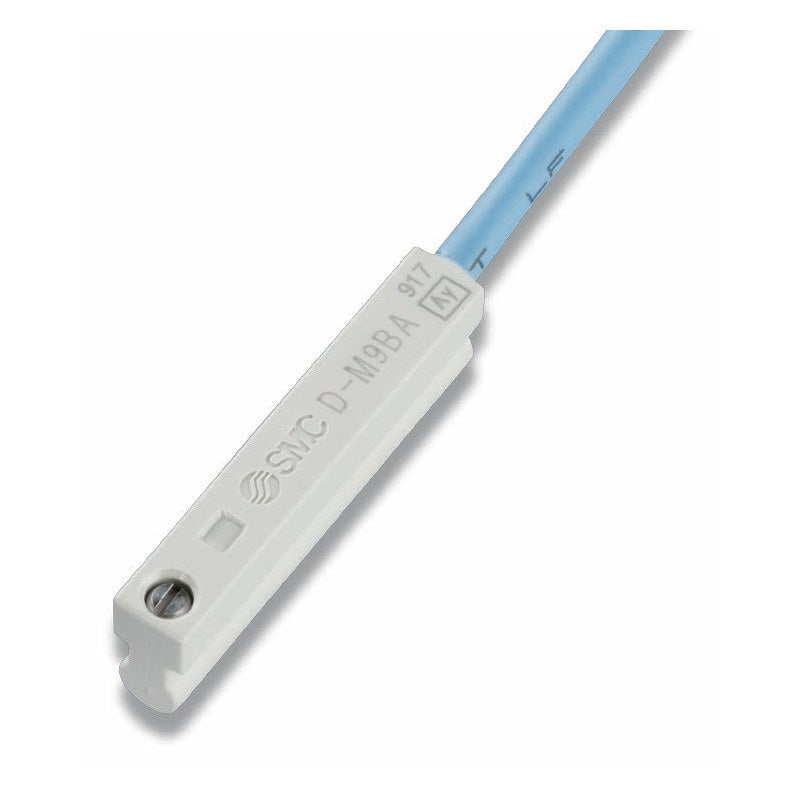

SMC D-M9BA-917/924/925 Intrinsically Safe Solid State Auto Switch

SMC D-M9BA-917/924/925 Intrinsically Safe Solid State Auto Switch

SMC D-M9BA intrinsically safe 2-color solid state auto switch certified to ATEX, UL/CSA (-917) or the Japanese explosion-proof standard (-924/-925) for hazardous locations.

Key features

  • Intrinsically safe type: II 1G Ex ia IIC T5 Ga (ATEX), Class 1 Zone 0 AEx ia IIC T5 Ga (UL/CSA)
  • Must be connected through a certified safety barrier matching the intrinsic safety parameters
  • 2-color indication (red / green) shows the optimum operating range; materials restricted for secondary battery applications
  • Water resistant 2-color body, IP67; individual wire or M8 / M12 connector lead versions
  • Operating range, mounting position and brackets common with the D-M9 series (CDQ2, CDS1, JMB, JMGP, C96, CP96, MY, CDRQ2 etc.)
  • Overseas-use product (not certified in Korea); supplied as a switch alone

Specifications

Load voltage 8.2V (7 to 12.5V)
ON output current (load current) 2.1 mA or more
OFF output current (leakage) 1.2 mA or less
Operating time 1 ms or less
Indicator Operating range: red LED; optimum range: green LED
Intrinsic safety parameters Ui 12.5V, Ii 25 mA, Pi 78 mW, Ci 0.74 uF, Li 13.5 uH
Lead wire Oil-resistant vinyl cabtyre cord ø2.6, 0.15 mm2
Enclosure IP67
Impact resistance 1000 m/s2
Ambient temperature -10 to 60°C
Source SMC Korea catalog D-M9BA-917/924/925 ('24-K799) (SMCKR_D-M9BA.pdf), p. 1-4
D-M9BA-917 Certification: ATEX, UL/CSA | Region: Europe, USA, Canada | Lead wire: Individual wires, 3 m
D-M9BASAPC-917 Certification: ATEX, UL/CSA | Region: Europe, USA, Canada | Lead wire: M8 3-pin connector, 0.5 m
D-M9BASDPC-917 Certification: ATEX, UL/CSA | Region: Europe, USA, Canada | Lead wire: M12 4-pin connector, 0.5 m
D-M9BAL-924 Certification: Japan Ex certification | Region: Japan | Lead wire: Individual wires, 3 m
D-M9BA-925 Certification: Japan Ex certification | Region: Japan | Lead wire: Individual wires, 7 m
D-M9BASAPC-924 Certification: Japan Ex certification | Region: Japan | Lead wire: M8 3-pin connector, 0.5 m
D-M9BASDPC-924 Certification: Japan Ex certification | Region: Japan | Lead wire: M12 4-pin connector, 0.5 m
Auto SwitchesSMC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC D-M9BA-917/924/925 Intrinsically Safe Solid State Auto Switch

Brand SMC·Auto Switches

Available part numbers (7)

D-M9BA-917, D-M9BASAPC-917, D-M9BASDPC-917, D-M9BAL-924, D-M9BA-925, D-M9BASAPC-924, D-M9BASDPC-924

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D-M9BA-917Certification: ATEX, UL/CSA | Region: Europe, USA, Canada | Lead wire: Individual wires, 3 m
D-M9BASAPC-917Certification: ATEX, UL/CSA | Region: Europe, USA, Canada | Lead wire: M8 3-pin connector, 0.5 m
D-M9BASDPC-917Certification: ATEX, UL/CSA | Region: Europe, USA, Canada | Lead wire: M12 4-pin connector, 0.5 m
D-M9BAL-924Certification: Japan Ex certification | Region: Japan | Lead wire: Individual wires, 3 m
D-M9BA-925Certification: Japan Ex certification | Region: Japan | Lead wire: Individual wires, 7 m
D-M9BASAPC-924Certification: Japan Ex certification | Region: Japan | Lead wire: M8 3-pin connector, 0.5 m
D-M9BASDPC-924Certification: Japan Ex certification | Region: Japan | Lead wire: M12 4-pin connector, 0.5 m
