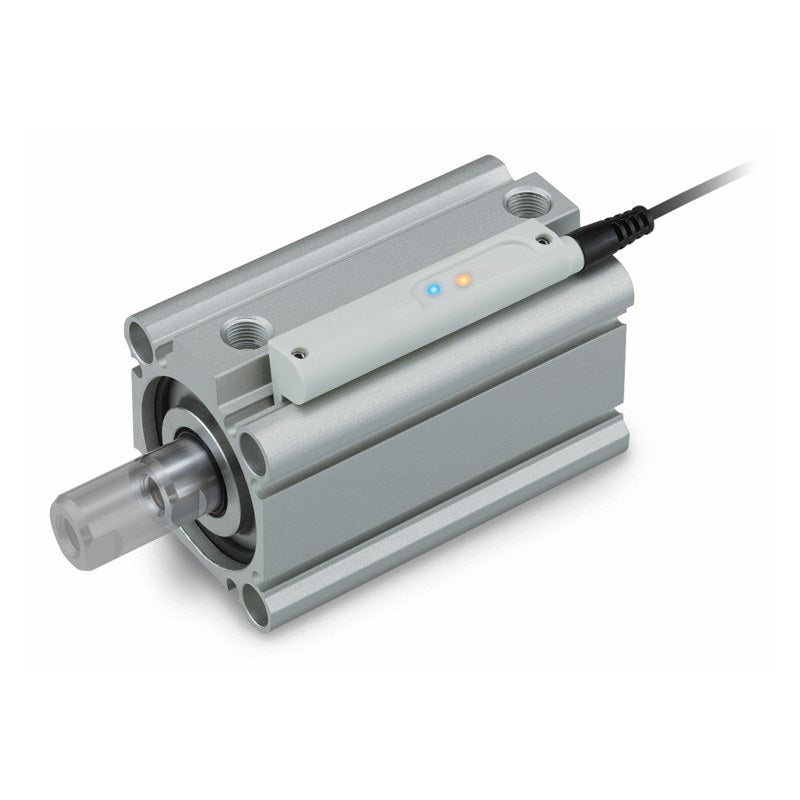

SMC D-MP Actuator Position Sensor (IO-Link, 25 to 200 mm)

SMC D-MP actuator position sensor that mounts in a cylinder auto switch groove and outputs the stroke position as an analog signal, with switch output and IO-Link.

Key features

Four measuring ranges: 25, 50, 100 and 200 mm; repeatability 0.1 mm, resolution 0.05 mm
Analog current (4 to 20 mA) or voltage (0 to 10 V) output, switchable and invertible; measuring range adjustable
NPN or PNP switch output with 4 modes (single point, auto switch, window, 2-point via IO-Link), normal / reversed output
IO-Link V1.1 (COM3) transmits 4 switch outputs and position value; touch pad setting on the sensor
Mounts directly from above into auto switch grooves of cylinders, CQS, MXH, MXS, MXQ and air chucks (MHZ, MHZL2, MHL2, MHF2 etc.)
IP67; lead wire 2 m or M8 / M12 4-pin connector 0.3 m

Specifications

Power supply	DC15 to 30V, ripple 10% or less
Current consumption	48 mA or less (no load)
Linearity	±0.3 mm (25°C)
Switch output	NPN or PNP, 1 output (push-pull), max. 40 mA
Analog output	4 to 20 mA (max. 500 ohm) / 0 to 10V (min. 2 kohm)
IO-Link	V1.1, COM3 230.4 kbps, min. cycle 1 ms, vendor ID 83 hex
Lead wire	PUR 4-core ø2.6, 0.08 mm2
Enclosure	IP67 (IEC60529)
Ambient temperature	-10 to 60°C
Standards	CE marking, UL, RoHS
Source	SMC Korea catalog CAT.KS20-257B (SMCKR_D-MP.pdf), p. 1-10

D-MP025A		Measuring range: 25 mm \| Lead wire: Lead wire 2.0 m \| IO-Link device ID: 125 hex
D-MP025B		Measuring range: 25 mm \| Lead wire: M8 4-pin, 0.3 m \| IO-Link device ID: 125 hex
D-MP025C		Measuring range: 25 mm \| Lead wire: M12 4-pin, 0.3 m \| IO-Link device ID: 125 hex
D-MP050A		Measuring range: 50 mm \| Lead wire: Lead wire 2.0 m \| IO-Link device ID: 126 hex
D-MP050B		Measuring range: 50 mm \| Lead wire: M8 4-pin, 0.3 m \| IO-Link device ID: 126 hex
D-MP050C		Measuring range: 50 mm \| Lead wire: M12 4-pin, 0.3 m \| IO-Link device ID: 126 hex
D-MP100A		Measuring range: 100 mm \| Lead wire: Lead wire 2.0 m \| IO-Link device ID: 127 hex
D-MP100B		Measuring range: 100 mm \| Lead wire: M8 4-pin, 0.3 m \| IO-Link device ID: 127 hex
D-MP100C		Measuring range: 100 mm \| Lead wire: M12 4-pin, 0.3 m \| IO-Link device ID: 127 hex
D-MP200A		Measuring range: 200 mm \| Lead wire: Lead wire 2.0 m \| IO-Link device ID: 128 hex
D-MP200B		Measuring range: 200 mm \| Lead wire: M8 4-pin, 0.3 m \| IO-Link device ID: 128 hex
D-MP200C		Measuring range: 200 mm \| Lead wire: M12 4-pin, 0.3 m \| IO-Link device ID: 128 hex
