SMC D-MPG Compact Position Sensor (IO-Link, 25 mm Range)

SMC D-MPG Compact Position Sensor (IO-Link, 25 mm Range)

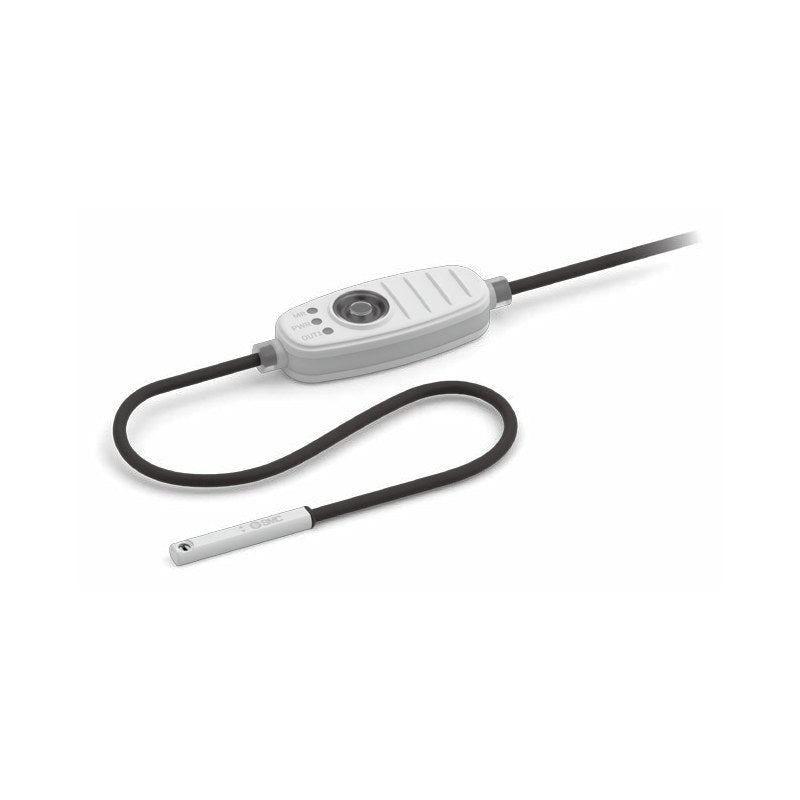

SMC D-MPG compact position sensor with a separate teach unit, whose sensor head has the same shape as the D-M9 auto switch and detects stroke position of air chucks and small actuators.

Key features

  • Sensor head the same shape as solid state auto switch D-M9; teach unit separated for a compact head
  • Measuring range 25 mm (default, up to 35 mm), repeatability 0.1 mm, resolution 0.01 mm
  • Analog output 0 to 10 V, 1 to 5 V or 4 to 20 mA (switchable); NPN or PNP switch output with set points and 4 modes
  • IO-Link V1.1: 8 ON/OFF outputs and position value; second switch output via IO-Link
  • For air chucks MHZ2, MHZL2, MHZJ2, JMHZ2, MHK2, MHKL2, MHS2/3/4, MHSL3, MHSJ3, MHSH3 and other small actuators
  • Teach unit lead: flying leads 2 m or M8 / M12 4-pin connector 0.3 m; sensor head lead 100 or 300 mm

Specifications

Power supply DC13 to 30V, ripple 10% or less
Current consumption 38 mA or less (no load)
Linearity ±0.6 mm (25 mm range), ±1.5 mm (35 mm range)
Switch output NPN or PNP (push-pull), max. 40 mA, voltage drop 1V or less
Analog output 4 to 20 mA (min. 400 ohm) / 0 to 10V, 1 to 5V (min. 2 kohm)
IO-Link V1.1, COM3 230.4 kbps, device ID 243 hex, vendor ID 83 hex
Lead wire PUR 4-core; sensor head ø2.2, teach unit ø2.6, 0.08 mm2
Enclosure IP67 (IEC60529)
Ambient temperature -10 to 60°C (analog current: -10 to 50°C)
Standards CE/UKCA marking, UL (CSA), RoHS
Source SMC Korea catalog CAT.KS20-303A (SMCKR_D-MPG.pdf), p. 1-10
D-MPGA1 Teach unit lead wire: Flying leads, 2.0 m | Sensor head lead wire: 100 mm
D-MPGA2 Teach unit lead wire: Flying leads, 2.0 m | Sensor head lead wire: 300 mm
D-MPGB1 Teach unit lead wire: M8 4-pin, 0.3 m | Sensor head lead wire: 100 mm
D-MPGB2 Teach unit lead wire: M8 4-pin, 0.3 m | Sensor head lead wire: 300 mm
D-MPGC1 Teach unit lead wire: M12 4-pin, 0.3 m | Sensor head lead wire: 100 mm
D-MPGC2 Teach unit lead wire: M12 4-pin, 0.3 m | Sensor head lead wire: 300 mm
Auto SwitchesSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC D-MPG Compact Position Sensor (IO-Link, 25 mm Range)

Brand SMC·Auto Switches

Available part numbers (6)

D-MPGA1, D-MPGA2, D-MPGB1, D-MPGB2, D-MPGC1, D-MPGC2

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D-MPGA1Teach unit lead wire: Flying leads, 2.0 m | Sensor head lead wire: 100 mm
D-MPGA2Teach unit lead wire: Flying leads, 2.0 m | Sensor head lead wire: 300 mm
D-MPGB1Teach unit lead wire: M8 4-pin, 0.3 m | Sensor head lead wire: 100 mm
D-MPGB2Teach unit lead wire: M8 4-pin, 0.3 m | Sensor head lead wire: 300 mm
D-MPGC1Teach unit lead wire: M12 4-pin, 0.3 m | Sensor head lead wire: 100 mm
D-MPGC2Teach unit lead wire: M12 4-pin, 0.3 m | Sensor head lead wire: 300 mm
