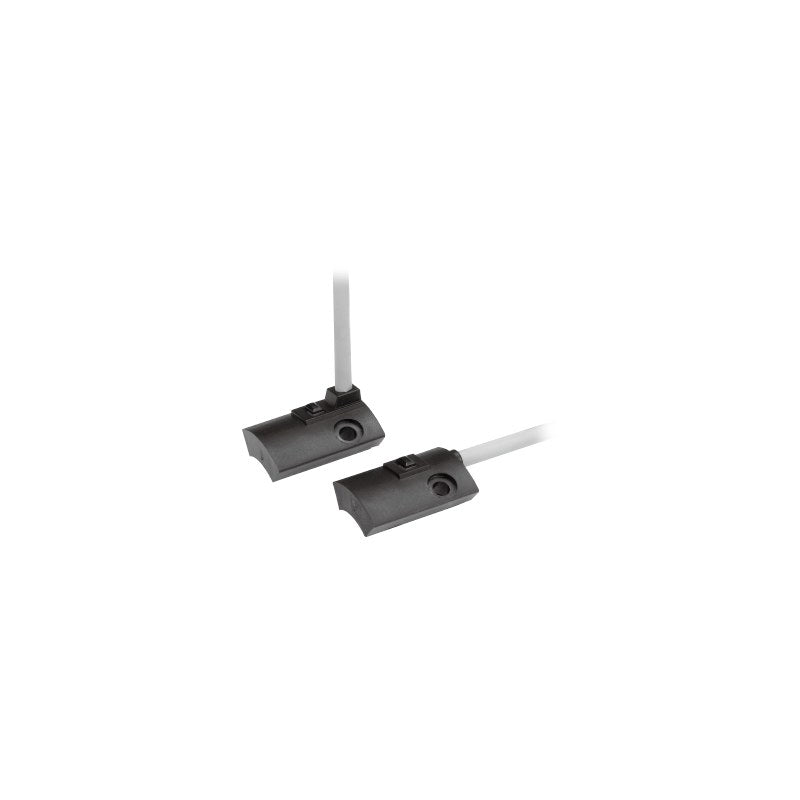

SMC D-S99(V), D-S9P(V), D-T99(V), D-S79, D-S7P and D-T79(C) direct-mount solid state auto switches for vane rotary actuators and rotary tables.

Key features

  • D-S99/S9P/T99 types for CDRB2 (size 10 to 40) and MDSU 1/3; D-S79/S7P/T79 types for CDRB2, CDRB1 (50 to 100) and MDSU 7/20
  • 3-wire NPN (S), 3-wire PNP (SxP) and 2-wire (T) outputs; red LED lights when ON
  • Suffix 1 = right-hand type, 2 = left-hand type; V = vertical lead wire exit (S99/S9P/T99)
  • D-T79C connector type uses separately ordered connector lead D-LC05 (0.5 m), D-LC30 (3 m), D-LC50 (5 m)
  • Lead wire length: none 0.5 m, L 3 m, Z 5 m; pre-wired M8/M12 connector made-to-order versions available
  • CE marking

Specifications

Power supply (3-wire) DC5, 12, 24V (DC4.5 to 28V)
Current consumption (3-wire) 10 mA or less
Load voltage 3-wire NPN: DC28V or less; 2-wire: DC24V (DC10 to 28V)
Load current 3-wire: 40 mA or less; 2-wire: 5 to 40 mA
Internal voltage drop 3-wire: 0.8V or less at 10 mA; 2-wire: 4V or less
Leakage current 3-wire: 100 uA or less at DC24V; 2-wire: 0.8 mA or less
Indicator Red LED lights when ON
Lead wire Oil-resistant cabtyre cord ø3.4, 0.2 mm2
Lead wire length 0.5 m (std), L: 3 m, Z: 5 m
Standards CE marking
Source SMC Korea Best Pneumatics auto switches for rotary actuators/air chucks (SMCKR_D-_for_rotary_chuck_.pdf), p. 798, 809-810
D-S991 Series: D-S99(V) | Wiring / output: 3-wire NPN | Lead wire exit: Horizontal | Side: Right side | Connection: Grommet
D-S992 Series: D-S99(V) | Wiring / output: 3-wire NPN | Lead wire exit: Horizontal | Side: Left side | Connection: Grommet
D-S99V1 Series: D-S99(V) | Wiring / output: 3-wire NPN | Lead wire exit: Vertical | Side: Right side | Connection: Grommet
D-S99V2 Series: D-S99(V) | Wiring / output: 3-wire NPN | Lead wire exit: Vertical | Side: Left side | Connection: Grommet
D-S9P1 Series: D-S9P(V) | Wiring / output: 3-wire PNP | Lead wire exit: Horizontal | Side: Right side | Connection: Grommet
D-S9P2 Series: D-S9P(V) | Wiring / output: 3-wire PNP | Lead wire exit: Horizontal | Side: Left side | Connection: Grommet
D-S9PV1 Series: D-S9P(V) | Wiring / output: 3-wire PNP | Lead wire exit: Vertical | Side: Right side | Connection: Grommet
D-S9PV2 Series: D-S9P(V) | Wiring / output: 3-wire PNP | Lead wire exit: Vertical | Side: Left side | Connection: Grommet
D-T991 Series: D-T99(V) | Wiring / output: 2-wire | Lead wire exit: Horizontal | Side: Right side | Connection: Grommet
D-T992 Series: D-T99(V) | Wiring / output: 2-wire | Lead wire exit: Horizontal | Side: Left side | Connection: Grommet
D-T99V1 Series: D-T99(V) | Wiring / output: 2-wire | Lead wire exit: Vertical | Side: Right side | Connection: Grommet
D-T99V2 Series: D-T99(V) | Wiring / output: 2-wire | Lead wire exit: Vertical | Side: Left side | Connection: Grommet
D-S791 Series: D-S79 | Wiring / output: 3-wire NPN | Lead wire exit: Horizontal | Side: Right side | Connection: Grommet
D-S792 Series: D-S79 | Wiring / output: 3-wire NPN | Lead wire exit: Horizontal | Side: Left side | Connection: Grommet
D-S7P1 Series: D-S7P | Wiring / output: 3-wire PNP | Lead wire exit: Horizontal | Side: Right side | Connection: Grommet
D-S7P2 Series: D-S7P | Wiring / output: 3-wire PNP | Lead wire exit: Horizontal | Side: Left side | Connection: Grommet
D-T791 Series: D-T79 | Wiring / output: 2-wire | Lead wire exit: Horizontal | Side: Right side | Connection: Grommet
D-T792 Series: D-T79 | Wiring / output: 2-wire | Lead wire exit: Horizontal | Side: Left side | Connection: Grommet
D-T791C Series: D-T79C | Wiring / output: 2-wire | Lead wire exit: Horizontal | Side: Right side | Connection: Connector
D-T792C Series: D-T79C | Wiring / output: 2-wire | Lead wire exit: Horizontal | Side: Left side | Connection: Connector
