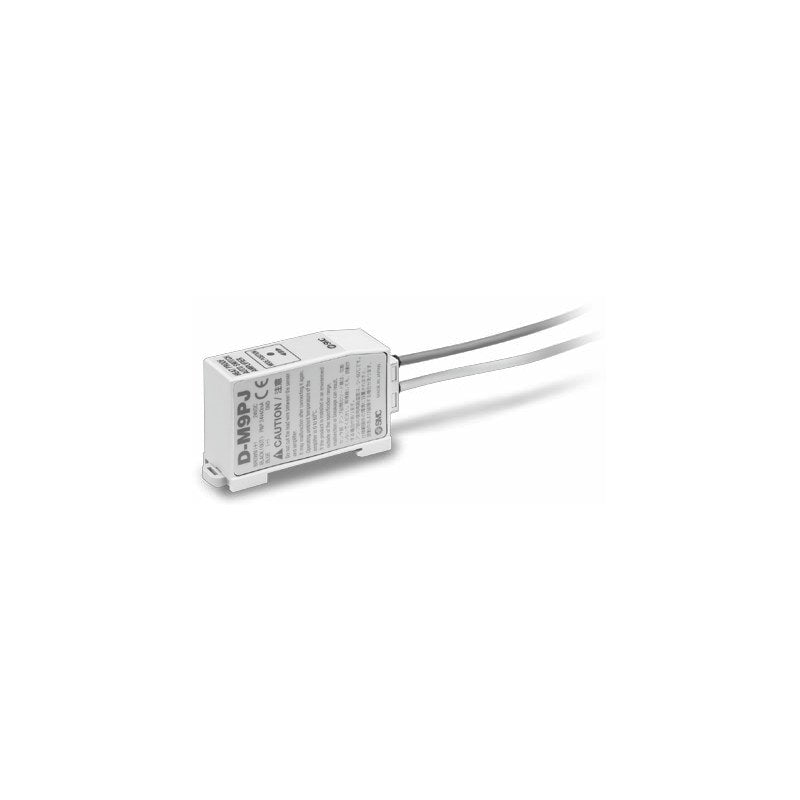

SMC D Series Solid State Auto Switches (D-M9, D-Y7, D-F7, D-G5 ...)

SMC D Series Solid State Auto Switches (D-M9, D-Y7, D-F7, D-G5 ...)

SMC D series solid state (contactless) auto switches for detecting the piston magnet of SMC actuators, in general-purpose, 2-color, water-resistant, magnetic-field-resistant, heat-resistant and other special versions.

Key features

  • Direct, band, rail and tie-rod mounting types; many direct types also fit band, rail or tie-rod via mounting brackets
  • 2-wire (DC24V relay/PLC) and 3-wire NPN/PNP (DC5/12/24V) outputs; in-line and perpendicular lead entry
  • 2-color indication types show the optimum operating range (red-green-red) for easy positioning
  • Special versions: normally closed, diagnostic output, water (coolant) resistant, hygienic, OFF-delay timer, magnetic field resistant, heat resistant, wide range, trimmer
  • Lead wire length is a suffix: none = 0.5 m, M = 1 m, L = 3 m, Z = 5 m (availability by model); pre-wired connector and -50/-61 made-to-order on request

Specifications

Switch type Solid state (contactless)
Power supply (3-wire) DC5, 12, 24V (DC4.5 to 28V)
Load voltage (2-wire) DC24V (DC10 to 28V)
Load current 2-wire 2.5/5 to 40 mA; 3-wire 40 mA (NPN), 80 mA (PNP)
Indicator Red LED when ON (2-color: red/green)
Lead wire Oilproof (flex-resistant on many models) cabtire cord
Lead wire length 0.5 m standard; M 1 m, L 3 m, Z 5 m suffix
Standards CE marking, RoHS (by model)
Source SMC Korea catalog Auto Switches (SMCKR_D.pdf), p. 1581-1639 (PDF p. 6-9, 10-67)
D-M9N Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9P Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9B Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NV Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PV Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BV Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-F8N Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-F8P Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-F8B Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-M9NE Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PE Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BE Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NEV Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PEV Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BEV Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y59A Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-Y59B Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-Y7P Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-Y69A Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-Y69B Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y7PV Function: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-Y7G Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-Y7H Function: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M5N Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5P Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M5B Function: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7A1 Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-H7A2 Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-H7B Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G59 Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-G5P Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-K59 Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7C Function: General purpose | Mounting: Band | Electrical entry: Connector | Wiring/output: 2-wire
D-G39 Function: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39 Function: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39A Function: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39A Function: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-F79 Function: General purpose | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F7P Function: General purpose | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J79 Function: General purpose | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7NV Function: General purpose | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-F7PV Function: General purpose | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-F7BV Function: General purpose | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-J79C Function: General purpose | Mounting: Rail | Electrical entry: Connector | Wiring/output: 2-wire
D-F59 Function: General purpose | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F5P Function: General purpose | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J59 Function: General purpose | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G39C-4 Function: General purpose | Mounting: Tie-rod (bore 40 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-4 Function: General purpose | Mounting: Tie-rod (bore 40 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-5 Function: General purpose | Mounting: Tie-rod (bore 50 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-5 Function: General purpose | Mounting: Tie-rod (bore 50 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-6 Function: General purpose | Mounting: Tie-rod (bore 60 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-6 Function: General purpose | Mounting: Tie-rod (bore 60 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-8 Function: General purpose | Mounting: Tie-rod (bore 80 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-8 Function: General purpose | Mounting: Tie-rod (bore 80 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-10 Function: General purpose | Mounting: Tie-rod (bore 100 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-10 Function: General purpose | Mounting: Tie-rod (bore 100 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-M9NW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NWV Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PWV Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BWV Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y7NW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-Y7PW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-Y7BW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-Y7NWV Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-Y7PWV Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-Y7BWV Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-M5NW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5PW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M5BW Function: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7NW Function: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-H7PW Function: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-H7BW Function: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G59W Function: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-G5PW Function: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-K59W Function: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F79W Function: 2-color indication | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F7PW Function: 2-color indication | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J79W Function: 2-color indication | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7NWV Function: 2-color indication | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-F7BWV Function: 2-color indication | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-F59W Function: 2-color indication | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F5PW Function: 2-color indication | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J59W Function: 2-color indication | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7NF Function: 2-color, diagnostic output | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-G59F Function: 2-color, diagnostic output | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-F79F Function: 2-color, diagnostic output | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-F59F Function: 2-color, diagnostic output | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-M9NA Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PA Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BA Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NAV Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PAV Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BAV Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y7BA Function: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7BA Function: 2-color, water resistant | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G5BA Function: 2-color, water resistant | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7BA Function: 2-color, water resistant | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7BAV Function: 2-color, water resistant | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-F5BA Function: 2-color, water resistant | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F6N Function: Hygienic design | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F6P Function: Hygienic design | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-F6B Function: Hygienic design | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G5NT Function: With OFF-delay timer (approx. 200 ms) | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F7NT Function: With OFF-delay timer (approx. 200 ms) | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F5NT Function: With OFF-delay timer (approx. 200 ms) | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5NT Function: With OFF-delay timer (approx. 200 ms) | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5PT Function: With OFF-delay timer (approx. 200 ms) | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-P3DWASC Function: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWASE Function: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWA Function: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-P3DWSC Function: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWSE Function: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DW Function: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-P4DWSC Function: 2-color, magnetic field resistant | Mounting: Rail | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P4DWSE Function: 2-color, magnetic field resistant | Mounting: Rail | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P4DW Function: 2-color, magnetic field resistant | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NJ Function: 2-color, heat resistant (sensor 150°C) | Mounting: Direct (sensor), DIN rail (amp) | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PJ Function: 2-color, heat resistant (sensor 150°C) | Mounting: Direct (sensor), DIN rail (amp) | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-F7NJ Function: 2-color, heat resistant (sensor 150°C) | Mounting: Rail (sensor), DIN rail (amp) | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-G5NB Function: Wide range detection | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9K Function: Trimmer (sensor head) | Mounting: Direct (round groove) | Electrical entry: Grommet, in-line | Wiring/output: Use with D-RNK / D-RPK amp
D-Y7K Function: Trimmer (sensor head) | Mounting: Direct (square groove) | Electrical entry: Grommet, in-line | Wiring/output: Use with D-RNK / D-RPK amp
D-F7K Function: Trimmer (sensor head) | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: Use with D-RNK / D-RPK amp
D-RNK Function: Trimmer (amplifier) | Mounting: Amplifier unit | Electrical entry: e-con sensor connector | Wiring/output: NPN, 2 outputs
D-RPK Function: Trimmer (amplifier) | Mounting: Amplifier unit | Electrical entry: e-con sensor connector | Wiring/output: PNP, 2 outputs
Auto SwitchesSMC
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC D Series Solid State Auto Switches (D-M9, D-Y7, D-F7, D-G5 ...)

Brand SMC·Auto Switches

Available part numbers (128)

D-M9N, D-M9P, D-M9B, D-M9NV, D-M9PV, D-M9BV, D-F8N, D-F8P, D-F8B, D-M9NE + 118 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D-M9NFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NVFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PVFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BVFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-F8NFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-F8PFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-F8BFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-M9NEFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PEFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BEFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NEVFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PEVFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BEVFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y59AFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-Y59BFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-Y7PFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-Y69AFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-Y69BFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y7PVFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-Y7GFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-Y7HFunction: Normally closed | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M5NFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5PFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M5BFunction: General purpose | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7A1Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-H7A2Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-H7BFunction: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G59Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-G5PFunction: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-K59Function: General purpose | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7CFunction: General purpose | Mounting: Band | Electrical entry: Connector | Wiring/output: 2-wire
D-G39Function: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39Function: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39AFunction: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39AFunction: General purpose | Mounting: Band | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-F79Function: General purpose | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F7PFunction: General purpose | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J79Function: General purpose | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7NVFunction: General purpose | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-F7PVFunction: General purpose | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-F7BVFunction: General purpose | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-J79CFunction: General purpose | Mounting: Rail | Electrical entry: Connector | Wiring/output: 2-wire
D-F59Function: General purpose | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F5PFunction: General purpose | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J59Function: General purpose | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G39C-4Function: General purpose | Mounting: Tie-rod (bore 40 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-4Function: General purpose | Mounting: Tie-rod (bore 40 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-5Function: General purpose | Mounting: Tie-rod (bore 50 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-5Function: General purpose | Mounting: Tie-rod (bore 50 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-6Function: General purpose | Mounting: Tie-rod (bore 60 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-6Function: General purpose | Mounting: Tie-rod (bore 60 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-8Function: General purpose | Mounting: Tie-rod (bore 80 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-8Function: General purpose | Mounting: Tie-rod (bore 80 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-G39C-10Function: General purpose | Mounting: Tie-rod (bore 100 mm) | Electrical entry: Terminal conduit | Wiring/output: 3-wire NPN
D-K39C-10Function: General purpose | Mounting: Tie-rod (bore 100 mm) | Electrical entry: Terminal conduit | Wiring/output: 2-wire
D-M9NWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NWVFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PWVFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BWVFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y7NWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-Y7PWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-Y7BWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-Y7NWVFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-Y7PWVFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-Y7BWVFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-M5NWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5PWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M5BWFunction: 2-color indication | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7NWFunction: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-H7PWFunction: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-H7BWFunction: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G59WFunction: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-G5PWFunction: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-K59WFunction: 2-color indication | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F79WFunction: 2-color indication | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F7PWFunction: 2-color indication | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J79WFunction: 2-color indication | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7NWVFunction: 2-color indication | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-F7BWVFunction: 2-color indication | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-F59WFunction: 2-color indication | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F5PWFunction: 2-color indication | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-J59WFunction: 2-color indication | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7NFFunction: 2-color, diagnostic output | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-G59FFunction: 2-color, diagnostic output | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-F79FFunction: 2-color, diagnostic output | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-F59FFunction: 2-color, diagnostic output | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 4-wire NPN (with diag. output)
D-M9NAFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PAFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-M9BAFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NAVFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire NPN
D-M9PAVFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 3-wire PNP
D-M9BAVFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-Y7BAFunction: 2-color, water resistant | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-H7BAFunction: 2-color, water resistant | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G5BAFunction: 2-color, water resistant | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7BAFunction: 2-color, water resistant | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F7BAVFunction: 2-color, water resistant | Mounting: Rail | Electrical entry: Grommet, perpendicular | Wiring/output: 2-wire
D-F5BAFunction: 2-color, water resistant | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-F6NFunction: Hygienic design | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F6PFunction: Hygienic design | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-F6BFunction: Hygienic design | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-G5NTFunction: With OFF-delay timer (approx. 200 ms) | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F7NTFunction: With OFF-delay timer (approx. 200 ms) | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-F5NTFunction: With OFF-delay timer (approx. 200 ms) | Mounting: Tie-rod | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5NTFunction: With OFF-delay timer (approx. 200 ms) | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M5PTFunction: With OFF-delay timer (approx. 200 ms) | Mounting: Direct | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-P3DWASCFunction: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWASEFunction: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWAFunction: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-P3DWSCFunction: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWSEFunction: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P3DWFunction: 2-color, magnetic field resistant | Mounting: Rail / tie-rod / direct | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-P4DWSCFunction: 2-color, magnetic field resistant | Mounting: Rail | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P4DWSEFunction: 2-color, magnetic field resistant | Mounting: Rail | Electrical entry: Pre-wired M12 connector | Wiring/output: 2-wire
D-P4DWFunction: 2-color, magnetic field resistant | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: 2-wire
D-M9NJFunction: 2-color, heat resistant (sensor 150°C) | Mounting: Direct (sensor), DIN rail (amp) | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9PJFunction: 2-color, heat resistant (sensor 150°C) | Mounting: Direct (sensor), DIN rail (amp) | Electrical entry: Grommet, in-line | Wiring/output: 3-wire PNP
D-F7NJFunction: 2-color, heat resistant (sensor 150°C) | Mounting: Rail (sensor), DIN rail (amp) | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-G5NBFunction: Wide range detection | Mounting: Band | Electrical entry: Grommet, in-line | Wiring/output: 3-wire NPN
D-M9KFunction: Trimmer (sensor head) | Mounting: Direct (round groove) | Electrical entry: Grommet, in-line | Wiring/output: Use with D-RNK / D-RPK amp
D-Y7KFunction: Trimmer (sensor head) | Mounting: Direct (square groove) | Electrical entry: Grommet, in-line | Wiring/output: Use with D-RNK / D-RPK amp
D-F7KFunction: Trimmer (sensor head) | Mounting: Rail | Electrical entry: Grommet, in-line | Wiring/output: Use with D-RNK / D-RPK amp
D-RNKFunction: Trimmer (amplifier) | Mounting: Amplifier unit | Electrical entry: e-con sensor connector | Wiring/output: NPN, 2 outputs
D-RPKFunction: Trimmer (amplifier) | Mounting: Amplifier unit | Electrical entry: e-con sensor connector | Wiring/output: PNP, 2 outputs

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
