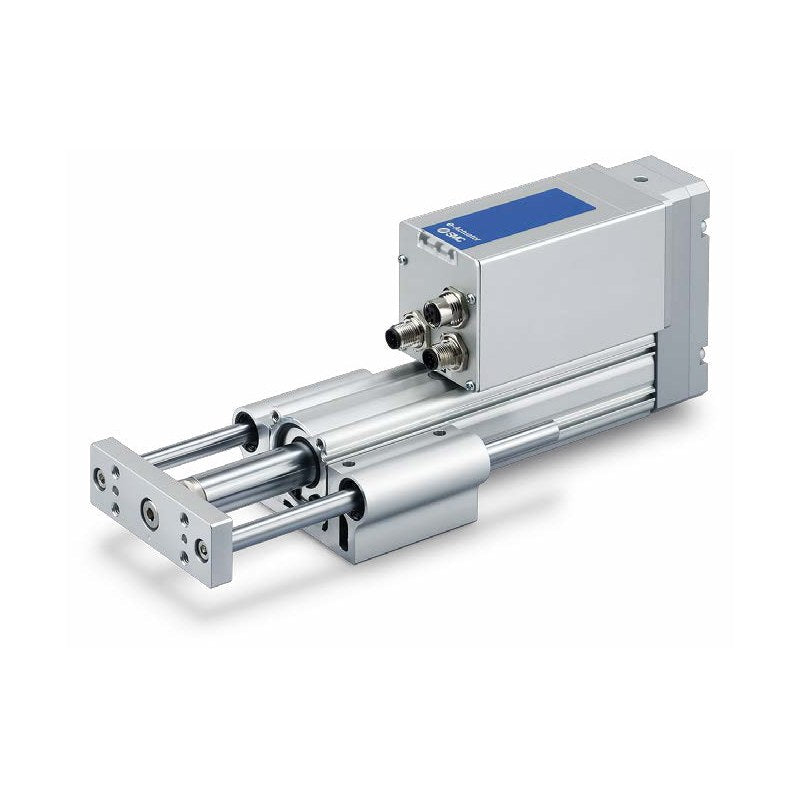

SMC EQYG Guided Rod Electric Actuator, Controller Integrated

SMC EQYG e-Actuator guided rod-type electric actuator with integrated controller and battery-less absolute step motor (DC24V), sizes 16, 25 and 32.

Key features

Guide rods with slide bearing (M) or ball bushing bearing (L) for lateral load and non-rotating plate
Controller-integrated: 2-point and 3-point stopping set without programming; single/double solenoid and closed center modes
Motor layout: top-mounted parallel (standard) or straight (D; D1-D4 cover direction for size 16)
Interface (last symbol) listed as 5 = Parallel input NPN (power connector A-code); replace with 6 (Parallel PNP), LA (IO-Link, A-code power) or LB (IO-Link, L-code power)
Power cable, Parallel I/O cable and IO-Link cable are ordered separately; auto switches (D-M9 series) and support blocks ordered separately

Specifications

Motor	Battery-less absolute step motor DC24V
Controller	Integrated (symbol B)
Drive	Ball screw + belt (parallel); ball screw (straight)
Horizontal payload (by lead)	EQYG16 17/25/40; EQYG25 8/26/40/70; EQYG32 30/50/90/100 kg
Vertical payload (by lead)	EQYG16 2.5/5.5/10; EQYG25 1/7/15/29; EQYG32 1/11/24/44 kg
Pushing force	EQYG16 23-154 N; EQYG25 41-511 N; EQYG32 60-796 N
Repeatability	±0.02 mm
Enclosure	IP40
Operating temperature	5 to 40°C
Power supply	DC24V ±10%
Source	SMC Korea catalog CAT.KS100-154D (SMCKR_EQF_EQY.pdf), p. 74-75 (PDF p. 75-76)

EQYG16MHA-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MHA-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MHA-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MHA-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MHA-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MHA-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MHA-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MHA-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MHA-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MHA-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MHB-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MHB-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MHB-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MHB-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MHB-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MHB-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MHB-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MHB-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MHB-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MHB-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MHC-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MHC-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MHC-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MHC-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MHC-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MHC-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MHC-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MHC-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MHC-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MHC-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD1HA-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD1HA-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD1HA-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD1HA-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD1HA-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD1HA-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD1HA-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD1HA-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD1HA-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD1HA-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD1HB-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD1HB-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD1HB-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD1HB-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD1HB-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD1HB-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD1HB-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD1HB-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD1HB-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD1HB-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD1HC-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD1HC-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD1HC-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD1HC-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD1HC-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD1HC-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD1HC-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD1HC-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD1HC-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD1HC-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD2HA-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD2HA-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD2HA-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD2HA-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD2HA-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD2HA-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD2HA-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD2HA-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD2HA-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD2HA-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD2HB-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD2HB-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD2HB-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD2HB-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD2HB-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD2HB-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD2HB-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD2HB-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD2HB-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD2HB-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD2HC-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD2HC-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD2HC-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD2HC-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD2HC-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD2HC-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD2HC-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD2HC-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD2HC-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD2HC-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD3HA-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD3HA-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD3HA-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD3HA-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD3HA-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD3HA-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD3HA-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD3HA-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD3HA-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD3HA-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD3HB-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD3HB-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD3HB-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD3HB-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD3HB-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD3HB-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD3HB-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD3HB-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD3HB-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD3HB-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD3HC-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD3HC-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD3HC-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD3HC-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD3HC-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD3HC-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD3HC-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD3HC-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD3HC-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD3HC-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD4HA-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD4HA-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD4HA-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD4HA-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD4HA-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD4HA-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD4HA-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD4HA-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD4HA-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD4HA-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD4HB-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD4HB-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD4HB-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD4HB-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD4HB-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD4HB-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD4HB-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD4HB-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD4HB-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD4HB-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16MD4HC-30-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16MD4HC-30B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16MD4HC-50-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16MD4HC-50B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16MD4HC-100-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16MD4HC-100B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16MD4HC-150-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16MD4HC-150B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16MD4HC-200-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16MD4HC-200B-B5		Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LHA-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LHA-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LHA-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LHA-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LHA-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LHA-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LHA-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LHA-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LHA-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LHA-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LHB-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LHB-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LHB-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LHB-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LHB-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LHB-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LHB-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LHB-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LHB-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LHB-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LHC-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LHC-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LHC-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LHC-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LHC-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LHC-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LHC-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LHC-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LHC-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LHC-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD1HA-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD1HA-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD1HA-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD1HA-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD1HA-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD1HA-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD1HA-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD1HA-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD1HA-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD1HA-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD1HB-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD1HB-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD1HB-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD1HB-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD1HB-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD1HB-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD1HB-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD1HB-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD1HB-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD1HB-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD1HC-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD1HC-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD1HC-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD1HC-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD1HC-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD1HC-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD1HC-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD1HC-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD1HC-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD1HC-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD2HA-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD2HA-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD2HA-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD2HA-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD2HA-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD2HA-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD2HA-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD2HA-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD2HA-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD2HA-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD2HB-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD2HB-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD2HB-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD2HB-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD2HB-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD2HB-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD2HB-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD2HB-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD2HB-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD2HB-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD2HC-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD2HC-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD2HC-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD2HC-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD2HC-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD2HC-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD2HC-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD2HC-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD2HC-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD2HC-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD3HA-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD3HA-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD3HA-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD3HA-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD3HA-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD3HA-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD3HA-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD3HA-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD3HA-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD3HA-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD3HB-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD3HB-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD3HB-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD3HB-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD3HB-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD3HB-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD3HB-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD3HB-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD3HB-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD3HB-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD3HC-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD3HC-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD3HC-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD3HC-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD3HC-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD3HC-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD3HC-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD3HC-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD3HC-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD3HC-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD4HA-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD4HA-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD4HA-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD4HA-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD4HA-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD4HA-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD4HA-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD4HA-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD4HA-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD4HA-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD4HB-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD4HB-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD4HB-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD4HB-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD4HB-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD4HB-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD4HB-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD4HB-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD4HB-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD4HB-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG16LD4HC-30-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG16LD4HC-30B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQYG16LD4HC-50-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG16LD4HC-50B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQYG16LD4HC-100-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG16LD4HC-100B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQYG16LD4HC-150-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG16LD4HC-150B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQYG16LD4HC-200-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG16LD4HC-200B-B5		Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MHH-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MHH-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MHH-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MHH-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MHH-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MHH-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MHH-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MHH-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MHH-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MHH-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MHH-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MHH-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MHH-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MHH-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MHA-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MHA-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MHA-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MHA-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MHA-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MHA-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MHA-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MHA-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MHA-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MHA-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MHA-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MHA-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MHA-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MHA-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MHB-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MHB-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MHB-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MHB-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MHB-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MHB-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MHB-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MHB-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MHB-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MHB-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MHB-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MHB-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MHB-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MHB-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MHC-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MHC-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MHC-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MHC-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MHC-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MHC-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MHC-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MHC-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MHC-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MHC-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MHC-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MHC-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MHC-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MHC-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MDHH-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MDHH-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MDHH-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MDHH-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MDHH-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MDHH-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MDHH-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MDHH-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MDHH-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MDHH-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MDHH-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MDHH-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MDHH-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MDHH-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MDHA-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MDHA-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MDHA-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MDHA-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MDHA-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MDHA-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MDHA-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MDHA-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MDHA-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MDHA-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MDHA-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MDHA-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MDHA-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MDHA-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MDHB-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MDHB-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MDHB-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MDHB-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MDHB-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MDHB-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MDHB-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MDHB-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MDHB-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MDHB-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MDHB-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MDHB-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MDHB-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MDHB-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25MDHC-30-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25MDHC-30B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25MDHC-50-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25MDHC-50B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25MDHC-100-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25MDHC-100B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25MDHC-150-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25MDHC-150B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25MDHC-200-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25MDHC-200B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25MDHC-250-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25MDHC-250B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25MDHC-300-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25MDHC-300B-B5		Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LHH-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LHH-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LHH-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LHH-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LHH-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LHH-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LHH-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LHH-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LHH-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LHH-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LHH-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LHH-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LHH-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LHH-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LHA-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LHA-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LHA-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LHA-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LHA-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LHA-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LHA-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LHA-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LHA-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LHA-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LHA-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LHA-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LHA-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LHA-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LHB-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LHB-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LHB-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LHB-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LHB-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LHB-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LHB-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LHB-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LHB-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LHB-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LHB-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LHB-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LHB-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LHB-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LHC-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LHC-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LHC-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LHC-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LHC-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LHC-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LHC-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LHC-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LHC-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LHC-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LHC-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LHC-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LHC-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LHC-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LDHH-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LDHH-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LDHH-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LDHH-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LDHH-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LDHH-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LDHH-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LDHH-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LDHH-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LDHH-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LDHH-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LDHH-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LDHH-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LDHH-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LDHA-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LDHA-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LDHA-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LDHA-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LDHA-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LDHA-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LDHA-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LDHA-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LDHA-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LDHA-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LDHA-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LDHA-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LDHA-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LDHA-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LDHB-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LDHB-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LDHB-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LDHB-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LDHB-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LDHB-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LDHB-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LDHB-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LDHB-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LDHB-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LDHB-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LDHB-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LDHB-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LDHB-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQYG25LDHC-30-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG25LDHC-30B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQYG25LDHC-50-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG25LDHC-50B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQYG25LDHC-100-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG25LDHC-100B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQYG25LDHC-150-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG25LDHC-150B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQYG25LDHC-200-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG25LDHC-200B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQYG25LDHC-250-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG25LDHC-250B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQYG25LDHC-300-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG25LDHC-300B-B5		Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MHH-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MHH-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MHH-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MHH-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MHH-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MHH-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MHH-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MHH-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MHH-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MHH-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MHH-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MHH-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MHH-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MHH-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MHA-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MHA-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MHA-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MHA-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MHA-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MHA-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MHA-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MHA-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MHA-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MHA-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MHA-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MHA-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MHA-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MHA-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MHB-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MHB-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MHB-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MHB-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MHB-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MHB-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MHB-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MHB-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MHB-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MHB-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MHB-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MHB-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MHB-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MHB-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MHC-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MHC-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MHC-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MHC-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MHC-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MHC-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MHC-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MHC-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MHC-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MHC-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MHC-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MHC-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MHC-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MHC-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MDHH-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MDHH-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MDHH-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MDHH-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MDHH-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MDHH-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MDHH-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MDHH-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MDHH-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MDHH-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MDHH-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MDHH-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MDHH-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MDHH-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MDHA-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MDHA-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MDHA-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MDHA-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MDHA-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MDHA-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MDHA-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MDHA-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MDHA-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MDHA-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MDHA-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MDHA-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MDHA-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MDHA-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MDHB-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MDHB-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MDHB-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MDHB-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MDHB-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MDHB-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MDHB-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MDHB-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MDHB-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MDHB-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MDHB-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MDHB-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MDHB-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MDHB-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32MDHC-30-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32MDHC-30B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32MDHC-50-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32MDHC-50B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32MDHC-100-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32MDHC-100B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32MDHC-150-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32MDHC-150B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32MDHC-200-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32MDHC-200B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32MDHC-250-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32MDHC-250B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32MDHC-300-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32MDHC-300B-B5		Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LHH-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LHH-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LHH-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LHH-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LHH-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LHH-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LHH-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LHH-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LHH-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LHH-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LHH-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LHH-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LHH-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LHH-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LHA-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LHA-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LHA-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LHA-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LHA-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LHA-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LHA-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LHA-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LHA-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LHA-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LHA-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LHA-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LHA-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LHA-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LHB-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LHB-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LHB-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LHB-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LHB-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LHB-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LHB-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LHB-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LHB-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LHB-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LHB-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LHB-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LHB-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LHB-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LHC-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LHC-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LHC-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LHC-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LHC-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LHC-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LHC-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LHC-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LHC-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LHC-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LHC-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LHC-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LHC-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LHC-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LDHH-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LDHH-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LDHH-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LDHH-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LDHH-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LDHH-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LDHH-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LDHH-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LDHH-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LDHH-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LDHH-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LDHH-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LDHH-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LDHH-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LDHA-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LDHA-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LDHA-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LDHA-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LDHA-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LDHA-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LDHA-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LDHA-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LDHA-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LDHA-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LDHA-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LDHA-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LDHA-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LDHA-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LDHB-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LDHB-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LDHB-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LDHB-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LDHB-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LDHB-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LDHB-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LDHB-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LDHB-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LDHB-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LDHB-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LDHB-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LDHB-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LDHB-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQYG32LDHC-30-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQYG32LDHC-30B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQYG32LDHC-50-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQYG32LDHC-50B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQYG32LDHC-100-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQYG32LDHC-100B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQYG32LDHC-150-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQYG32LDHC-150B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQYG32LDHC-200-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQYG32LDHC-200B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQYG32LDHC-250-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQYG32LDHC-250B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQYG32LDHC-300-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQYG32LDHC-300B-B5		Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock

Electric ActuatorsSMC

748 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC EQYG Guided Rod Electric Actuator, Controller Integrated

Brand SMC·Electric Actuators

Available part numbers (748)

EQYG16MHA-30-B5, EQYG16MHA-30B-B5, EQYG16MHA-50-B5, EQYG16MHA-50B-B5, EQYG16MHA-100-B5, EQYG16MHA-100B-B5, EQYG16MHA-150-B5, EQYG16MHA-150B-B5, EQYG16MHA-200-B5, EQYG16MHA-200B-B5 + 738 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EQYG16MHA-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MHA-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MHA-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MHA-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MHA-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MHA-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MHA-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MHA-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MHA-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MHA-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MHB-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MHB-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MHB-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MHB-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MHB-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MHB-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MHB-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MHB-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MHB-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MHB-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MHC-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MHC-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MHC-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MHC-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MHC-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MHC-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MHC-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MHC-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MHC-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MHC-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD1HA-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD1HA-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD1HA-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD1HA-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD1HA-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD1HA-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD1HA-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD1HA-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD1HA-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD1HA-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD1HB-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD1HB-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD1HB-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD1HB-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD1HB-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD1HB-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD1HB-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD1HB-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD1HB-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD1HB-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD1HC-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD1HC-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD1HC-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD1HC-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD1HC-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD1HC-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD1HC-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD1HC-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD1HC-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD1HC-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD2HA-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD2HA-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD2HA-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD2HA-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD2HA-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD2HA-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD2HA-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD2HA-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD2HA-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD2HA-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD2HB-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD2HB-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD2HB-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD2HB-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD2HB-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD2HB-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD2HB-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD2HB-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD2HB-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD2HB-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD2HC-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD2HC-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD2HC-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD2HC-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD2HC-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD2HC-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD2HC-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD2HC-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD2HC-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD2HC-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD3HA-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD3HA-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD3HA-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD3HA-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD3HA-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD3HA-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD3HA-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD3HA-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD3HA-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD3HA-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD3HB-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD3HB-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD3HB-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD3HB-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD3HB-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD3HB-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD3HB-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD3HB-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD3HB-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD3HB-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD3HC-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD3HC-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD3HC-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD3HC-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD3HC-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD3HC-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD3HC-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD3HC-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD3HC-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD3HC-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD4HA-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD4HA-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD4HA-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD4HA-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD4HA-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD4HA-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD4HA-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD4HA-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD4HA-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD4HA-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD4HB-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD4HB-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD4HB-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD4HB-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD4HB-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD4HB-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD4HB-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD4HB-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD4HB-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD4HB-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16MD4HC-30-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16MD4HC-30B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16MD4HC-50-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16MD4HC-50B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16MD4HC-100-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16MD4HC-100B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16MD4HC-150-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16MD4HC-150B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16MD4HC-200-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16MD4HC-200B-B5	Size: 16 \| Bearing: Slide bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LHA-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LHA-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LHA-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LHA-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LHA-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LHA-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LHA-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LHA-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LHA-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LHA-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LHB-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LHB-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LHB-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LHB-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LHB-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LHB-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LHB-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LHB-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LHB-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LHB-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LHC-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LHC-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LHC-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LHC-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LHC-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LHC-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LHC-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LHC-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LHC-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LHC-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD1HA-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD1HA-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD1HA-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD1HA-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD1HA-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD1HA-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD1HA-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD1HA-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD1HA-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD1HA-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD1HB-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD1HB-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD1HB-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD1HB-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD1HB-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD1HB-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD1HB-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD1HB-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD1HB-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD1HB-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD1HC-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD1HC-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD1HC-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD1HC-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD1HC-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD1HC-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD1HC-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD1HC-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD1HC-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD1HC-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD2HA-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD2HA-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD2HA-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD2HA-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD2HA-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD2HA-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD2HA-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD2HA-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD2HA-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD2HA-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD2HB-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD2HB-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD2HB-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD2HB-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD2HB-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD2HB-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD2HB-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD2HB-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD2HB-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD2HB-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD2HC-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD2HC-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD2HC-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD2HC-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD2HC-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD2HC-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD2HC-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD2HC-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD2HC-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD2HC-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD3HA-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD3HA-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD3HA-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD3HA-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD3HA-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD3HA-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD3HA-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD3HA-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD3HA-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD3HA-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD3HB-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD3HB-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD3HB-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD3HB-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD3HB-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD3HB-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD3HB-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD3HB-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD3HB-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD3HB-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD3HC-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD3HC-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD3HC-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD3HC-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD3HC-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD3HC-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD3HC-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD3HC-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD3HC-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD3HC-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD4HA-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD4HA-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD4HA-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD4HA-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD4HA-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD4HA-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD4HA-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD4HA-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD4HA-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD4HA-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD4HB-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD4HB-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD4HB-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD4HB-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD4HB-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD4HB-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD4HB-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD4HB-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD4HB-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD4HB-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG16LD4HC-30-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG16LD4HC-30B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG16LD4HC-50-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG16LD4HC-50B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG16LD4HC-100-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG16LD4HC-100B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG16LD4HC-150-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG16LD4HC-150B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG16LD4HC-200-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG16LD4HC-200B-B5	Size: 16 \| Bearing: Ball bushing bearing \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MHH-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MHH-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MHH-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MHH-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MHH-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MHH-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MHH-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MHH-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MHH-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MHH-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MHH-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MHH-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MHH-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MHH-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MHA-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MHA-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MHA-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MHA-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MHA-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MHA-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MHA-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MHA-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MHA-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MHA-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MHA-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MHA-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MHA-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MHA-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MHB-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MHB-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MHB-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MHB-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MHB-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MHB-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MHB-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MHB-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MHB-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MHB-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MHB-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MHB-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MHB-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MHB-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MHC-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MHC-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MHC-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MHC-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MHC-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MHC-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MHC-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MHC-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MHC-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MHC-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MHC-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MHC-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MHC-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MHC-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MDHH-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MDHH-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MDHH-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MDHH-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MDHH-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MDHH-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MDHH-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MDHH-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MDHH-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MDHH-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MDHH-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MDHH-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MDHH-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MDHH-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MDHA-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MDHA-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MDHA-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MDHA-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MDHA-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MDHA-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MDHA-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MDHA-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MDHA-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MDHA-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MDHA-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MDHA-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MDHA-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MDHA-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MDHB-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MDHB-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MDHB-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MDHB-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MDHB-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MDHB-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MDHB-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MDHB-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MDHB-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MDHB-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MDHB-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MDHB-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MDHB-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MDHB-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25MDHC-30-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25MDHC-30B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25MDHC-50-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25MDHC-50B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25MDHC-100-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25MDHC-100B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25MDHC-150-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25MDHC-150B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25MDHC-200-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25MDHC-200B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25MDHC-250-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25MDHC-250B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25MDHC-300-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25MDHC-300B-B5	Size: 25 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LHH-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LHH-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LHH-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LHH-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LHH-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LHH-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LHH-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LHH-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LHH-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LHH-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LHH-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LHH-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LHH-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LHH-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LHA-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LHA-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LHA-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LHA-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LHA-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LHA-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LHA-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LHA-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LHA-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LHA-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LHA-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LHA-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LHA-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LHA-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LHB-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LHB-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LHB-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LHB-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LHB-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LHB-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LHB-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LHB-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LHB-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LHB-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LHB-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LHB-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LHB-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LHB-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LHC-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LHC-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LHC-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LHC-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LHC-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LHC-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LHC-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LHC-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LHC-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LHC-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LHC-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LHC-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LHC-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LHC-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LDHH-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LDHH-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LDHH-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LDHH-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LDHH-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LDHH-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LDHH-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LDHH-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LDHH-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LDHH-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LDHH-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LDHH-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LDHH-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LDHH-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LDHA-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LDHA-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LDHA-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LDHA-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LDHA-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LDHA-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LDHA-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LDHA-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LDHA-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LDHA-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LDHA-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LDHA-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LDHA-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LDHA-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LDHB-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LDHB-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LDHB-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LDHB-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LDHB-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LDHB-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LDHB-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LDHB-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LDHB-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LDHB-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LDHB-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LDHB-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LDHB-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LDHB-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG25LDHC-30-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG25LDHC-30B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG25LDHC-50-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG25LDHC-50B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG25LDHC-100-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG25LDHC-100B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG25LDHC-150-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG25LDHC-150B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG25LDHC-200-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG25LDHC-200B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG25LDHC-250-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG25LDHC-250B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG25LDHC-300-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG25LDHC-300B-B5	Size: 25 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MHH-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MHH-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MHH-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MHH-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MHH-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MHH-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MHH-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MHH-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MHH-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MHH-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MHH-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MHH-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MHH-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MHH-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MHA-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MHA-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MHA-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MHA-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MHA-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MHA-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MHA-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MHA-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MHA-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MHA-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MHA-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MHA-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MHA-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MHA-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MHB-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MHB-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MHB-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MHB-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MHB-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MHB-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MHB-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MHB-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MHB-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MHB-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MHB-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MHB-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MHB-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MHB-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MHC-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MHC-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MHC-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MHC-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MHC-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MHC-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MHC-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MHC-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MHC-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MHC-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MHC-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MHC-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MHC-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MHC-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MDHH-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MDHH-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MDHH-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MDHH-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MDHH-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MDHH-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MDHH-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MDHH-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MDHH-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MDHH-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MDHH-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MDHH-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MDHH-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MDHH-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MDHA-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MDHA-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MDHA-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MDHA-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MDHA-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MDHA-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MDHA-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MDHA-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MDHA-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MDHA-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MDHA-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MDHA-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MDHA-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MDHA-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MDHB-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MDHB-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MDHB-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MDHB-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MDHB-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MDHB-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MDHB-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MDHB-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MDHB-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MDHB-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MDHB-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MDHB-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MDHB-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MDHB-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32MDHC-30-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32MDHC-30B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32MDHC-50-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32MDHC-50B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32MDHC-100-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32MDHC-100B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32MDHC-150-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32MDHC-150B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32MDHC-200-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32MDHC-200B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32MDHC-250-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32MDHC-250B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32MDHC-300-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32MDHC-300B-B5	Size: 32 \| Bearing: Slide bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LHH-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LHH-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LHH-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LHH-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LHH-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LHH-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LHH-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LHH-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LHH-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LHH-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LHH-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LHH-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LHH-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LHH-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LHA-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LHA-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LHA-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LHA-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LHA-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LHA-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LHA-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LHA-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LHA-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LHA-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LHA-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LHA-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LHA-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LHA-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LHB-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LHB-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LHB-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LHB-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LHB-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LHB-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LHB-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LHB-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LHB-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LHB-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LHB-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LHB-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LHB-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LHB-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LHC-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LHC-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LHC-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LHC-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LHC-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LHC-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LHC-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LHC-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LHC-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LHC-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LHC-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LHC-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LHC-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LHC-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LDHH-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LDHH-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LDHH-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LDHH-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LDHH-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LDHH-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LDHH-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LDHH-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LDHH-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LDHH-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LDHH-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LDHH-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LDHH-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LDHH-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LDHA-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LDHA-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LDHA-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LDHA-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LDHA-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LDHA-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LDHA-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LDHA-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LDHA-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LDHA-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LDHA-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LDHA-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LDHA-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LDHA-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LDHB-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LDHB-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LDHB-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LDHB-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LDHB-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LDHB-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LDHB-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LDHB-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LDHB-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LDHB-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LDHB-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LDHB-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LDHB-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LDHB-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQYG32LDHC-30-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQYG32LDHC-30B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQYG32LDHC-50-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQYG32LDHC-50B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQYG32LDHC-100-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQYG32LDHC-100B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQYG32LDHC-150-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQYG32LDHC-150B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQYG32LDHC-200-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQYG32LDHC-200B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQYG32LDHC-250-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQYG32LDHC-250B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQYG32LDHC-300-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQYG32LDHC-300B-B5	Size: 32 \| Bearing: Ball bushing bearing \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC EQYG Guided Rod Electric Actuator, Controller Integrated
