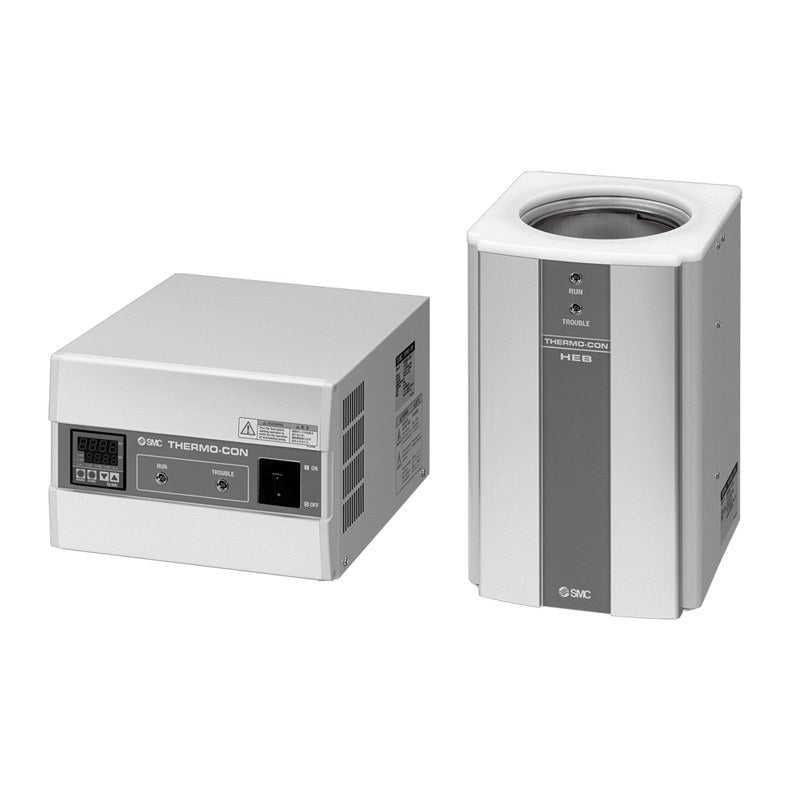

SMC HEB Peltier Thermo-Bath (Round Bath, Water-Cooled, 140 W)

SMC HEB Peltier Thermo-Bath (Round Bath, Water-Cooled, 140 W)

SMC HEB series Peltier-type thermo-bath that directly controls the liquid temperature in a round bath, ordered as a set or as separate bath and controller.

Key features

  • Peltier cooling/heating with PID control: temperature stability +/-0.01 C, temperature distribution +/-0.02 C
  • Set temperature range -15.0 to 60.0 C (5 to 60 C with water), 140 W cooling / 300 W heating
  • Round bath inner diameter 130 mm x liquid level 188 mm; bath water-cooled, controller air-cooled
  • Set includes bath and controller; communication A RS-485 or B RS-232C
  • Bath connection Rc1/4 standard, N NPT1/4 option as suffix

Specifications

Cooling element Thermo-module (Peltier)
Control method Cooling/heating auto switching PID
Bath liquid Water, Fluorinert FC-3283, GALDEN HT135/HT200, 30% ethylene glycol
Set temperature range -15.0 to 60.0 C (water: 5 to 60 C)
Cooling / heating capacity 140 W / 300 W (water)
Temperature stability +/-0.01 C
Bath size Inner dia. 130 mm x level 188 mm
Facility water 10 to 35 C, max. 0.5 MPa, 3 to 5 L/min, Rc1/4
Power supply 1-phase AC100-240V, 50/60Hz
Standards CE/UKCA, UL (NRTL)
Source SMC Korea thermo-chiller catalog, HEB section (SMCKR_HEB.pdf), p. 569-570 (PDF p. 4-5)
HEBC002-WA10 Configuration: Set (bath + controller) | Communication: RS-485 | Mass: Bath 8.5 kg, controller 6.5 kg
HEBC002-WB10 Configuration: Set (bath + controller) | Communication: RS-232C | Mass: Bath 8.5 kg, controller 6.5 kg
HEBC002-HW10 Configuration: Bath only | Communication: Via controller | Mass: Approx. 8.5 kg
HEBC002-CA Configuration: Controller only | Communication: RS-485 | Mass: Approx. 6.5 kg
HEBC002-CB Configuration: Controller only | Communication: RS-232C | Mass: Approx. 6.5 kg
ChillersSMC
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HEB Peltier Thermo-Bath (Round Bath, Water-Cooled, 140 W)

Brand SMC·Chillers

Available part numbers (5)

HEBC002-WA10, HEBC002-WB10, HEBC002-HW10, HEBC002-CA, HEBC002-CB

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HEBC002-WA10Configuration: Set (bath + controller) | Communication: RS-485 | Mass: Bath 8.5 kg, controller 6.5 kg
HEBC002-WB10Configuration: Set (bath + controller) | Communication: RS-232C | Mass: Bath 8.5 kg, controller 6.5 kg
HEBC002-HW10Configuration: Bath only | Communication: Via controller | Mass: Approx. 8.5 kg
HEBC002-CAConfiguration: Controller only | Communication: RS-485 | Mass: Approx. 6.5 kg
HEBC002-CBConfiguration: Controller only | Communication: RS-232C | Mass: Approx. 6.5 kg
