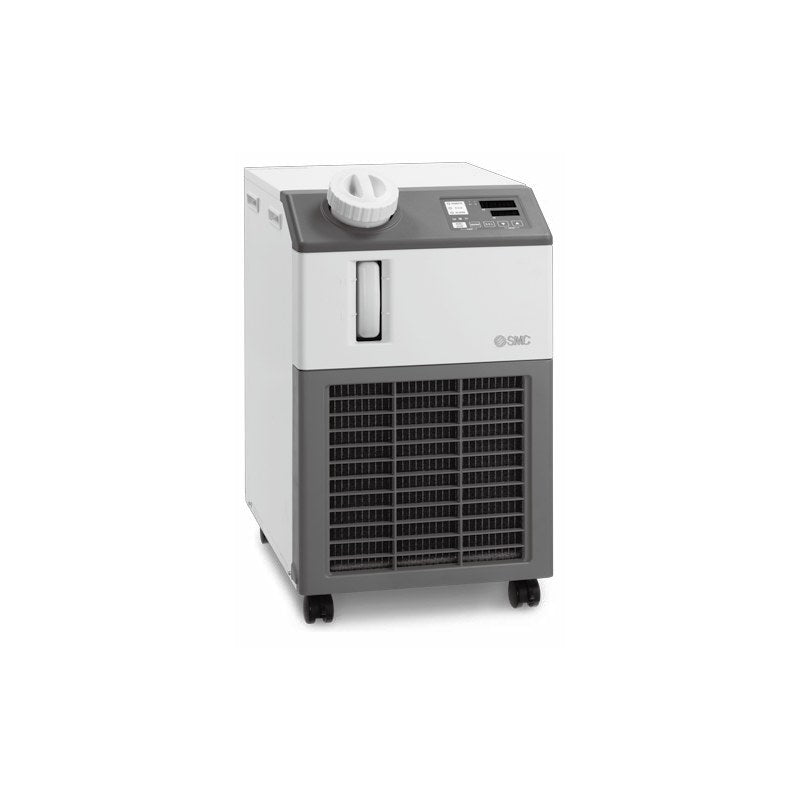

SMC HRSF Thermo-Chiller (Standard Type, 1-Phase 200-230V, 1.1-5.9 kW)

SMC HRSF Thermo-Chiller (Standard Type, 1-Phase 200-230V, 1.1-5.9 kW)

SMC HRSF series standard-type thermo-chiller using low-GWP R454C refrigerant, air-cooled or water-cooled, for single-phase AC200 to 230V supply.

Key features

  • Low-GWP refrigerant R454C (HFO/HFC, GWP 146) with PID control and ±0.1°C temperature stability
  • Cooling capacity from 1100/1300 W (012) to 4900/5900 W (060); 050 available air-cooled only
  • Set temperature range 5 to 40°C, approx. 5 L tank, Rc1/2 circulating fluid ports (water-cooled facility water Rc3/8, Rc1/2 for 060)
  • Rc threads standard; F (G thread) and N (NPT) conversion-fitting versions available
  • Options as suffix: B earth leakage breaker, J auto water fill, M DI water piping, T high-pressure pump, G high-temperature environment (air-cooled 012-024)
  • CE/UKCA marked and Intertek (UL) listed

Specifications

Refrigerant R454C (HFO/HFC, GWP 146)
Control method PID control
Set temperature range 5 to 40°C
Temperature stability ±0.1°C
Circulating fluid Clear water, 15% ethylene glycol aqueous solution
Power supply 1-phase AC200 to 230V (50/60Hz), ±10%
Tank capacity Approx. 5 L
Circulating fluid port Rc1/2
Pipe thread Rc (F: G, N: NPT conversion fittings optional)
Ambient conditions 5 to 40°C, 30 to 70% RH, altitude below 3000 m
Source SMC Korea catalog CAT.KS40-77A (SMCKR_HRSF.pdf), p. 2-3 (PDF p. 3-4)
HRSF012-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 1100/1300 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 0.9/1.0 kVA | Mass: 43 kg
HRSF018-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 1700/1900 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 0.9/1.0 kVA | Mass: 43 kg
HRSF024-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 2100/2400 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 1.0/1.2 kVA | Mass: 43 kg
HRSF030-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 2600/3200 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 1.3/1.5 kVA | Mass: 47 kg
HRSF050-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 4700/5100 W | Rated pump flow (50/60Hz): 23/28 L/min | Rated power (50/60Hz): 1.9/2.4 kVA | Mass: 73 kg
HRSF060-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 4900/5900 W | Rated pump flow (50/60Hz): 23/28 L/min | Rated power (50/60Hz): 2.0/2.5 kVA | Mass: 73 kg
HRSF012-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 1100/1300 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 0.9/1.0 kVA | Mass: 43 kg
HRSF018-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 1700/1900 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 0.9/1.0 kVA | Mass: 43 kg
HRSF024-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 2100/2400 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 1.0/1.2 kVA | Mass: 43 kg
HRSF030-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 2600/3200 W | Rated pump flow (50/60Hz): 7/7 L/min | Rated power (50/60Hz): 1.2/1.4 kVA | Mass: 46 kg
HRSF060-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 4900/5900 W | Rated pump flow (50/60Hz): 23/28 L/min | Rated power (50/60Hz): 1.8/2.4 kVA | Mass: 67 kg
