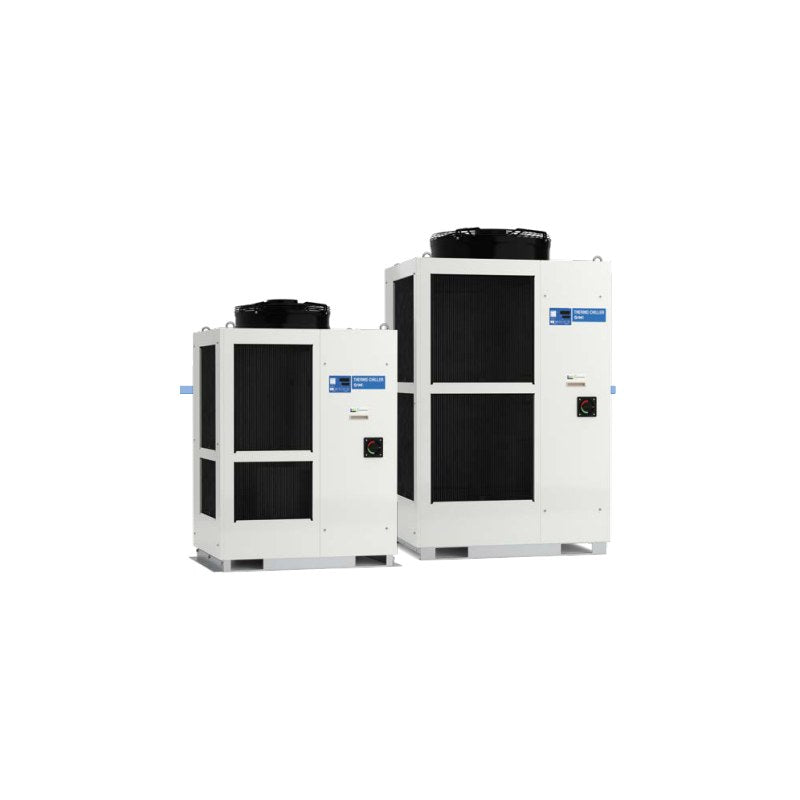

SMC HRSHF Thermo-Chiller (Low GWP R32, Inverter Type, 15.7-30.5 kW)

SMC HRSHF Thermo-Chiller (Low GWP R32, Inverter Type, 15.7-30.5 kW)

SMC HRSHF series inverter-type thermo-chiller using low-GWP R32 refrigerant, air-cooled or water-cooled, 15.7 to 30.5 kW for 3-phase 200V or 400V class supply.

Key features

  • R32 refrigerant (GWP 675) meeting US and Canadian refrigerant regulations
  • Cooling capacity 15.7 to 30.5 kW air-cooled (150-300) or 16.5 to 25 kW water-cooled (150-250); 400V air-cooled in 250/300 only
  • Set temperature range 5 to 35°C with ±0.1°C stability, inverter pump with pressure control, automatic water fill built in
  • Rc1 circulating fluid ports standard; F (G thread) and N (NPT) conversion-fitting versions available
  • Options as suffix: A casters/adjuster feet, B/B1 earth leakage breaker (/handle), K water fill port, M DI water piping, P cooling capacity UP (HRSHF200-A-20 only)
  • IPX4 enclosure; 400V versions have earth leakage breaker with handle (B1) as standard

Specifications

Refrigerant R32 (HFC, GWP 675)
Control method PID control
Set temperature range 5 to 35°C
Temperature stability ±0.1°C
Rated pump flow 45 L/min (0.45 MPa); 125 L/min (250/300 air-cooled)
Tank capacity 42 L (60 L for 250/300 air-cooled)
Circulating fluid port Rc1 (drain Rc3/4)
Circulating fluid Clear water, 15-40% ethylene glycol, DI water
Pipe thread Rc (F: G, N: NPT conversion fittings optional)
Source SMC Korea catalog CAT.KS40-86B (SMCKR_HRSHF.pdf), p. 9-12 (PDF p. 10-13)
HRSHF150-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 15.7 kW | Rated power: 5.2 (5.9) kW (kVA) | Mass: approx. 223 kg
HRSHF200-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 20.5 kW | Rated power: 7.0 (7.8) kW (kVA) | Mass: approx. 223 kg
HRSHF250-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 25 kW | Rated power: 9.4 (10.0) kW (kVA) | Mass: approx. 288 kg
HRSHF300-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 30.5 kW | Rated power: 11.3 (12.0) kW (kVA) | Mass: approx. 288 kg
HRSHF150-W-20 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 16.5 kW | Rated power: 5.0 (5.4) kW (kVA) | Mass: approx. 191 kg
HRSHF200-W-20 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 20.6 kW | Rated power: 5.8 (6.3) kW (kVA) | Mass: approx. 191 kg
HRSHF250-W-20 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 25 kW | Rated power: 7.4 (7.9) kW (kVA) | Mass: approx. 191 kg
HRSHF250-A-40 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 25 kW | Rated power: 9.9 (10.9) kW (kVA) | Mass: approx. 288 kg
HRSHF300-A-40 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 30.5 kW | Rated power: 11.8 (12.5) kW (kVA) | Mass: approx. 288 kg
HRSHF150-W-40 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 16.5 kW | Rated power: 4.6 (5.2) kW (kVA) | Mass: approx. 191 kg
HRSHF200-W-40 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 20.6 kW | Rated power: 5.8 (6.3) kW (kVA) | Mass: approx. 191 kg
HRSHF250-W-40 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 25 kW | Rated power: 6.5 (7.2) kW (kVA) | Mass: approx. 191 kg
ChillersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRSHF Thermo-Chiller (Low GWP R32, Inverter Type, 15.7-30.5 kW)

Brand SMC·Chillers

Available part numbers (12)

HRSHF150-A-20, HRSHF200-A-20, HRSHF250-A-20, HRSHF300-A-20, HRSHF150-W-20, HRSHF200-W-20, HRSHF250-W-20, HRSHF250-A-40, HRSHF300-A-40, HRSHF150-W-40 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRSHF150-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 15.7 kW | Rated power: 5.2 (5.9) kW (kVA) | Mass: approx. 223 kg
HRSHF200-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 20.5 kW | Rated power: 7.0 (7.8) kW (kVA) | Mass: approx. 223 kg
HRSHF250-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 25 kW | Rated power: 9.4 (10.0) kW (kVA) | Mass: approx. 288 kg
HRSHF300-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 30.5 kW | Rated power: 11.3 (12.0) kW (kVA) | Mass: approx. 288 kg
HRSHF150-W-20Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 16.5 kW | Rated power: 5.0 (5.4) kW (kVA) | Mass: approx. 191 kg
HRSHF200-W-20Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 20.6 kW | Rated power: 5.8 (6.3) kW (kVA) | Mass: approx. 191 kg
HRSHF250-W-20Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V 50Hz / 200-230V 60Hz | Cooling capacity: 25 kW | Rated power: 7.4 (7.9) kW (kVA) | Mass: approx. 191 kg
HRSHF250-A-40Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 25 kW | Rated power: 9.9 (10.9) kW (kVA) | Mass: approx. 288 kg
HRSHF300-A-40Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 30.5 kW | Rated power: 11.8 (12.5) kW (kVA) | Mass: approx. 288 kg
HRSHF150-W-40Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 16.5 kW | Rated power: 4.6 (5.2) kW (kVA) | Mass: approx. 191 kg
HRSHF200-W-40Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 20.6 kW | Rated power: 5.8 (6.3) kW (kVA) | Mass: approx. 191 kg
HRSHF250-W-40Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V 50Hz / 380-480V 60Hz | Cooling capacity: 25 kW | Rated power: 6.5 (7.2) kW (kVA) | Mass: approx. 191 kg
