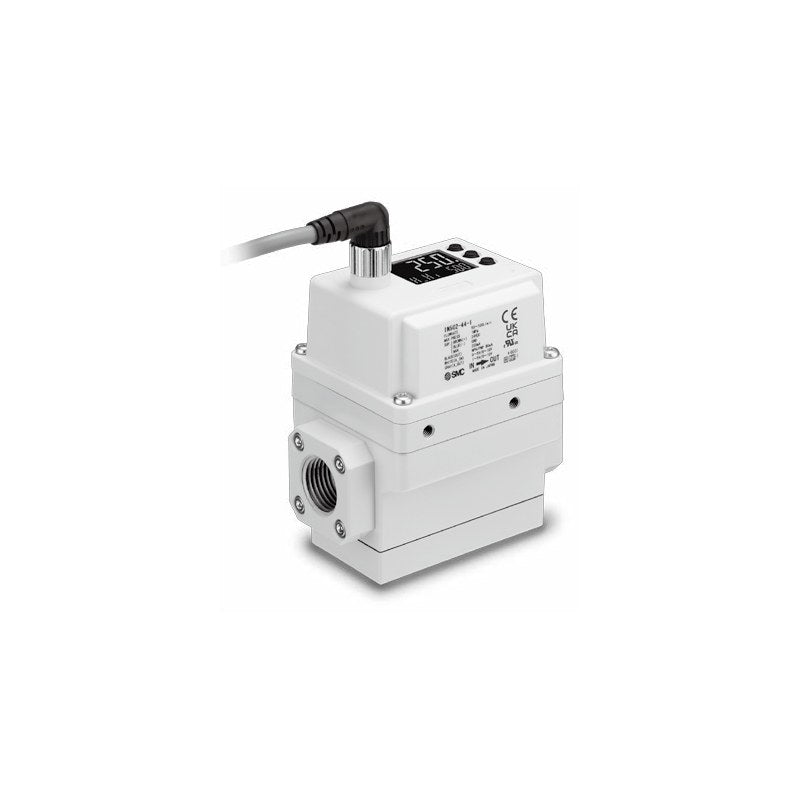

SMC IN502-44/45/46 Air Flow Controller (50 to 2000 L/min)

SMC IN502-44/45/46 Air Flow Controller (50 to 2000 L/min)

SMC IN502-44/45/46 air flow controller that automatically adjusts dry air or N2 flow up to 2000 L/min to follow an analog or IO-Link flow command.

Key features

  • Rated control flow 50-500, 100-1000 and 200-2000 L/min; control accuracy ±5% F.S.
  • Settling time 0.5 s or less (within ±5% F.S. of command)
  • Analog voltage or current I/O with switch output, optionally IO-Link
  • Selectable power-off behavior: flow zero or flow hold
  • 3-screen LCD; Rc1/2 ports; M12 lead wires EX500-AP / EX9-AC and brackets ZS-56-A/B ordered separately

Specifications

Fluid Air, N2
Fluid temperature 0 to 50°C
Supply pressure 1.0 MPa or less
Load pressure 0.1 to 0.6 MPa
Proof pressure 1.0 MPa
Power supply 24 VDC ±10%, 0.2 A or less
Port size Rc1/2
Enclosure IP65
Mass Approx. 760 g
Standards CE/UKCA, UL/CSA
Source SMC Korea catalog CAT.KS100-166A (SMCKR_IN502.pdf), PDF p. 6-7
IN502-44-1 Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-1A Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-1B Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-2 Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-2A Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-2B Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-3 Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-3A Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-3B Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-4 Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-4A Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-4B Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-5 Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-5A Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-5B Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-6 Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-6A Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-6B Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-7 Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-7A Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-7B Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-8 Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-8A Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-8B Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-9 Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-9A Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-9B Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-10 Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-10A Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-10B Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-11 Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-11A Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-11B Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-12 Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-12A Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-12B Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-13 Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-13A Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-13B Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-14 Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-14A Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-14B Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-15 Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-15A Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-15B Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-16 Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-16A Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-16B Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-1 Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-1A Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-1B Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-2 Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-2A Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-2B Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-3 Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-3A Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-3B Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-4 Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-4A Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-4B Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-5 Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-5A Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-5B Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-6 Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-6A Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-6B Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-7 Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-7A Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-7B Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-8 Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-8A Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-8B Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-9 Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-9A Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-9B Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-10 Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-10A Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-10B Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-11 Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-11A Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-11B Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-12 Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-12A Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-12B Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-13 Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-13A Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-13B Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-14 Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-14A Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-14B Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-15 Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-15A Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-15B Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-16 Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-16A Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-16B Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-1 Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-1A Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-1B Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-2 Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-2A Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-2B Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-3 Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-3A Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-3B Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-4 Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-4A Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-4B Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-5 Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-5A Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-5B Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-6 Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-6A Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-6B Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-7 Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-7A Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-7B Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-8 Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-8A Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-8B Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-9 Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-9A Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-9B Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-10 Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-10A Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-10B Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-11 Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-11A Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-11B Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-12 Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-12A Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-12B Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-13 Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-13A Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-13B Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-14 Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-14A Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-14B Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-15 Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-15A Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-15B Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-16 Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-16A Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-16B Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
Flow SwitchesSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC IN502-44/45/46 Air Flow Controller (50 to 2000 L/min)

Brand SMC·Flow Switches

Available part numbers (144)

IN502-44-1, IN502-44-1A, IN502-44-1B, IN502-44-2, IN502-44-2A, IN502-44-2B, IN502-44-3, IN502-44-3A, IN502-44-3B, IN502-44-4 + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IN502-44-1Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-1AFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-1BFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-2Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-2AFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-2BFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-3Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-3AFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-3BFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-4Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-4AFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-4BFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-5Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-5AFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-5BFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-6Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-6AFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-6BFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-7Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-7AFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-44-7BFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-8Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-44-8AFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-44-8BFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-44-9Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-9AFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-9BFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-10Flow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-10AFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-10BFlow range: 50 to 500 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-11Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-11AFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-11BFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-12Flow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-12AFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-12BFlow range: 50 to 500 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-13Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-13AFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-13BFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-14Flow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-14AFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-14BFlow range: 50 to 500 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-15Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-15AFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-44-15BFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-44-16Flow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-44-16AFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-44-16BFlow range: 50 to 500 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-1Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-1AFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-1BFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-2Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-2AFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-2BFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-3Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-3AFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-3BFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-4Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-4AFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-4BFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-5Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-5AFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-5BFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-6Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-6AFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-6BFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-7Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-7AFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-45-7BFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-8Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-45-8AFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-45-8BFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-45-9Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-9AFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-9BFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-10Flow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-10AFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-10BFlow range: 100 to 1000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-11Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-11AFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-11BFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-12Flow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-12AFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-12BFlow range: 100 to 1000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-13Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-13AFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-13BFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-14Flow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-14AFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-14BFlow range: 100 to 1000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-15Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-15AFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-45-15BFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-45-16Flow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-45-16AFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-45-16BFlow range: 100 to 1000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-1Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-1AFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-1BFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-2Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-2AFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-2BFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-3Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-3AFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-3BFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-4Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-4AFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-4BFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-5Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-5AFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-5BFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-6Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-6AFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-6BFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-7Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-7AFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: White vaseline
IN502-46-7BFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-8Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Low-dew-point grease
IN502-46-8AFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: White vaseline
IN502-46-8BFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow zero | Grease: Food-grade grease
IN502-46-9Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-9AFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-9BFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-10Flow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-10AFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-10BFlow range: 200 to 2000 L/min | I/O: Analog voltage + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-11Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-11AFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-11BFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-12Flow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-12AFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-12BFlow range: 200 to 2000 L/min | I/O: Analog current + switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-13Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-13AFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-13BFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-14Flow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-14AFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-14BFlow range: 200 to 2000 L/min | I/O: Analog voltage + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-15Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-15AFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: White vaseline
IN502-46-15BFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: SI fixed | Power-off action: Flow hold | Grease: Food-grade grease
IN502-46-16Flow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Low-dew-point grease
IN502-46-16AFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: White vaseline
IN502-46-16BFlow range: 200 to 2000 L/min | I/O: Analog current + IO-Link/switch | Units: Unit selection | Power-off action: Flow hold | Grease: Food-grade grease

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Sensors →
