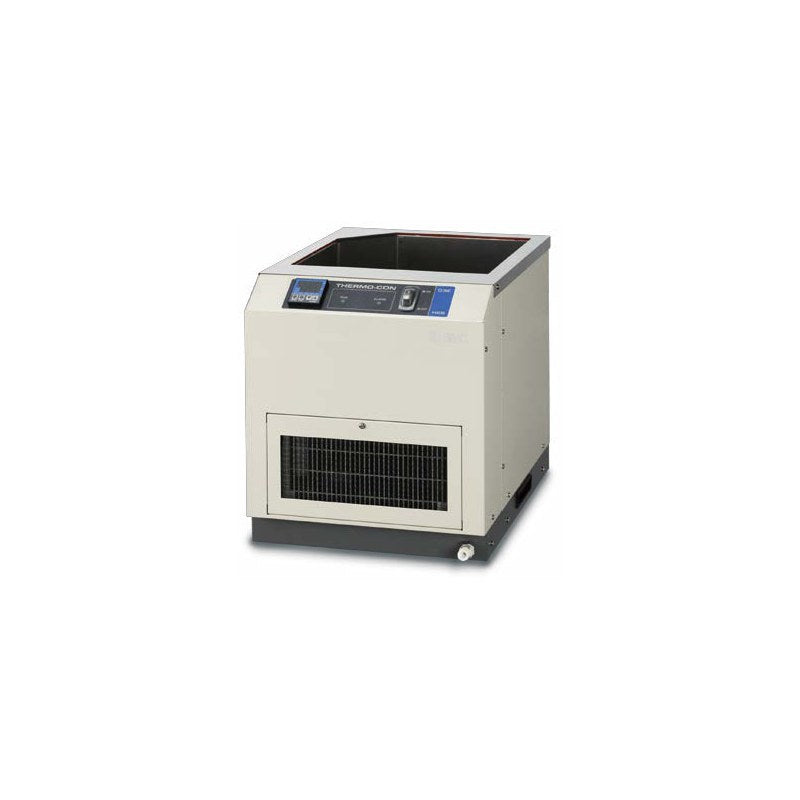

SMC INR-244 Peltier Thermo-Bath (Made-to-Order, Square/Round, 140-320 W)

SMC INR-244 Peltier Thermo-Bath (Made-to-Order, Square/Round, 140-320 W)

SMC made-to-order Peltier-type thermo-baths that precisely control liquid temperature in the bath, in square water-cooled, square air-cooled and round water-cooled versions.

Key features

  • Peltier element with low vibration and high precision; temperature stability +/-0.02 to 0.03 C
  • Built-in temperature sensor measures liquid directly; built-in circulation pump agitates for uniform bath temperature
  • Drain port allows liquid discharge without lifting the unit
  • Square bath 10, 23 or 39 L (water-cooled), 17 L (air-cooled INR-244-757, approx. 22 kg); round 5.5 L with separate controller
  • Applications: sample/reagent temperature control, MO-CVD and diffusion furnace source gas temperature control
  • CE/UKCA marked and RoHS; UL (NRTL) on square water-cooled models

Specifications

Cooling element Peltier element
Bath liquid Water, ethylene glycol, fluorinated fluid (square type: room temp. only)
Temperature stability +/-0.03 C (square), +/-0.02 C (round)
Rated current 3.5 to 6 A
Capacity condition Facility water 20 C, 5 L/min, ambient 25 C
Category Made-to-order product
Source SMC Korea thermo-chiller catalog, made-to-order thermo-bath (SMCKR_INR.pdf), p. 576-577 (PDF p. 1-2)
INR-244-745 Type: Square, water-cooled | Cooling capacity: 140 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-733 Type: Square, water-cooled | Cooling capacity: 140 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-747 Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-736 Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-746 Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 23 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-734 Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 23 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-749 Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 39 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-748 Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 39 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-757 Type: Square, air-cooled | Cooling capacity: 220 W | Tank capacity: Approx. 17 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-696A Type: Round, water-cooled | Cooling capacity: 280 W | Tank capacity: Approx. 5.5 L | Liquid temperature range: -15 to 60 C | Communication: RS-485 | Power supply: AC200-220V
ChillersSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC INR-244 Peltier Thermo-Bath (Made-to-Order, Square/Round, 140-320 W)

Brand SMC·Chillers

Available part numbers (10)

INR-244-745, INR-244-733, INR-244-747, INR-244-736, INR-244-746, INR-244-734, INR-244-749, INR-244-748, INR-244-757, INR-244-696A

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
INR-244-745Type: Square, water-cooled | Cooling capacity: 140 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-733Type: Square, water-cooled | Cooling capacity: 140 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-747Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-736Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 10 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-746Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 23 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-734Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 23 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-749Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 39 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-748Type: Square, water-cooled | Cooling capacity: 320 W | Tank capacity: Approx. 39 L | Liquid temperature range: 0 to 60 C | Communication: RS-485 | Power supply: AC100-240V
INR-244-757Type: Square, air-cooled | Cooling capacity: 220 W | Tank capacity: Approx. 17 L | Liquid temperature range: 0 to 60 C | Communication: RS-232C | Power supply: AC100-240V
INR-244-696AType: Round, water-cooled | Cooling capacity: 280 W | Tank capacity: Approx. 5.5 L | Liquid temperature range: -15 to 60 C | Communication: RS-485 | Power supply: AC200-220V
